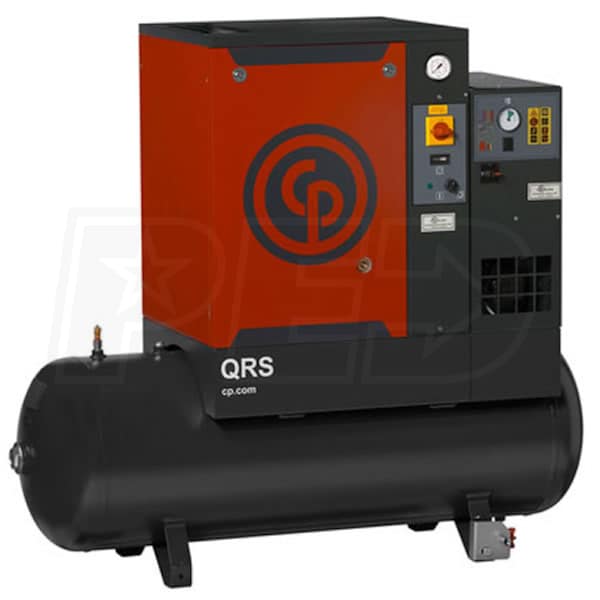

Chicago Pneumatic 15-HP 120-Gallon Rotary Screw Air Compressor (208/230/460V 3-Phase 150PSI) w/Dryer

Model:

QRS15.0HPD

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Chicago Pneumatic 15-HP 120-Gallon Rotary Screw Air Compressor (208/230/460V 3-Phase 150PSI) w/Dryer
Chicago Pneumatic 15-HP 120-Gallon Rotary Screw Air Compressor (208/230/460V 3-Phase 150PSI) w/Dryer
Model: QRS15.0HPD
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Voltage

208-230/460 Volt AC

Phase

3-Phase

CFM

47

Tank Size

120

  • Quiet, 15 HP Rotary Screw Power With Refrigerated Air Dryer
  • Ideal for applications where clean, dry compressed air is needed
  • Environmentally approved R134a refrigerant; automatic drain
  • Dryer has 6 foot electrical cord for connection to wall outlet
  • Dryer voltage is 1/60/115v; thermal regulator on condenser fan
  • Reliable And Versatile
  • 65dBA easily meets the demands of body shops, repair bays, etc.
  • Continuous operating capability; 37scfm @ 125psi, 33scfm @ 150psi
  • Tri-voltage, TEFC motor with across-the-line motor starter
  • Simple, Low Cost Maintenance
  • Rotary Screw technology has no wearing parts
  • No valves, bushings, piston rings or rod inserts to service
  • Factory filled with QRS-4000 lubricant for 4,000 hrs of operation
  • An adjustable V-Belt system drives the compressor
  • Easy And Efficient Operation
  • Air discharge pressure gauge; On/Off switch with lockout feature
  • Hour meter and high oil temperature shut down light
  • Reset button for high oil temperature shutdown and motor overload
  • 5 Year Factory Warranty
  • Authorized startup required for 5 year certification
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

QRS15.0HPD
specs product image PID-2015
Engine
HP
15
Motor
Voltage
208-230/460 Volt AC
Phase
3-Phase
dBA Learn More
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
68
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
47
CFM Rated @
125 PSI
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
150 PSI
Oil Sight Glass
No
Pump Type
Rotary
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
120 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Air Dryer
Yes
Overview
Weight
960 Pounds
Certification
ASME/CRN
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
73 Inches
Product Width
24 Inches
Product Height
58 Inches
Power Type
Electric
