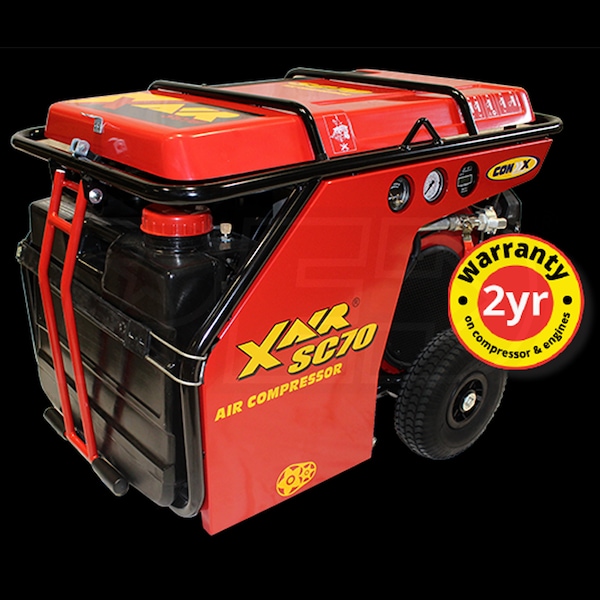

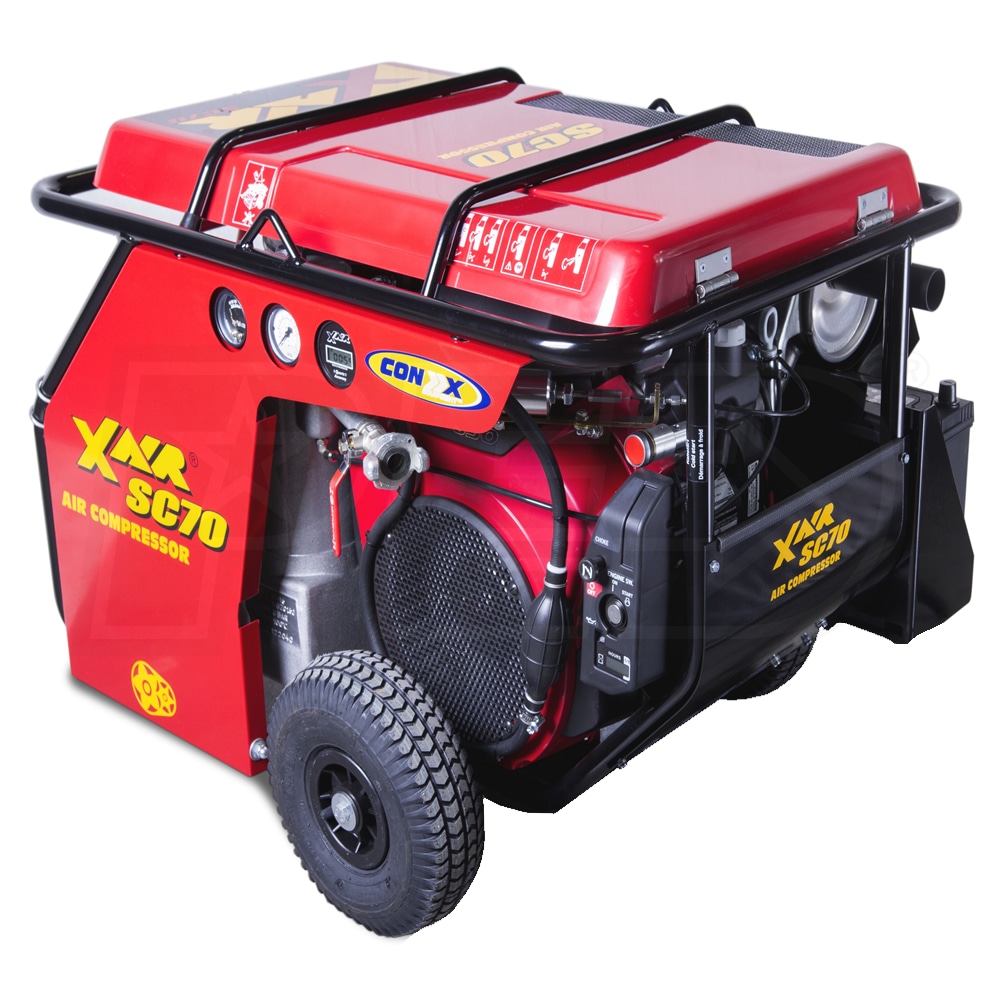

X Air by Con X Equipment SC70 20-HP Portable Rotary Screw Air Compressor w/ Honda GX630 Engine

Model:

SC70

Write A Review
$10,199.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 6-8 Weeks

X Air by Con X Equipment SC70 20-HP Portable Rotary Screw Air Compressor w/ Honda GX630 Engine
X Air by Con X Equipment SC70 20-HP Portable Rotary Screw Air Compressor w/ Honda GX630 Engine
Model: SC70
$10,199.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Engine Brand

Honda GX

CFM

70

Tank Size

0

  • Small Investment, Big Return Compact Rotary Compressor
  • X AIR compressors excel in reliability and energy efficiency
  • Ideal for sandblasting, breakers, painting, chipping hammers, graffiti removal, nail guns, staple guns and much more...
  • XAIR SC70 Oil Injected Rotary Screw
  • Dual XPZ drive belts and 1.1-gallon oil capacity
  • Extremely durable, efficient and high performance air end
  • Airflow & pressure are constant and continuous, no need for an air tank
  • Remarkably Lightweight, Quiet & Portable

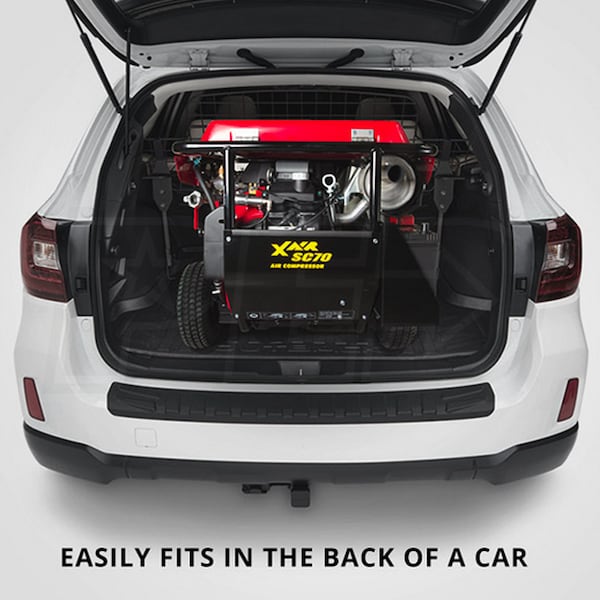

  • Easily fits in the back of a car for easy transporting
  • Weighs 298lbs; 74 dBA sound level @ 23 feet
  • Fits through the smallest of openings, yet is powerful enough for the largest of job sites
  • Commercial Grade 20.8-HP Honda GX630 Engine w/ Electric Start
  • 5.3-gallon gas tank capacity for longer work times
  • Precision engineered components result in lower vibration
  • Dependable commercial grade engine starts easily, runs quietly
  • MONITAIR - Power ON Demand
  • Engine idles until power is required, making it very economical
  • Continuous variable idle control gives you very fast throttle response
  • Can operate a 90 lbs class breaker & doesn't need to be towed

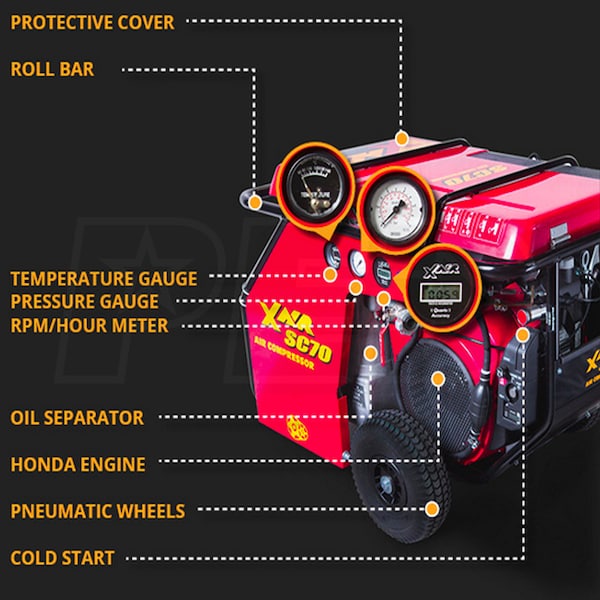

  • Air & Oil Cooling w/ Automatic Full Safety Shutdown System
  • Includes temperature, pressure gauge and RPM/hour meter
  • Full safety shutdown on compressor and engine
  • Protects against low engine oil and high temperature of air end
  • Rugged Steel Roll Bar Construction Frame w/ Lifting Hooks
  • Side panels all finished with lasting powder coat paint
  • Perfect for construction, rental industry & public works pros
  • Retractable handle and pneumatic tires makes it manually transportable by one person

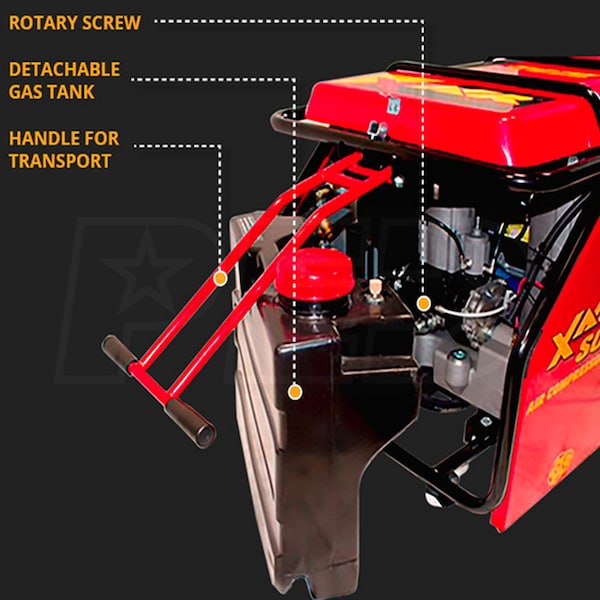

  • Protective Cover & Transport Handle
  • Removable gas tank reduces transport weight and makes fill up easy
  • Handles harshest and most demanding environments without any issues

Specifications

SC70
specs product image PID-99445
General Information
Product Category
Air Compressor - Portable
Engine
HP
20.8
Auto Idle
Yes
Engine Brand
Honda GX
Starting System
12-Volt Key Start
Battery Included
Yes
Engine Low Oil Shut-off
Yes
Fuel Tank Size
5.3
Consumer Engine Warranty
3
Commercial Engine Warranty
3
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
70
CFM Rated @
100 PSI
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
125 PSI
Pump Type
Rotary
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Duty Cycle
100%
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
Yes
Tank
Tank Size
0 Gallons
Tank Included
No
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Portable
Weight
298 Pounds
CARB Compliant
Yes
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
34 Inches
Product Width
26 Inches
Product Height
23 Inches
Power Type
Gas
