Features
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- 23 HP/726cc Kawasaki FR691V V-Twin OHV 4-Cycle Engine
- 90° V-twin achieves a perfect primary balance
- Internally vented carburetor with fuel shut-off solenoid
- Automatic compression release for easier starts & less wear
- Dual Hydro-Gear™ 2200 (EZT™) Hydrostatic Drive System
- Fan cooled 10cc pumps and wheel motors on each drive wheel
- Provides optimal torque and speeds up to 7 MPH
- 54-Inch, Fabricated (Welded) 3-Blade Mower Deck
- 15 cut heights ranging from 1 - 4.5"
- Features Cub Cadet's best-in-class Aeroforce Cutting System
- Optimizes airflow and suction for better bagging and cut quality
- ZT1 54P Additional High-Performance Features
- Steel fenders for added protection
- Larger rear wheels and front caster suspension improve stability
- Includes floor mat for vibration reduction and removable floor pan
- A Real Steel
- Frame is designed using durable squared tubular steel
- Reduces chassis flex for a more even cut and increased stability
- Automotive-Inspired Seat
- Ergonomic, comfortable 20" high-back seat with suspension
- Fully adjustable and optimized to reduce riders fatigue
- Adjustable Lap Bars
- Accommodates riders of all shapes and sizes
- Easily and quickly set lap bars into 1 of 3 positions
- Mow-in-Reverse
- Helps you quickly position mower to cut trickier spots
- LED The Way
- Dual-LED headlights for unmatched visibility in low light
Specifications
ZT1 54P
Engine
Engine Brand
Kawasaki FR691V
Starting System
12-Volt Key Start
Engine Cycle
4-Cycle
HP
23 HP
CC
726 CCs
Fuel Tank Size
3.5 Gallons
Engine Cylinders
2 Cylinders
Motor
Battery Voltage
12 Volts
Battery Type
Lead Acid
Battery Included
Included
Overview
Weight
600 Pounds
CARB Compliant
No
Consumer Warranty
3 Years
Power Type
Gas
UPC
043033597468
Additional Model Numbers
17AIEACM010, ZT1 54P
Deck
Cutting Options
3-in-1 (Side-Discharge/Bag/Mulch)
Deck Material
11-Gauge
Deck Construction
Welded
Blades
3 Blades
Deck Positions
15 Positions
Cutting Width
54 Inches
Cutting Height
1 - 4.5"
Deck Lift System
Manual Foot Operated
Engagement
PTO Electric
Deck Drive
Belt
Drive
Speeds
Variable
Maximum Speed
7 MPH
Maximum Reverse Speed
3.5 MPH
Transmission Type
Hydrostatic
Drive System
Hydro-Gear EZT
Accessories
Rear Bagger
Sold Separately
Engine Guard
Yes
Seat Type
High Back
Hour Meter
Sold Separately
Arm Rests
Sold Separately
Hitch
Included
Mulcher Kit
Sold Separately
Headlights
Included
Washout Port
No
Wheels
Front Tire Size
11 x 6 Inch
Rear Tire Size
20 x 12 Inch
Tire Type
Pneumatic Wheels
Reviews
(6)
Cub Cadet ZT1 54P Reviews & Ratings
How-To Articles
Manuals
ZT1 54P
Installation Video
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

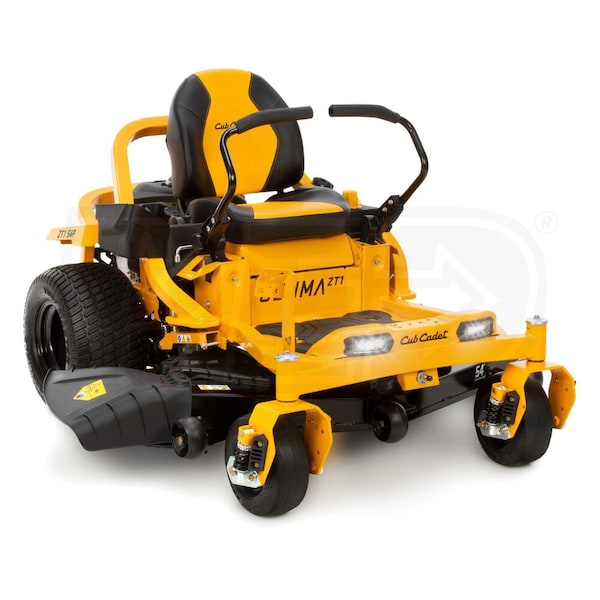

Cub Cadet Ultima ZT1 54P (54") 23HP Kawasaki Zero Turn Mower
