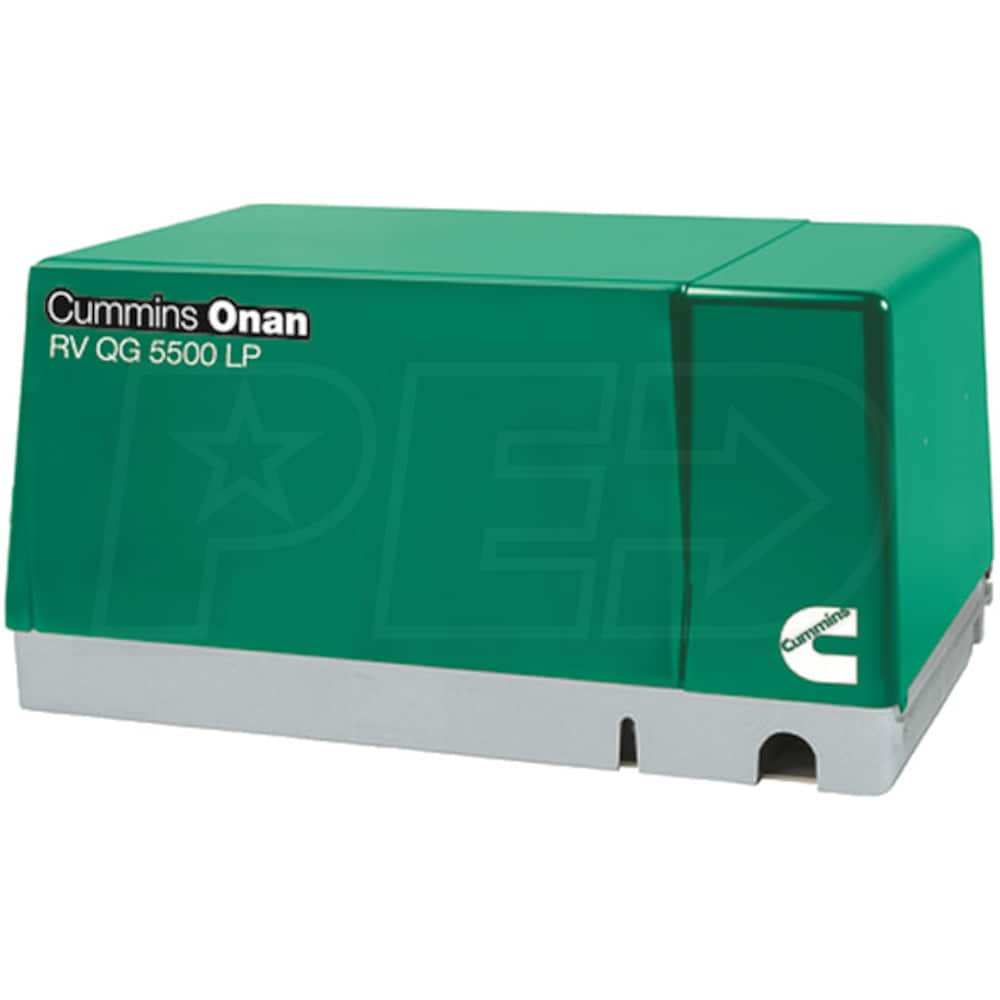

Cummins Onan RV QG 5500 LP - 5.5HGJAB-1119 - 5.5kW RV Generator (LP)

Model:

A063B871

Write A Review
$5,558.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Thursday, Dec 26th
Shipping to60601
synchrony card logo
$98 / Month
With our 82 months 10.99% APR*
82 fixed monthly payments required.
Cummins Onan RV QG 5500 LP - 5.5HGJAB-1119 - 5.5kW RV Generator (LP)
Cummins Onan RV QG 5500 LP - 5.5HGJAB-1119 - 5.5kW RV Generator (LP)
Model: A063B871
$5,558.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Recreational

Style

RV

Run Watts

5,500 Rated Watts

Voltage

120 Single-Phase

Fuel

LP

Engine

Cummins Onan



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
    For Additional Models - Please Call Us @ 1-800-800-3317
  • Cummins 5.5 kW LP Powered RV Generator (5.5 HGJAB-1119)
  • More power for medium size RVs (30A & 20A Breakers)
  • Runs two 13,500 BTU AC units w/ 1100 additional watts available
  • Cummins Onan 4-Cycle OHV V-Twin Engine (.8 Gal/H @ 1/2 Load)
  • Quietest in its class w/ excellent fuel efficiency
  • Decibel Rating @ 3m: 67 db(A)
  • Microprocessor Controlled
  • Digital voltage regulator prevents damaging voltage spikes
  • Self-diagnostic capability to simplify troubleshooting
  • Sound-Attenuating Enclosure w/ Thru Flow Cooling System
  • Lowers noise levels while providing cross-flow cooling
  • Integral USDA Forest Service-approved spark-arrestor muffler
  • Universal Mounting Tray
  • Structural capability to support the generator set in RV apps.
  • 4-Point focalized mounting system with vibration isolators
  • Added Features
  • Integral Control Panel & Instant one-touch stop switch
  • Automotive Type Starter, Mech Governor & Electric Fuel Solenoid
  • 3 Year / 2000 Hour Warranty (Please See Warranty Sheet)
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer, and Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

A063B871
specs product image PID-6316
General Information
Product Category
Generator - RV
Overview
Product Category
Generator - RV
Weight
279 Pounds
Consumer Warranty
3 Years
Product Style
RV Generator
Product Length
33.6 Inches
Product Width
22.2 Inches
Product Height
16.7 Inches
UPC
088805651153
Additional Model Numbers

RV QG 5500 LP, A063B871

Product Specs
Voltage
120 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
5500 Watts
Fuel Type
LP
LP Fuel Consumption @ 50% Load
0.8 gallons/hr
LP Fuel Consumption @ 100% Load
1.1 gallons/hr
Rated Amps
45.8 Amps
Decibel Rating @ 3m
67
Idle Control
No
Circuit Breaker Size
20-30 Amps
Min. Air Inlet - Front
4.7" x 18.7"
Min. Air Outlet - Bottom
6.3" x 17.8"
Grade Type
Recreational
Engine
Engine Brand
Cummins Onan
Starting System
12-Volt Button Start
HP
10.7 HP
CC
653 CC
Consumer Engine Warranty
3 Years
Engine RPM
2400 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
