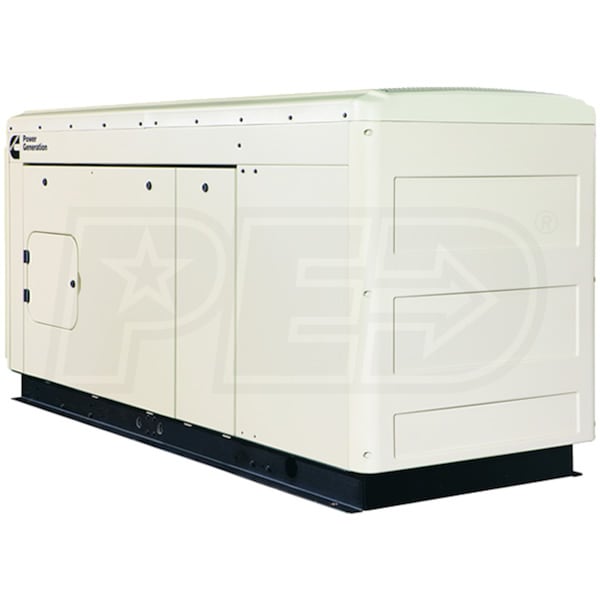

Cummins C50D6 - 50kW Automatic Standby Diesel Generator w/ Fuel Tank (120/240V Single-Phase)
Model:
A063P965
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jared, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Emergency
Style
Standby (Liquid Cooled)
Run Watts
50,000 Rated Watts
Voltage
120/240 Single-Phase
Fuel
Diesel
Engine
Cummins Onan
- Cummins 50kW Pre-Configured Diesel Generator w/ Fuel Tank
- Great for home & light commercial applications
- Designed for 120/240V Single Phase Service
- Cummins 3.3L Liquid-Cooled Diesel Engine
- 1800 RPM design provides reliability and fuel efficiency
- EPA emissions certified and Tier IV Final compliant
- 132-Gallon, Double Wall, Sub-Base Fuel Tank
- Provides 24+ hours of operation @ 100% load
- PowerCommand® 1.1 Electronic Control
- Provides industry-leading self-diagnostic capabilities
- Meets NFPA 110 standards for level 1 systems
- Factory-Installed Extreme Cold Weather Kit
- Provides reliable cold-weather starting down to -40°
- Brushless Alternator
- Provides +/- 1% voltage & +/- 0.5% frequency regulation
- As close to utility power as you can get in a standby generator
- Flexible Exercise Mode
- Exercise at a time, frequency and duration that suits you
- Reducing unnecessary fuel consumption, emissions and noise
- Advanced Design Sound Attenuated Aluminum Enclosure
- Aesthetically appealing withstands winds up to 180 MPH
- One of the quietest generators of its kind (71dB @ 7M)
- Req. Cummins RA Series Automatic Transfer Switch (Sold Separately)
- NOT Compatible w/ Cummins RSS Automatic Transfer Switches
- 2-Year Limited Warranty
- *Not Designed For Prime Power Applications*
^Please Note - Requires Loading Dock or Forklift For Delivery^
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer, and Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
A063P965
General Information
Product Category
Generator - Standby
Overview
Product Category
Generator - Standby
Weight
2207 Pounds
CARB Compliant
Yes
Made in USA
Yes
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
93.8 Inches
Product Width
34 Inches
Product Height
68.5 Inches
Additional Model Numbers
A063P965-C50D6-TANK, A063P965
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
50000 Watts
Fuel Type
Diesel
Rated Amps
208.3 Amps
Diesel Fuel Consumption @ 50% Load
1.49 gallons/hr
Tank Size
132 Gallons
Run Time @ 50% Load
88.59 Hours
Fuel Tank Material
Metal
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
71
Hour Meter
Yes
Transfer Switch
Automatic (Not Included)
Battery
Not Included
Enclosure
Aluminum
Circuit Breaker Size
250 Amps
Mounting Pad
Concrete (Not Included)
Grade Type
Emergency
Engine
Engine Brand
Cummins Onan
Starting System
12v Auto Start
CC
3300 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
2 Years
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
