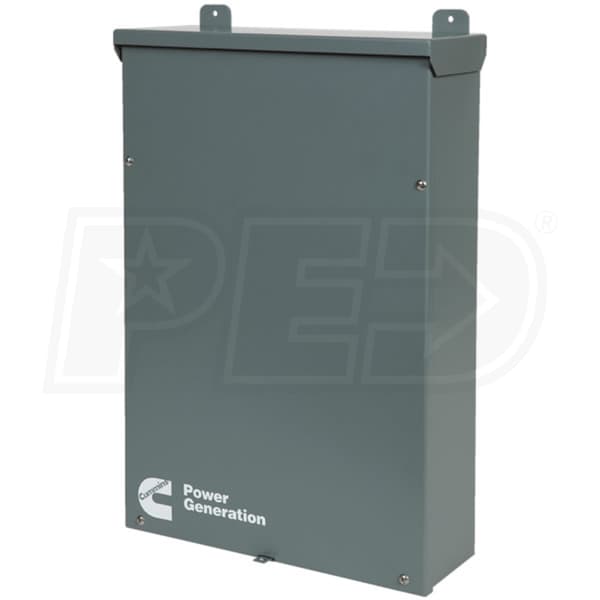

Cummins RA-200-SE - 200-Amp Outdoor Automatic Transfer Switch For RS/RX Generators (Aluminum) (Service Disc.)
Model:
A064G549
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jared, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Type
Service Disconnect
Amp Rating
200
Load Mgmt.
Not Required
Voltage
120/240 Single-Phase
Enclosure
NEMA 3R
- RA Series 200-Amp Automatic Transfer Switch w/ Service Disconnect
- Designed for Cummins RS & RX series generators
- Service Entrance Rated (Overcurrent Disconnect Device)
- Offers ability to power all circuits without a sub-panel
- Versatile Design
- For standby use in residential & light commercial applications
- Fully-Automatic - Monitors Utility Power 24/7
- When utility power becomes unsatisfactory or fails
- Genset is signaled to start & then automatically transfers load
- When power returns load is shifted back to utility power
- NEMA 3R (Indoor/Outdoor) Aluminum Enclosure
- Give you the flexibility to install inside or outside the home
- Mechanically Interlocked Contactor
- Long life, silver alloy contact resists burning & pitting
- Powerful and economical solenoid drives the mechanism
- Ease Of Connection
- Solderless screw type terminals for external power connections
- Rated at 200-Amps @ 240-Volts
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer, and Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
A064G549
General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Weight
58 Pounds
Consumer Warranty
1 Year
Product Length
23.3 Inches
Product Width
19.8 Inches
Product Height
7.2 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
48000 Watts
Rated Amps
200 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Not Required
ATS Load Shedding
Not Required
ATS Poles
2 Poles
ATS Service Disconnect
Yes
Max Utility Input
200 Amps
Max Generator Input
200 Amps
Maximum Wattage
48000 Watts
UL Listed
Yes
Reviews
(3)
Cummins Power Generation A064G549 Reviews & Ratings
Product Q&A
(1)
Product Questions
Answered by Jared, the Generator Expert
Will a Generac generator work with a Cummins transfer switch?
Gary
from Delaware
December 22, 2020
How-To Articles
How To Pick the Perfect Automatic Transfer Switch
I recently spoke with someone who wanted to back up their home with a standby g...
How to Avoid Tripping a Generator With a Bonded Neutral
Does your generator outlet trip every time you connect it to your home's transf...
How to Pick the Perfect Manual Transfer Switch
During a sudden power outage, you probably don’t feel like running multip...
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

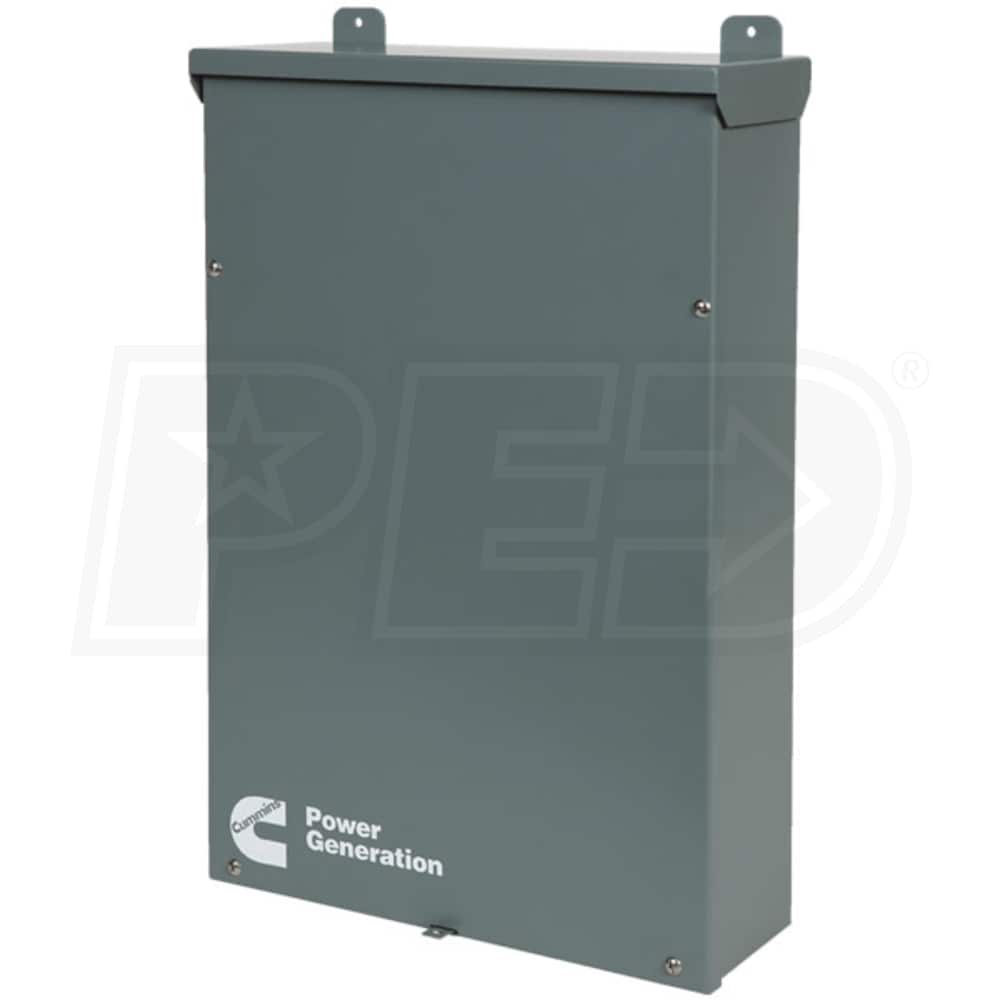

Cummins RA-200-SE - 200-Amp Outdoor Automatic Transfer Switch For RS/RX Generators (Aluminum) (Service Disc.)
