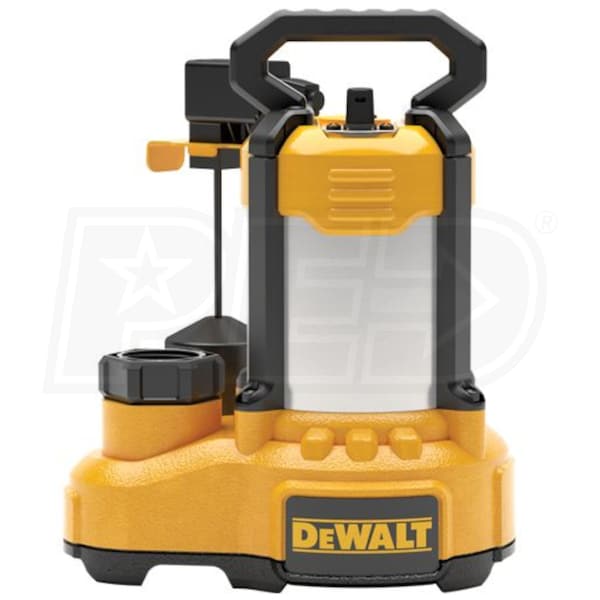

DEWALT 1/2 HP Cast Iron / Stainless Steel Submersible Sump Pump w/ Vertical Float Switch
Model:
DXWP62583
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Style
Primary
GPH
6120 Gallons
Switch Type
Vertical
- DEWALT Submersible Sump Pump w/ Vertical Float Switch
- Engineered to be contractor tough and keep your basement dry
- 1/2 HP, Oil-Cooled, Hermetically-Sealed Motor
- Energy-efficient design, only draws 10A
- Thermal Overload Protection
- Helps extend motor life in demanding applications
- Cast Iron Base, Stainless Steel Housing & Aluminum Motor Cap
- Durable design to maximize pump life in sump applications
- High Flow, Cast Iron Impeller
- Easily handles solids up to 1/2" diameter
- Vertical Float Switch w/ Piggyback Plug
- Provides reliable automatic operation; Tested over 3M cycles
- Switch can be bypassed to run pump manually
- SS Motor Shaft & Carbon/Ceramic/SS Shaft Seal
- Robust components help prevent leaks
- 2" FPT Discharge w/ 1-1/2" Adapter
- Allows for maximum discharge and increased performance
- Makes it easy to connect to your existing discharge line
- Stainless Steel Fasteners
- Helps extend pump life in harsh sump conditions
- 10' Power Cord w/ 3-Prong Plug
- Ideal for residential sump applications
- 10-Year Limited Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
DXWP62583
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
10
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Housing Material
Stainless Steel
Impeller Material
Cast Iron
Solids Handling Size
0.5 inch
Handles Solids
Yes
Float Type
Vertical Float
GPH @ 0 feet
6120
GPH @ 5 feet
5640
GPH @ 10 feet
5160
GPH @ 15 feet
4440
GPH @ 20 feet
3780
Discharge Port Size
1-1/2 Inch and 2 Inch
Check Valve Included
No
Float On
6.5
Float Off
1.5
Manual Override
Yes
Max Head
35 Feet
Submersible
Yes
Remote Monitoring
No
Engine
Horsepower
.5 HP
Overview
Product Category
Sump Pump
Weight
27.3 Pounds
Consumer Warranty
10 Years
Product Length
9.7 Inches
Product Width
10.4 Inches
Product Height
12.9 Inches
UPC
725113625833
