DR PRO 28T (28-Ton) 6.6 HP Horizontal / Vertical Log Splitter

Model:

WH35028DMN

Write A Review
Product Discontinued
Sorry, this product is no longer available.
DR PRO 28T (28-Ton) 6.6 HP  Horizontal / Vertical Log Splitter
DR PRO 28T (28-Ton) 6.6 HP Horizontal / Vertical Log Splitter
Model: WH35028DMN
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • PRO 28-Ton Splitting Force
  • Handles logs up to 100 lbs
  • Splits logs up to 30" in diameter and 24" in length
  • Vertical & Horizontal Splitting
  • Switch configurations in seconds without tools

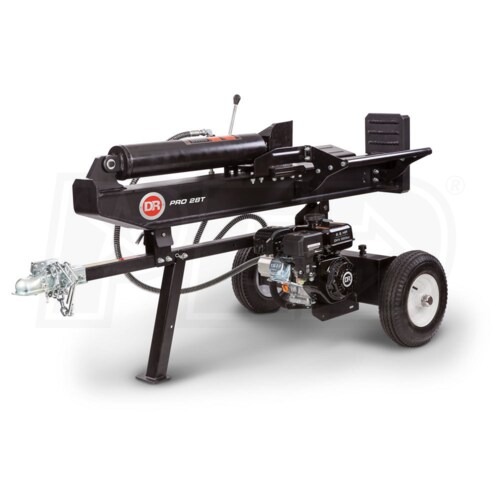

  • Horizontal mode is easiest for most splitting tasks
  • Simply pull the pin and rotate to vertical for heavy logs
  • DR 6.6HP / 223cc OHV R225 Engine
  • 9.59 ft-lbs. high torque delivers high performance
  • Easy recoil pull handle, throttle control & choke control lever
  • Fuel shutoff valve reduces engine flooding while moving unit
  • Cast Iron Beam
  • Provides rock solid stability in both setups
  • Jackstand adds steadiness and folds up for transport
  • 11.1 GPM 2-Stage Hydraulic Pump
  • Generates 4100 psi in the cylinder
  • Steel piston compression seals provide consistent power
  • Over-sized design, provides a cycle time of just 12 seconds
  • Integrated Log Cradle
  • Keeps split logs on the beam, less bending over to stack
  • Easy Towing
  • 2" ball hitch comes standard with safety chains
  • 16-inch tires for smooth towing to your wood lot
  • ***Not Compatible With 4-Way Wedge***
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

WH35028DMN
specs product image PID-139907
Engine
Engine Brand
DR
Starting System
Recoil Start
Engine Cycle
4-Cycle
HP
6.6 HP
CC
223 CCs
Fuel Tank Size
0.95 Gallons
Engine Cylinders
1 Cylinder
Torque
9.59 Lbs
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
90 Days
Hydraulics
Auto Return
Yes
Hydraulic Oil Included
No
Hydraulic Reservoir Size
4 Gallons
Max Pump PSI
4100 PSI
Cylinder Diameter
4.1 Inches
Cycle Time
12 Seconds
Tonnage
28 Tons
Overview
Product Category
Log Splitter
Weight
530 Pounds
CARB Compliant
Yes
Consumer Warranty
2 Years
Commercial Warranty
90 Days
Product Length
89.5 Inches
Product Width
53.3 Inches
Product Height
40.6 Inches
Power Type
Gas
UPC
696471098419
Wedge
Wedge Material
Steel
Wedge Size
1-3 Inch
Wedge Style
2-way
Replaceable Wedge
Yes
Sharpenable Wedge
Yes
Log Capacity
Max Log Length
24 Inches
Max Log Diameter
30 Inches
Towing
Towable
Yes
D.O.T. Lights
No
Fenders
No
Hitch Type
2 Inch Ball Hitch
Max Towing Speed
45 MPH
Accessories
Jack Stands
Included
Log Cradles
Included
Wheels
Rear Tire Size
16 Inch
Tire Type
Pneumatic Wheels
Wood Type Hardness Rating 6" Seasoned 6" Green 12" Seasoned 12" Green 24" Seasoned 24" Green
Alder 590 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Ash 1320 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Aspen 420 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Basswood 410 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Beech 1300 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Birch 1470 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Boxelder 720 Lbs. 6+ Tons 8+ Tons 10+ Tons 13+ Tons 27+ Tons 30+ Tons
Buckeye 350 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Catalpa 550 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Cedar 900 Lbs. 6+ Tons 8+ Tons 15+ Tons 20+ Tons 27+ Tons 30+ Tons
Cherry 950 Lbs. 6+ Tons 8+ Tons 15+ Tons 20+ Tons 27+ Tons 30+ Tons
Cottonwood 430 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Dogwood 2150 Lbs. 10+ Tons 13+ Tons 22+ Tons 27+ Tons 30+ Tons 35+ Tons
Elm 1540 Lbs. 10+ Tons 13+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Fir 710 Lbs. 6+ Tons 8+ Tons 10+ Tons 13+ Tons 27+ Tons 30+ Tons
Hickory 1820 Lbs. 10+ Tons 13+ Tons 22+ Tons 27+ Tons 30+ Tons 35+ Tons
Locust 1700 Lbs. 10+ Tons 13+ Tons 22+ Tons 27+ Tons 30+ Tons 35+ Tons
Magnolia 1020 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Maple 1450 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Oak 1620 Lbs. 10+ Tons 13+ Tons 22+ Tons 27+ Tons 30+ Tons 35+ Tons
Pine 860 Lbs. 6+ Tons 8+ Tons 10+ Tons 13+ Tons 27+ Tons 30+ Tons
Poplar 540 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Spruce 510 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Sweet Gum 850 Lbs. 6+ Tons 8+ Tons 10+ Tons 13+ Tons 27+ Tons 30+ Tons
Walnut 1010 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
