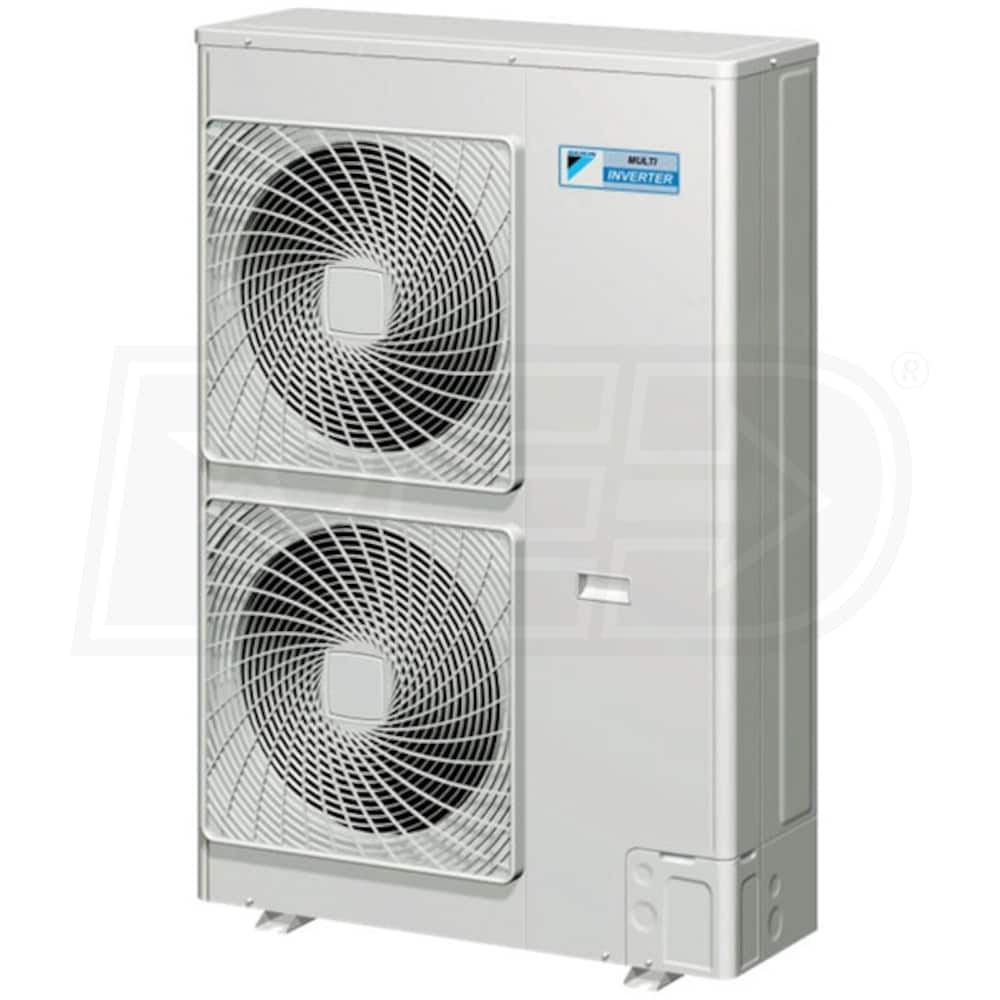

Daikin 48k BTU - Heat Pump Condenser - Multi Zone (Scratch & Dent)
Model:
RMXS48LVJU-SD
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Reactive Temperature Monitoring
- Daikin systems do not require any setting changes to keep your home comfortable on a particularly hot or cool day. Once you set a temperature for the system to maintain, the system automatically adjusts output according to environmental conditions.
- Inverter Technology Prevents Temperature Fluctuation
- Daikin's inverter technology works together with the expansion valve to adjust coolant flow rate and compressor speed to match indoor conditions. This results in less dramatic indoor temperature swings, which in turn results in a more comfortable home.
- Intelligent Eye Energy Saving Mode
- Daikin indoor units have built-in motion sensing technology that transitions the system into an energy-saving mode when no movement has been detected indoors for 20 minutes. Once someone enters the room, the system switches back to full operation.
- Construct Your System from the Ground Up
- The Daikin RMXS48LVJU outdoor condenser is compatible with wall mounted, concealed duct, and ceiling cassette indoor units, allowing you to mix and match unit types to construct a system that perfectly matches your home's needs.
- Product Compatible With
- Daikin CTXS Wall Mounted Indoor Units (7,000 to 9,000 BTU Sizes)
- Daikin FTXS Wall Mounted Indoor Units (15,000 to 24,000 BTU Sizes)
- Daikin FFQ Ceiling Cassette Indoor Units
- Daikin FDXS Concealed Duct Units (9,000 to 12,000 BTU Sizes)
- Daikin CDXS Concealed Duct Units (15,000 to 24,000 BTU Sizes)
- Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
- Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing..
- Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
- Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
- Outdoor Condenser Plastic Pad (Optional) - This pad provides an even surface, free of debris, on which to place your outdoor condenser.
- Wall Bracket (Optional) - A simple and sturdy way to mount your outdoor condenser off of the ground.
***Scratch & Dent*** Top Corner Dented.
Daikin has firmly established themselves as a world leader in heating and cooling equipment manufacturing, and their ductless systems are no exception. This is a RMXS48LVJU outdoor condenser unit for use in building a multi-zone mini split system. This condenser supports up to eight indoor units operating simultaneously, allowing you to build the ideal system type to fit your home's specific needs. A broad range of accessories are availabile to add to your system as well, which when combined with Daikin's extensive experience with building efficient units provides a solution to any home's heating and cooling needs.
Product Note
Product Note| |Each indoor unit will include any port adapters necessary for multi-zone installation. This product requires at least two compatible Daikin mini split indoor units and the following accessories for installation:
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
RMXS48LVJU-SD
Overview
Product Category
Mini Split System Components
General Information
Type
Outdoor Condenser
Product Line
MXS
Product Category
Mini Split System Components
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Maximum Number of Zones
8
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Installation Location
Outdoor
Branch Box Required
Branch Box Required
By making a single connection to the outdoor condenser, a branch box can supply the right amount of refrigerant to multiple indoor units. Learn More
Yes
Performance
Cooling BTU
48000
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
58 dB
Low Ambient Heating
No
Minimum Outdoor Temperature for Heating
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
5 F
Minimum Outdoor Temperature for Cooling
23 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
30 Amps
Dimensions
Gas Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
Product Height
52 15/16 Inches
Product Width
35 7/16 Inches
Product Depth
12 5/8 Inches
Product Weight
283 Pounds
Shipping Weight
283 Pounds
Certifications
Country of Origin
Japan
ETL Listed
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
