DeWalt 2-HP 25-Gallon (Belt Drive) Portable Air Compressor (120V 1-Phase)

Model:

DXCM251.COM

Write A Review
$849.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships from DeWalt
Shipping to60601

DeWalt 2-HP 25-Gallon (Belt Drive) Portable Air Compressor (120V 1-Phase)
DeWalt 2-HP 25-Gallon (Belt Drive) Portable Air Compressor (120V 1-Phase)
Model: DXCM251.COM
$849.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Contractor

Style

Portable - Vertical

CFM

6.2

Tank Size

25

  • Dewalt 120-Volt Portable Air Compressor
  • 73dBA is ideal for indoor use where noise is an issue
  • Quiet operation brings less noise to your work environment

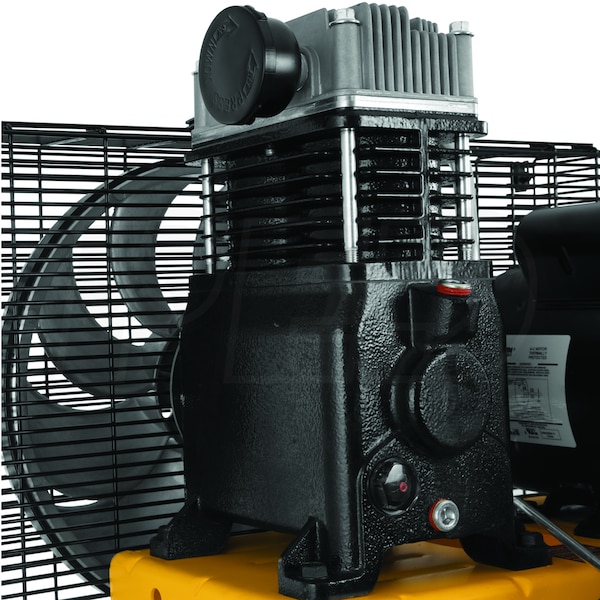

  • Oil Lubricated 2 Cylinder Cast Iron Pump
  • Aluminum pump head to dissipate heat

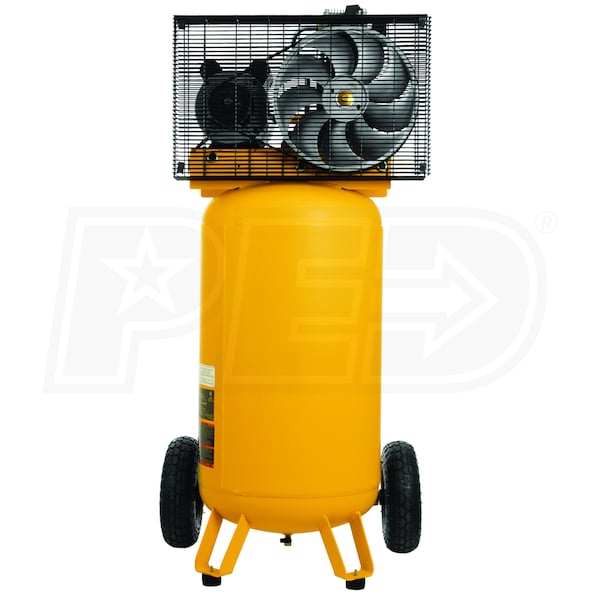

  • High efficiency flywheel fan provides lower operating temperatures
  • Develops 6.2 CFM @ 90 PSI; 7.7 CFM @ 40 PSI
  • Plenty of power to run a wide range of air tools

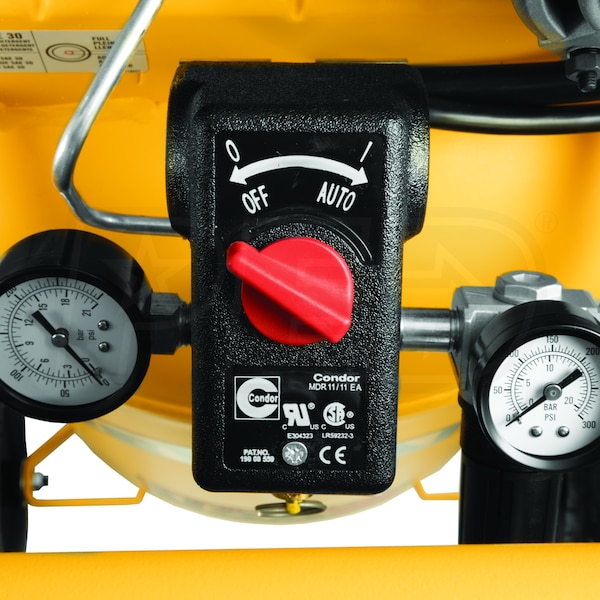

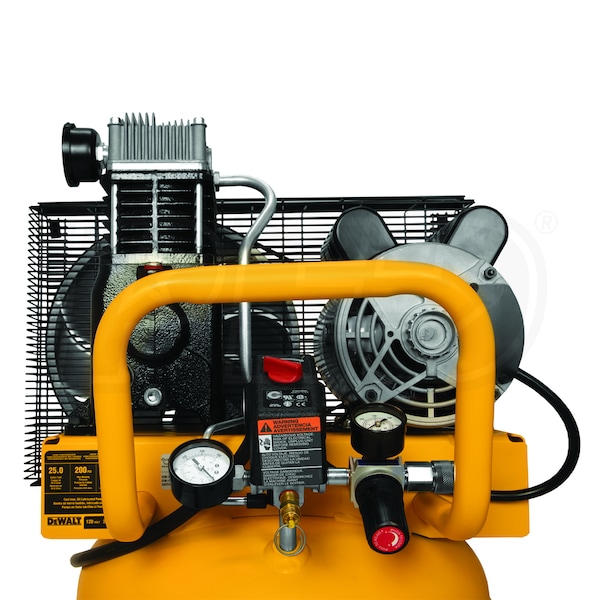

  • Dual gauges & pressure regulator provides consistent pressure to tools
  • Durable 2-HP Belt-Drive Motor
  • Delivers smooth power transfer & long service life
  • Designed for maximum performance and efficiency
  • Impressive 200 Maximum PSI
  • Fast recovery time results in increased project efficiency
  • 76% Longer air tool runtime versus 30-gallon 155 PSI belt drive compressors
  • 25-Gallon Vertical Steel Air Tank
  • Compact design for easy portability to job sites
  • Perfect for larger projects, spray painting, HVLP spray gun, blow guns, brad and nail guns
  • Sturdy 10-Inch Pneumatic Tires
  • Easy to move around garage or workshop
  • Great for uneven terrains & dampens vibration
  • 1-Year Factory Warranty
  • Covers defect in materials & workmanship
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

DXCM251.COM
specs product image PID-102858
General Information
Product Category
Air Compressor - Portable
Engine
HP
2
Motor
Voltage
120 Volt AC
Phase
1-Phase
dBA Learn More
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
73
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
15
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
6.2
CFM Rated @
90 PSI
CFM @ 40 PSI
7.7
Pump Material
Solid Cast Iron
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
200 PSI
Pump Type
Single-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
25 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Filter
Regulator
Yes
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
155 Pounds
Certification
CSA, UL
Consumer Warranty
2 Years
Product Length
26 Inches
Product Width
24 Inches
Product Height
49 Inches
Power Type
Electric
UPC
846212077696
Additional Model Numbers

DXCM251, DXCM251.COM

Reviews

(10)
DeWalt DXCM251.COM Reviews & Ratings

Product Q&A

(1)
Expert avatar photo
Product Questions Answered by Melissa, the Air Compressor Expert
At what rpm does this compressor run?
Al D.
from Nebraska
January 04, 2020
