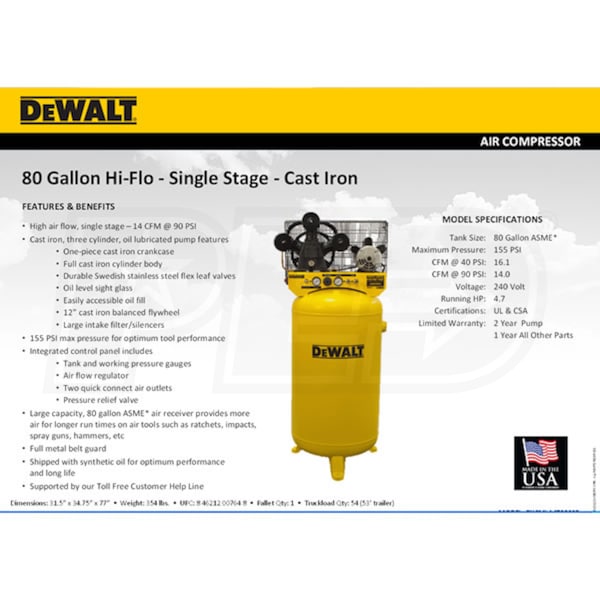

DeWalt 4.7-HP 80-Gallon Single-Stage Air Compressor (230V 1-Phase)
Model:
DXCMLA4708065
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Contractor
Style
Single Stage 1-Phase
CFM
14
Tank Size
80
- Heavy Duty 4.7 HP Induction Motor
- 240 Volt motor provides maximum performance & efficiency
- Belt Drive
- Better power transfer & longevity than direct drive units
- 12 inch cast iron flywheel is enclosed for safety
- 3 Cylinder, Hi-Flo Pump
- Durable, 1-piece cast iron crankcase
- Reliable Swedish stainless flex leaf valves
- Large intake air filter/silencers for cooler operation
- 80 Gallon Tank
- ASME certified for safety; 16.1 CFM at 40 PSI, 14 CFM at 90 PSI
- Large capacity for longer air tool run times
- Convenient Control Panel
- Easy-to-see tank & tool pressure gauges
- 2 quick connect air outlets let you run multiple tools
- Easy access to air flow regulator & pressure relief valve
- Shipped With Synthetic Oil
- Helps get longest life & best performance from your compressor
- Oil sight glass makes maintenance easier
- Made In U.S.A.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
DXCMLA4708065
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
22
Recommended Breaker
30 Amp Breaker
Engine
HP
4.5
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
14
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
155 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
80 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Filter
Regulator
No
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Stationary
Weight
354 Pounds
Certification
ASME
Consumer Warranty
1 Year
Product Length
31.5 Inches
Product Width
34.75 Inches
Product Height
77 Inches
Power Type
Electric
UPC
846212007648
