Features
Grade
Consumer
Voltage
230 Volt AC
Phase
1-Phase
CFM
15.3
Tank Size
60

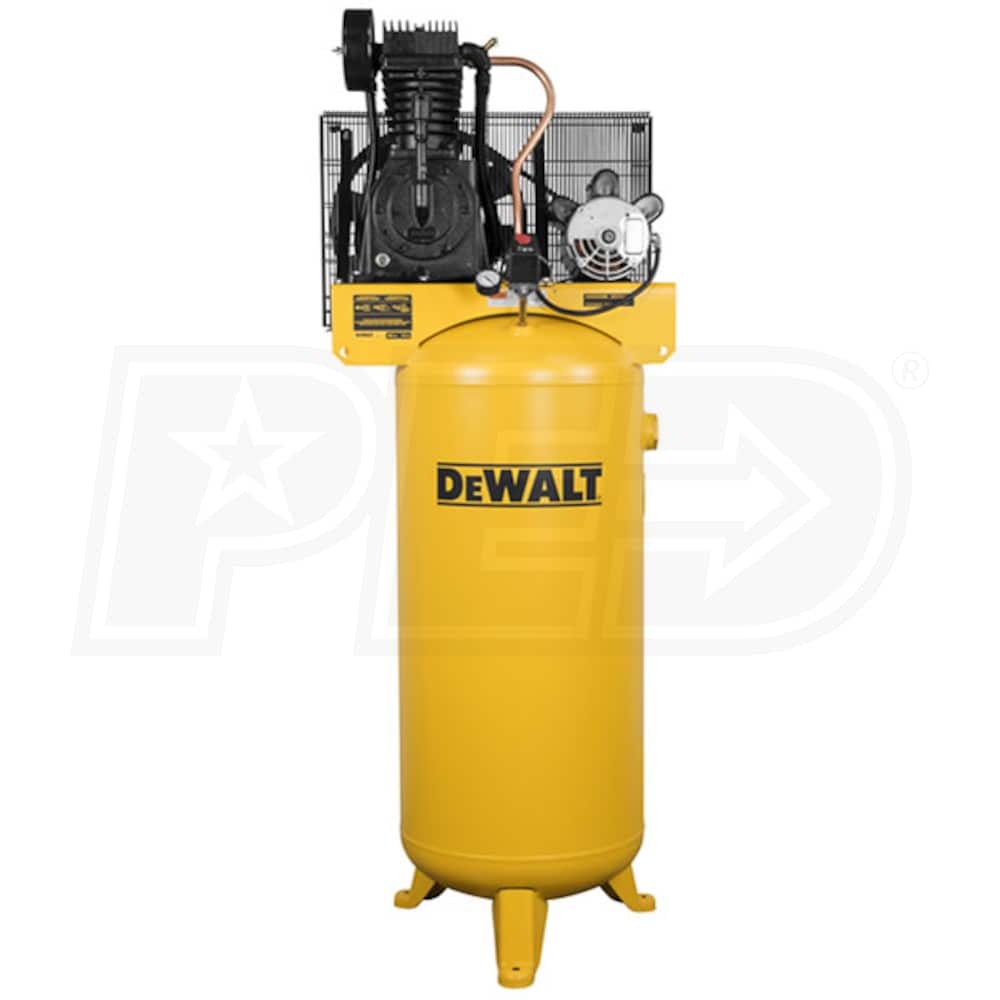

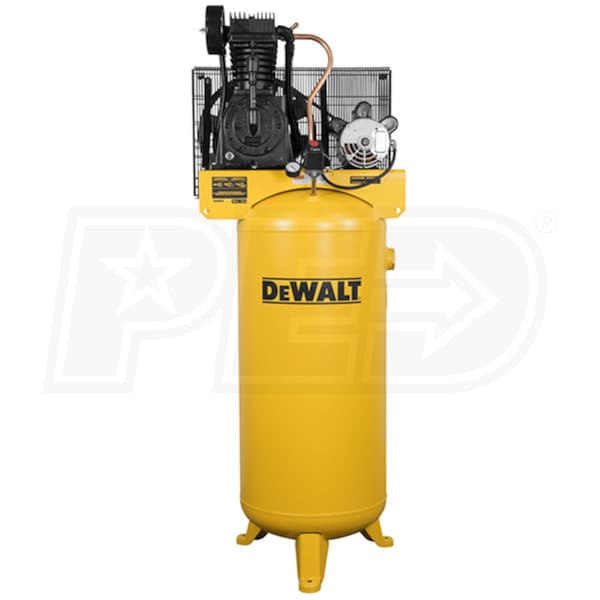

DeWalt 5-HP 60-Gallon Two-Stage Air Compressor (230V 1-Phase)
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Industrial DeWalt Two-Stage Air Compressor
- Provides enough power to operate more than one air tool or device at one time
- Equipped with tank pressure gauge and on/off switch for maximum reliability
- 5-HP Electric Motor With Thermal Overload Protection
- Low pump RPM for longer life
- T.O.P.S. protects the motor from voltage fluctuations; Magnetic starter not required
- Patented Cast Iron Industrial Duty Pump
- Provides 15.3 CFM at 100 PSI for big jobs & multiple users
- Industrial style air intake filter and large oil level sight glass for easy maintaining
- Patented Cast Iron Flywheel & Asymmetrical, Deep Groove Cooling Fins
- Large fins for low pump RPM, improved cooling, longer pump life
- Cooler pumps last longer & run more effectively with patented fins
- 60-Gallon Air Tank
- ASME rated for safety; 175 PSI maximum pressure
- Manual oil drain with 4" extension simplifies maintenance
- 4 tie down holes in platform for ease in transporting
- 2-Year Manufacturer Factory Pump Warranty
- 1-year Factory Warranty on all other parts
- Shipped with Synthetic Blend Compressor Oil
- Pump Warranty Extension
- Purchase & use of maintenance kit doubles the pump warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
DXCMV5076055
General Information
Product Category
Air Compressor - Stationary
Engine
HP
5
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
22
Recommended Breaker
30 Amp Breaker
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
15.3
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
60 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Stationary
Weight
424 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
40 Inches
Product Width
31 Inches
Product Height
80 Inches
Power Type
Electric
UPC
846212053966
Reviews
(18)
DeWalt DXCMV5076055 Reviews & Ratings
Customer Rating
4.61
(18 Ratings)
5
(12)
(12)4(5)
(5)3(1)
(1)2(0)
(0)1(0)
(0)
5 HP Compressor
By Les H.
Iowa
Purchased 05/06/2024 |
Review Posted 06/05/2024
Works great, process was easy, thanks.
Les H. Recommends This
Was this review helpful?
Rating Breakdown
4/5
4/5
4/5
3/5
Pros:
Easy To Use, I39d Buy It Again
Cons:
None
Very Good
By Lee H
New Mexico
Purchased 05/11/2023 |
Review Posted 07/17/2023
Arrived put plug on cord plugged in ready to go works great no issues very impressed
Lee H Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use, Price, I'd Buy It Again
Cons:
None
Good
By James B
Pennsylvania
Purchased 11/10/2022 |
Review Posted 06/13/2023
I like it
James B Recommends This
Was this review helpful?
Rating Breakdown
4/5
4/5
4/5
4/5
Pros:
Easy To Use
Cons:
None
Gets The Job Done
By James B
Colorado
Purchased 03/09/2023 |
Review Posted 04/23/2023
I am very happy with this compressor so far. Delivery from ACD went smoothly and right on time. Highly recommend.
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use
Cons:
None
Good
By James B
Pennsylvania
Review Posted 01/16/2023
I like it 👌
James B Recommends This
Was this review helpful?
Rating Breakdown
4/5
4/5
4/5
4/5
Pros:
Easy To Use
Cons:
Heavy
Works As Advertised
By Ted E.
Mill Valley, California
Purchased 07/25/2020 |
Review Posted 09/16/2020
I've been using this compressor for a couple of months now with no problems. It seems to be well built, runs smoothly and isn't very noisy. I use it to run a power hammer and it supplies plenty of air. I installed it myself and it fired right up.
It was delivered to my house damage free, although the crate was busted up some.
Overall I'm quite satisfied with it.
It was delivered to my house damage free, although the crate was busted up some.
Overall I'm quite satisfied with it.
Ted E. Recommends This
Was this review helpful?
Rating Breakdown
3/5
4/5
4/5
4/5
Pros:
Price, Quiet, Fast, Id Buy It Again
Great Air Compressor
By Bryon W.
Gentry, Arkansas
Purchased 07/24/2020 |
Review Posted 08/26/2020
The compressor was delivered right on schedule, in perfect condition. Packaged very good. Delivery person was very helpful, helped go over the compressor and look for damage. Had electrician wire it up, performed the break-in cycle, worked and ran great. Quieter than my old compressor. It's great having plenty of air to run my tools and not have to wait for pressure to build up like on the old compressor.
Bryon W. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Price, High Quality, Fast, Reliable
Cons:
Heavy
Wished It Ran
By Scott S.
Manson, Washington
Purchased 07/10/2020 |
Review Posted 08/08/2020
Well still waiting to hear back from Dewalt about one hour of run time that includes break-in and I have a loud knocking in my pump! Can't say anything else until I hear back from Dewalt!
Scott S. Does Not Recommend This
Was this review helpful?
Manufacturer Response
We are sorry to hear that this DEWALT 60 gal. air compressor did not meet your expectations. Please contact Product Services at 1-888-895-4549 and they will be able to discuss with you further about the issues you are having with your air compressor.
Rating Breakdown
4/5
4/5
1/5
4/5
Pros:
Price
Cons:
Durability, I Wish It Ran
This Is By Far The Best Air Compressure I Have Owned
By John H.
Frederic, Wisconsin
Purchased 06/23/2020 |
Review Posted 07/21/2020
So far so good. Came through with no damage, looks GREAT, wiring was a bit of a problem but a election got it up and going. Have only used it a couple of time but it seems to be doing the job and the noise is that loud.
John H. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
4/5
5/5
Pros:
High Quality, Id Buy It Again, Durable, Easy To Use
Cons:
Bad Instructions
Very Please With It
By Esteban R.
Green, Kansas
Purchased 06/11/2020 |
Review Posted 07/09/2020
Very good product and reasonable price.
Esteban R. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Features, Durable, High Quality
Product Q&A
(2)
Product Questions
Answered by Melissa, the Air Compressor Expert
What is the RPM of this compressor and what is the decibel rating?
Rod R.
from New York
April 16, 2020
Can this unit be wired with 208 volt and work properly?
Rob
from Maryland
January 23, 2018
