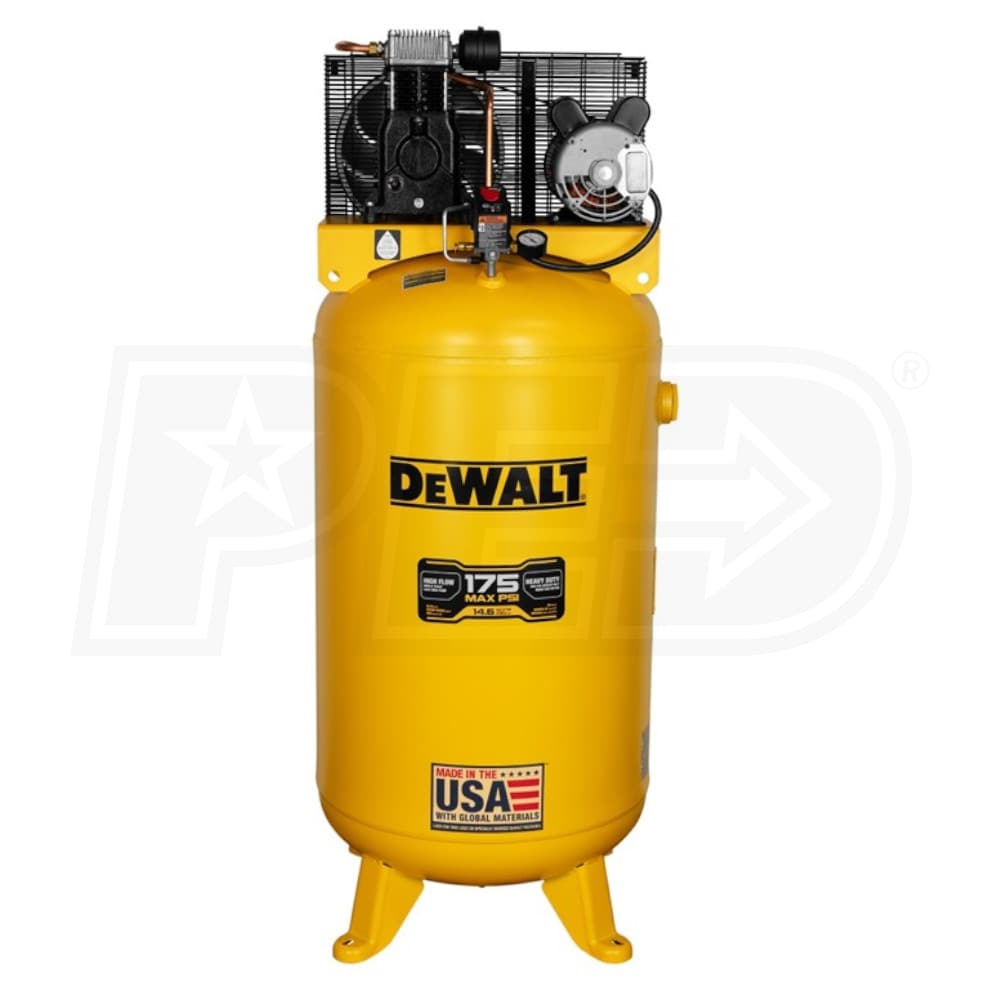

DeWalt 5.0-HP 80-Gallon Single-Stage Air Compressor w/ High Flow (208-230V 1-Phase)
Model:
DXCM805.COM
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Optional Accessories
10
Model: TRI-GD-1100P-GL
$65.00
Factory-Direct
Model: TRI-GD-2100P-GL
$95.00
Factory-Direct
Model: AB-COOL25
$1,199.00
Factory-Direct
Model: EATIWH5S1P
$170.16
Factory-Direct
Model: DXCM024-0393
$74.00
Factory-Direct
Model: DXCM024-0400
$209.00
Factory-Direct
Model: DXCM024-0434
$153.99
Factory-Direct
Model: EGA-500
$81.00
Factory-Direct
$8.99
$783.33
Factory-Direct
Features
Grade
Contractor
Style
Single Stage 1-Phase
CFM
14.6
Tank Size
80
- High Flow 208/230V Single-Stage Air Compressor
- Competes with two-stage compressors with equivalent PSI & CFM
- Plenty of power to run a wide range of air tools & 70 dBA is ideal for indoor

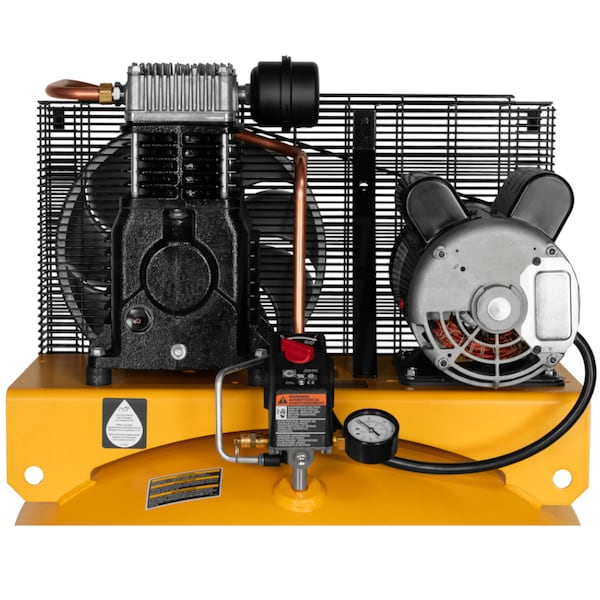

- Heavy-Duty 5.0 HP Belt-Drive Induction Motor
- Better power transfer and longevity than direct drive units
- Poly-v pulley and drive belt provide smooth operation with less vibration
- i15 High Flow Twin Cylinder Pump

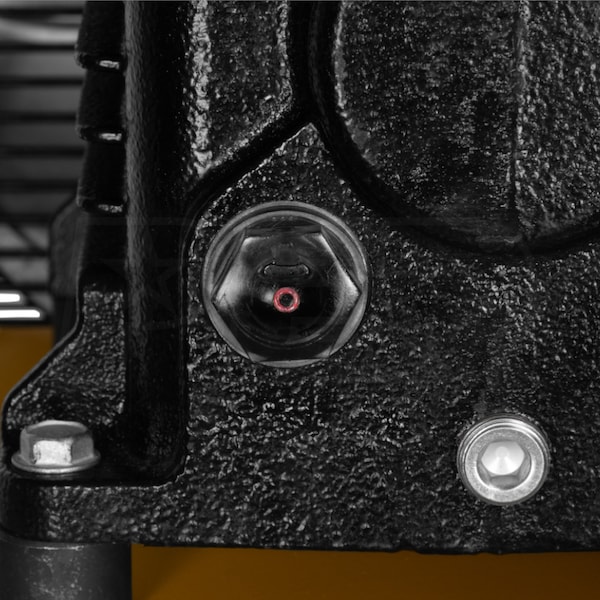

- Cast iron, oil-lubricated pump with oil sight glass
- Aluminum head and valve plate to maximize heat dissipation
- High-grade stainless steel valves with superior o-ring seals to eliminate oil leaks

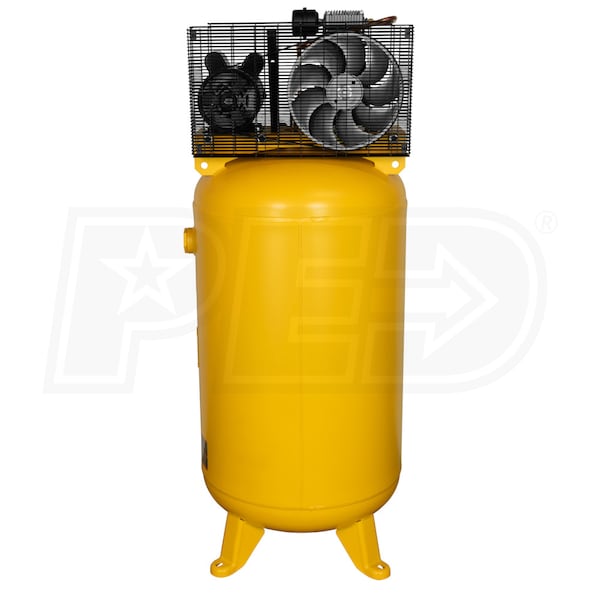

- High-Efficiency Aluminum Flywheel
- Balanced for best performance and durability
- Allows maximum airflow and lower start-up amps due to less starting
- Delivers 14.6 CFM at 90 PSI; Max 175 PSI
- Max 175 PSI is typically found in two-stage compressors
- Provides longer air tool run times with 80-gallon tank & 175 PSI
- 80-Gallon ASME Tank
- Easy-access manual drain simplifies routine maintenance
- Tie-down holes on platform sides to secure unit when transporting
- Convenient Controls
- Equipped with pressure gauge and on/off switch
- Perfect for a small shop, automotive enthusiast or serious DIY user
- Limited Manufacturer Warranty
- 2-year pump and 1-year on all other parts
- Made In U.S.A.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
DXCM805.COM
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
20 Amps (230V)
Recommended Breaker
30 Amp Breaker
Engine
HP
5.0
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
14.6
CFM Rated @
90 PSI
CFM @ 40 PSI
17
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
80 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Filter
Regulator
No
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Stationary
Weight
269 Pounds
Certification
ASME, CSA
Consumer Warranty
1 Year
Product Length
41 Inches
Product Width
25.4 Inches
Product Height
62.70 Inches
Power Type
Electric
UPC
45564647728
Reviews
(3)
DeWalt DXCM805.COM Reviews & Ratings
Customer Photos and Videos
Dead On Arrival
By John A.
Kentucky
Review Posted 01/11/2025
After a lot of research I asked my wife to buy this for me for Christmas. I received it on January 3rd and have been getting it set up to replace a 20 year old Craftsman unit.

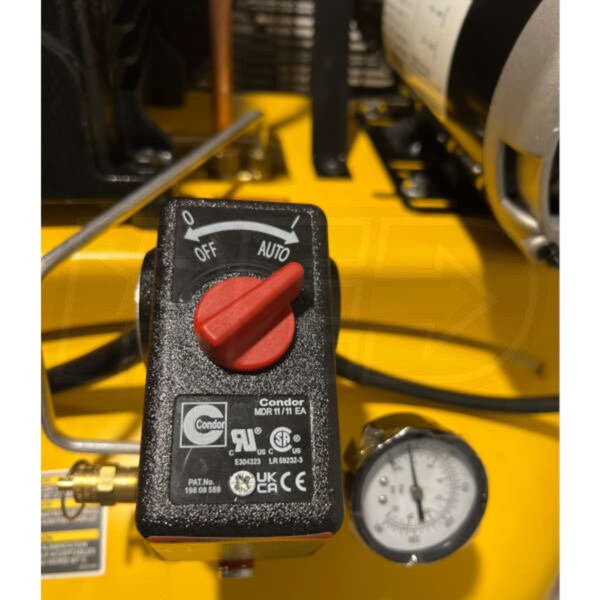

I noticed upon unpacking that the power switch would instantly spring into the Auto position and wouldn’t switch Off. I started thinking that maybe it needed power to it, so I didn’t let it bother me.
After getting myriad correct fittings to plumb into my system I plugged it in. Unfortunately, I was wrong about the power switch. It will not switch off.

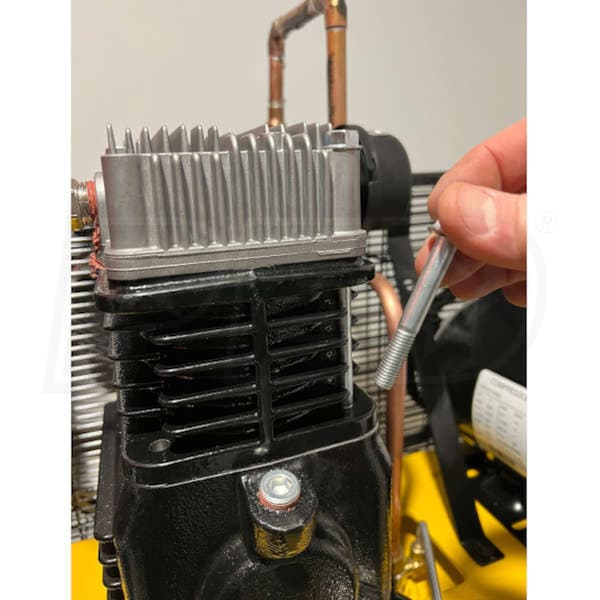

Anyway, it only runs for a few seconds before tripping my breaker. Frustrated, but not to be let down, I kept working to get it finished. It didn’t take a few seconds more to realize the one of the headbolts for the pump is totally incorrect. I don’t think that’s the culprit for the electric motor to keep tripping my breaker, but it’s disconcerting when I wonder what else is not assembled correctly.
I have emails to Dewalt and Air Compressors Direct to get help. I will update once I have a remedy.
I noticed upon unpacking that the power switch would instantly spring into the Auto position and wouldn’t switch Off. I started thinking that maybe it needed power to it, so I didn’t let it bother me.
After getting myriad correct fittings to plumb into my system I plugged it in. Unfortunately, I was wrong about the power switch. It will not switch off.
Anyway, it only runs for a few seconds before tripping my breaker. Frustrated, but not to be let down, I kept working to get it finished. It didn’t take a few seconds more to realize the one of the headbolts for the pump is totally incorrect. I don’t think that’s the culprit for the electric motor to keep tripping my breaker, but it’s disconcerting when I wonder what else is not assembled correctly.
I have emails to Dewalt and Air Compressors Direct to get help. I will update once I have a remedy.
John A. Does Not Recommend This
Was this review helpful?
Expert Response
First and foremost, thank you for your purchase. We are sorry to hear you are having issues with your unit and want to reassure you factory warranties cover defects in materials and workmanship. Our company is required to follow the manufacturer warranty process if there are issues and must be diagnosed by the manufacturer. If you have any issues please let us know, and we will forward your review to the manufacturer, informing them of the situation.
We appreciate your business and apologize for any inconvenience.
We appreciate your business and apologize for any inconvenience.
Dale V.
Power Equipment Expert
Rating Breakdown
5/5
1/5
1/5
1/5
Cons:
Low Quality
Great Compressor
By TruckGuy
Kentucky
Review Posted 07/12/2024
This compressor more than meets my needs in the shop.
TruckGuy Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
4/5
5/5
Pros:
Price, I39d Buy It Again
Cons:
None
Great Price & Specs
By Travis L.
Kentucky
Review Posted 01/05/2024
Great price & specs.
Travis L. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Price, I39d Buy It Again
Cons:
None
