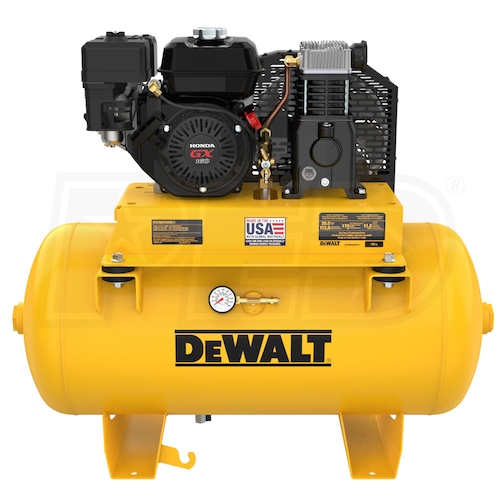

DeWalt 5.5-HP 30-Gallon Single-Stage Truck Mount Air Compressor w/ Honda Engine
Model:
DXCMH5593011
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Contractor
Style
Truck Mount
Engine Brand
Honda GX
CFM
11
Tank Size
30
- DeWalt Single-Stage Truck Mount Air Compressor
- Great for mobile services, contractors, and construction jobs
- Honda GX160 163cc Commercial Grade OHV Engine
- GX Series offers premium features with easy starting
- Low oil shutdown, quieter performance, and lower fuel consumption
- 2-Stage Twin Cyclinder Cast Iron Oil Lubricated Pump
- High efficiency aluminum flywheel provides maximum air flow
- Oil level sight glass, superior o-ring seals & one piece connecting rod
- Cast iron crankcase with aluminum head & valve plate to reduce heat
- Poly-V Pulley & Drive Belt
- Provides smooth operation with less vibration and longer life
- Sturdy metal belt guard provides optimal protection to drive system
- Automatic Idle Control
- Reduces engine RPM when the demand for air in the tank is met
- 30 Gallon ASME Tank
- Powder coated to resist rust and corrosion
- Isolated platform design absorbs engine & pump vibration
- Large 3/4” NPT air outlet on both sides to choose where to plumb air line
- 1-Year Limited Manufacturer Warranty
- 2-year limited warranty on pump
- ***Cables Not Included; Must Be Purchased Separately***
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
DXCMH5593011
Engine
HP
5.5
CC
163
Auto Idle
Yes
Engine Brand
Honda GX
Starting System
Recoil Start
Engine Low Oil Shut-off
Yes
Fuel Tank Size
0.81
Consumer Engine Warranty
3
Commercial Engine Warranty
3
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
11
CFM Rated @
90 PSI
CFM @ 40 PSI
13.2
Pump Material
Cast Iron w/ Aluminum Head
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
30 Gallons
Tank Included
Yes
Tank Outlet
3/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressors
Weight
220 Pounds
CARB Compliant
No
Certification
ASME
Consumer Warranty
1 Day
Commercial Warranty
1 Year
Product Length
39.86 Inches
Product Width
18.23 Inches
Product Height
34.52 Inches
Power Type
Gas
UPC
045564655471
