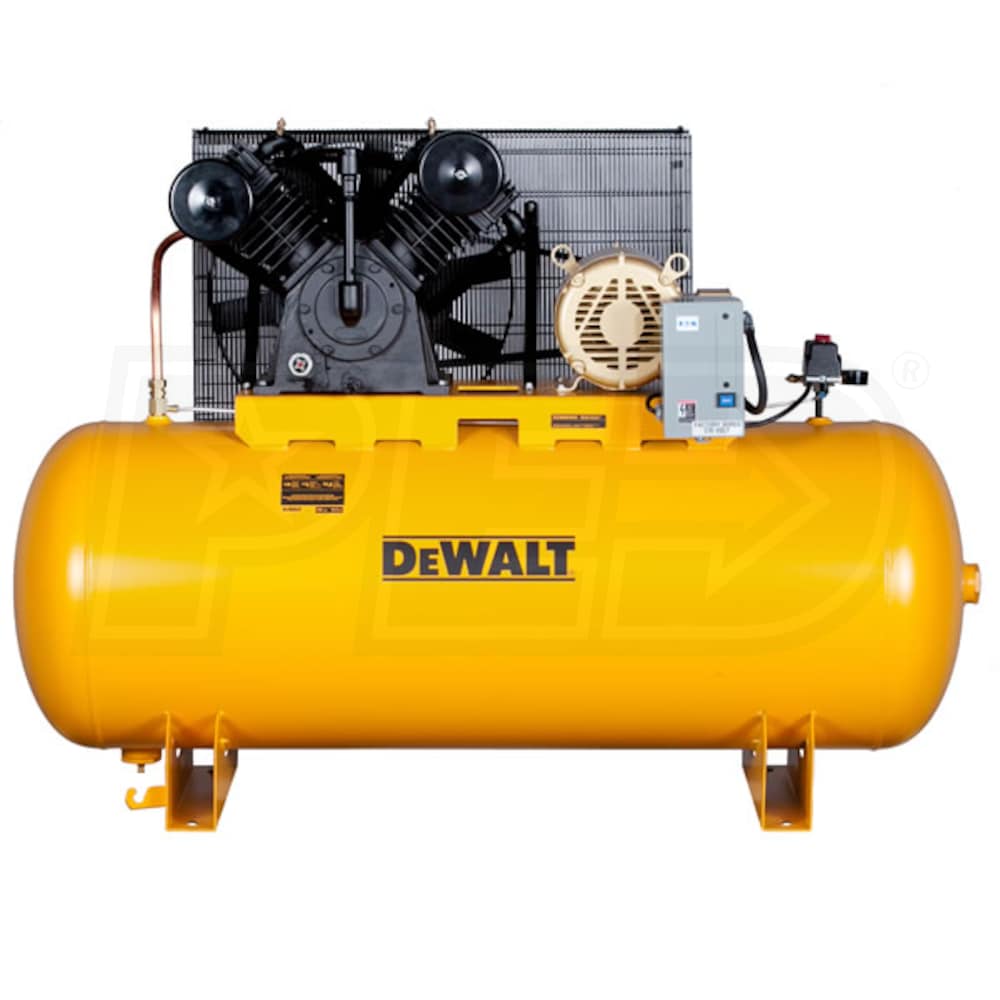

DeWalt 10-HP 120-Gallon Two-Stage Air Compressor (230V 3-Phase)

Model:

DXCMH9919910

Write A Review
$3,743.20
Was $4,679.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

DeWalt 10-HP 120-Gallon Two-Stage Air Compressor (230V 3-Phase)
DeWalt 10-HP 120-Gallon Two-Stage Air Compressor (230V 3-Phase)
Model: DXCMH9919910
$3,743.20
Was $4,679.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Voltage

230 Volt AC

Phase

3-Phase

CFM

33.6

Tank Size

120

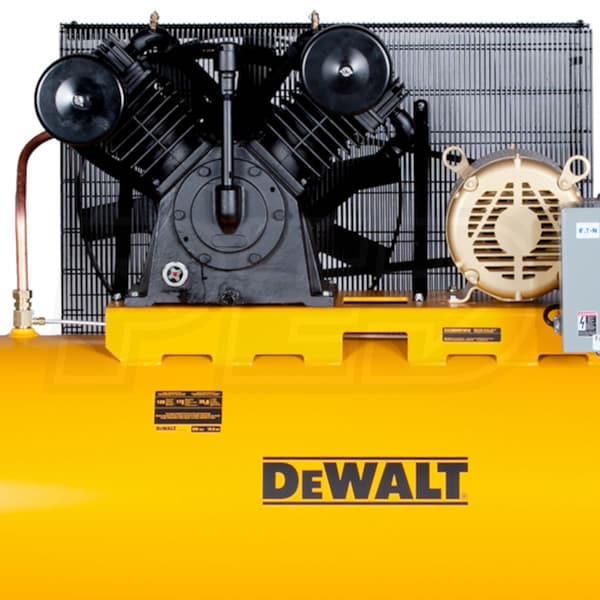

  • 10 HP Baldor Electric Motor
  • 4 pole, 1750 RPM, NEMA rated for reliability
  • Conveniently equipped with pre-wired & mounted magnetic starter
  • Patented 2-Stage Cast Iron Industrial-Duty Pump
  • Provides 35 CFM @ 100 PSI, 33.6 CFM @ 175 PSI for big jobs & multiple users
  • Balanced Flywheel With Large Glass-Filled Composite Fan
  • Large fins for low pump RPM, improved cooling, longer pump life
  • High Efficiency Finned Copper Intercooler
  • Cooler pumps last longer & run more effectively
  • Extra Capacity Oil Reservoir
  • Ensures lower oil temperatures for longer pump life
  • Automotive-Type 1-Piece Counter-Balanced Crankshaft
  • Provides smooth, trouble-free operation
  • 120 Gallon Air Tank
  • ASME rated for safety; 175 PSI maximum pressure
  • Uniquely Designed Metal Belt Guard
  • Improves pump cooling up to 60°F over other designs
  • 2 Year Limited Factory Warranty
  • Purchase & use of maintenance kit doubles the pump warranty
  • Protects your investment
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

DXCMH9919910
specs product image PID-13657
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
230 Volt AC
Phase
3-Phase
dBA Learn More
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
84
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
25
Recommended Breaker
35 Amp Breaker
Engine
HP
10
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
33.6
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
120 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Stationary
Weight
920 Pounds
Certification
ASME
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
75 Inches
Product Width
29 Inches
Product Height
60 Inches
Power Type
Electric
UPC
846212009352
