Features
Grade
Consumer
Style
Portable - Vertical
CFM
6
Tank Size
30
- Oil Free, Direct Drive Air Compressor
- No oil to add, change, or dispose of for simple maintenance
- Patented Pump Design With 2-Piece Cooling System
- Increased cooling for longer pump life
- Provides highest CFM output in its class: 7.7 @ 40 PSI, 6 CFM @ 90 PSI
- High Flow Regulator
- Provides maximum air flow for peak tool performance; 155 PSI maximum
- UL & CSA Certified Induction Motor
- Delivers performance & reliability over cheaper universal motors
- Plugs into standard 120V 3-prong outlets
- Top Mounted Controls
- Tank & tool pressure gauges can be checked at a glance
- Regulator, on/off switch. & quick coupler are easy to reach even with gloves on
- 30 Gallon Air Tank
- Sturdy wheels for easy transport and storage
*** Please Call for ASME Rated Version Pricing***
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
DXCMLA1983012
General Information
Product Category
Air Compressor - Portable
Motor
Voltage
120 Volt AC
Phase
1-Phase
dBA
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
82
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
20
Engine
HP
1.9
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
6
CFM Rated @
90 PSI
CFM @ 40 PSI
7.7
Pump Material
Aluminum
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
155 PSI
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Direct Drive
Oil Type
Oil Free
Tank
Tank Size
30 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Filter
Regulator
Yes
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
126 Pounds
Certification
UL, CSA
Consumer Warranty
1 Year
Product Length
24.5 Inches
Product Width
23.5 Inches
Product Height
51 Inches
Power Type
Electric
UPC
846212034026
Reviews
(2)
DeWalt DXCMLA1983012 Reviews & Ratings
Product Q&A
Be the First to Ask A Question
Answered by Melissa, the Air Compressor Expert
How-To Articles
How To Pick The Perfect Contractor Air Compressor
From the ground up, construction relies on compressed air. From framing a home ...
Air Compressor Maintenance Checklist
Air compressors are a major investment, and keeping yours running in top condit...
How to Pick the Perfect Portable Single-Stage Compressor
We've all heard that Rome wasn't built in a day, but then again the R...
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

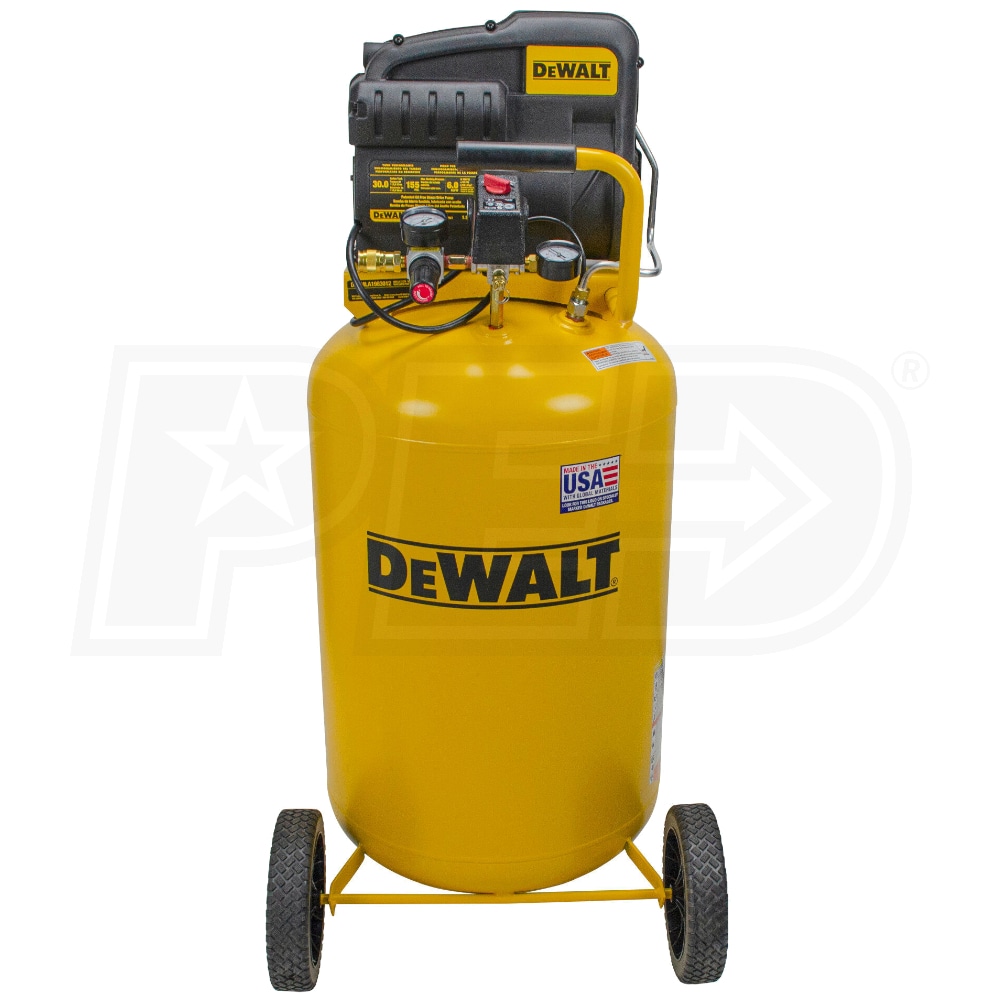

DeWalt 1.9-HP 30-Gallon Portable Air Compressor (120V 1-Phase)
