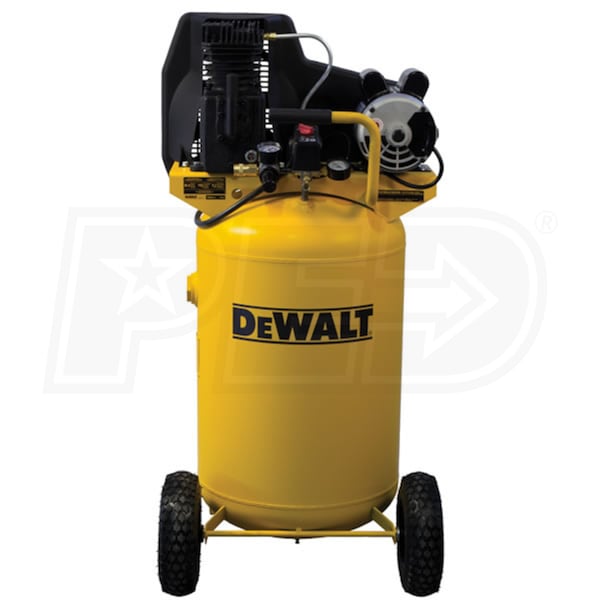

DeWalt 1.9-HP 30-Gallon (Belt-Drive) Dual Voltage Cast-Iron Air Compressor (120/240V 1-Phase)
Model:
DXCMLA1983054
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Optional Accessories
10
Model: TRI-GD-1100P-GL
$65.00
Factory-Direct
Model: MP284701AV
$25.00
Factory-Direct
Model: TRI-GD-2100P-GL
$95.00
Factory-Direct
Model: EATIWH5S1P
$170.16
Factory-Direct
Model: PL155800AV
$50.00
Factory-Direct
Model: DXCM024-0348
$75.99
Factory-Direct
Model: EA1/4X100-B
$43.00
Factory-Direct
Model: IH-BN1
$60.00
Factory-Direct
Model: IH-AFN34
$216.00
Factory-Direct
Model: HYP380502-O
$27.99
Factory-Direct
Features
Grade
Consumer
Style
Portable - Vertical
CFM
5.7
Tank Size
30
- Heavy Duty 1.9 HP, Dual Voltage, Induction Motor
- Provides maximum performance & efficiency
- Wired for 120 Volt outlet, can be converted to 240 Volt operation
- Belt Drive
- Better power transfer & longevity than direct drive units
- Twin Cylinder Pump
- Durable, 1-piece cast iron crankcase
- Aluminum head & valve plate help dissipate heat
- Reliable stainless reed valves & automotive style ball bearings
- 12 inch cast iron flywheel is enclosed for safety
- 30 Gallon Tank
- 7CFM at 40 PSI & 5.7CFM at 90 PSI
- Pneumatic tires are already attached for maximum portability
- Convenient Controls
- Easy to see quick-set regulator, tank, & output gauges
- On/Off switch saves wear & tear on your power cord
- Shipped With Synthetic Oil
- Helps get longest life & best performance from your compressor
- Oil sight glass makes maintenance easier
- Made In U.S.A.
*** This is not ASME Rated, the ASME Version is Model: DXCMLA19830A54***
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
DXCMLA1983054
General Information
Product Category
Air Compressor - Portable
Motor
Voltage
120/240 Volt AC
Phase
1-Phase
dBA
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
78
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Recommended Breaker
Consult Certified Electrician
Engine
HP
1.9
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
5.7
CFM Rated @
90 PSI
CFM @ 40 PSI
7
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
155 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
30 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Filter
Regulator
Yes
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
190 Pounds
Certification
UL, CSA
Consumer Warranty
1 Year
Product Length
24.25 Inches
Product Width
29.25 Inches
Product Height
48.5 Inches
Power Type
Electric
UPC
846212006252
Reviews
(15)
DeWalt DXCMLA1983054 Reviews & Ratings
Customer Rating
4.73
(15 Ratings)
5(11)
4(4)
3(0)
2(0)
1(0)
Verified Buyer
DeWalt Air Compressor
By Robert H.
Texas
Purchased 09/12/2024 |
Review Posted 10/07/2024
Haven't had it long. Works well so far.
Robert H. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use, Price, I39d Buy It Again, High Quality
Cons:
None
Verified Buyer
30 Gal. Belt Drive
By Robert L.
East Hampton, New York
Purchased 05/27/2021 |
Review Posted 06/22/2021
Nice compressor for my purposes. Could use a better drain petcock. Had to fab a 4x4 stand to access the drain. Pretty quiet.
Robert L. Recommends This
Was this review helpful?
Rating Breakdown
4/5
5/5
5/5
4/5
Pros:
Quiet, Easy To Use, Id Buy It Again, Features
Cons:
Expensive
Verified Buyer
Perfect For Me....Almost
By Paul G.
Tamaqua, Pennsylvania
Purchased 03/28/2021 |
Review Posted 04/29/2021
First, I had an issue with the shipper (which doesn’t reflect on ACD). I called them to get an approximate time of delivery since I borrowed a forklift. The compressor didn’t come that day. After having the forklift all day, my friend had to come and trailer it away only to trailer it back again the next day. Also, the compressor’s oil sight glass was clear...couldn’t tell if it was empty or over full. And the oil drain plug wouldn’t budge to see if there was oil in it. I called the DeWalt helpline where I was on hold about 10 minutes. The woman who answered was of no help whatsoever either with the question of the oil or the stuck drain plug. No answer at all about the drain plug, and how could I tell if there was oil in it? “Give it a try and see what happens.” Same advice that was given by my 8 year old grandson. The functionality of the compressor itself is great. It’s quiet and fills fast.
Paul G. Recommends This
Was this review helpful?
Rating Breakdown
5/5
4/5
5/5
5/5
Pros:
Quiet, Easy To Use, Fast, Id Buy It Again
Cons:
Oil Drain Plug Doesnt Budge, Factory Helpline Assistance Useless
Verified Buyer
So Far So Good, Some Initial Quality Complaints.
By Lawrence V.
South Lyon, Michigan
Purchased 11/23/2020 |
Review Posted 12/22/2020
Bought this compressor to replace my SpeedAire unit which is probably at least 30 years old. It came with the house when I bought it. The tank finally rusted out. This new DeWalt compressor is much much much more quiet than my old compressor and is portable because it has wheels, where my old unit did not. Fills up from zero to about 150 psi in around 6 minutes. So far very happy with it, but have only used it a couple of times as it is now winter and I don't do a lot of work in the cold temps. Only a few things to caution you about and this is why I knocked it down a couple of starts for quality. When I went to do the 30 minute break in procedure, I checked the oil level sight glass and could not see any indication of the oil level. I even rocked the unit back and forth trying to see the oil level, Did not know if it was shipped empty or over full to the point where the level was above the glass. Decided to open the drain plug and held a measuring cup under the opening. The drain plug was very hard to turn because of the amount of paint over the plug, but once I added an extension over my allen wrench I was able to break it loose. To my relief oil did came pouring out, but I found that it was actually 4 ounces over full from what the manual says is correct. Poured the correct amount of oil back in and then the level showed where it should have been, halfway up the sight glass. (Wife wasn't too happy that I used one of her measuring cups to check this by the way!). I then opened the tank drain plug to do the run in procedure and at least a quart of water came out all over my garage floor. Not sure why there would be that much water in a new compressor, but perhaps they do a run test at the factory which may have added condensation into the tank. This drain plug is very difficult to get to, so I suggest you add a drain plug extension hose to the bottom of the unit like I did. Under $20 and worth it. The only other thing I had to adjust was the positioning of the blow off valve. The opening of the valve was pointing straight up so that when the compressor reached full pressure it would briefly blow high pressure air straight up just as the compressor stopped running. Not safe in my opinion if you happened to be standing near the compressor when it finished filling. I cranked the valve around a quarter turn to direct the air stream to the side instead of up into my face. Will report back if anything changes once I start using it more. Like it so far.
Lawrence V. Recommends This
Was this review helpful?
Rating Breakdown
5/5
3/5
5/5
5/5
Pros:
Quiet, Easy To Use, Fast, Id Buy It Again
Cons:
Heavy, Expensive
Verified Buyer
Good Compressor
By Roger K.
Everest, Kansas
Purchased 11/25/2017 |
Review Posted 12/23/2017
Excellent driver at delivery. Was in perfect condition. Plumbed a 1/4 inch tubing from bottom for ease of bleeding the tank. Had oil in it, so I ran the 30 minute break-in. Drained the oil and put Dewalt synthetic compressor oil back in it. Have not ran it a lot, but it looks like a good unit and running perfectly.
Roger K. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
4/5
Pros:
Quiet, Easy To Use, High Quality, Exceeded Expectations
Cons:
Heavy
Verified Buyer
Great Machine
By Ken D.
Burke, South Dakota
Purchased 11/01/2017 |
Review Posted 11/24/2017
Looking for a compressor, and one that really did the job.
Ken D. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Quiet, Features, Exceeded Expectations, High Quality
Cons:
none
Verified Buyer
I Upgraded From A Small Over & Under Compressor To This
By Bill K.
St John, Indiana
Purchased 04/12/2017 |
Review Posted 05/15/2017
I'm very pleased with this compressor. I use it to run a rivet gun for light assembly.....and it rarely needs to cycle. Our old compressor was a small over and under model, mostly used by carpenters or roofers to run nail guns. The old compressor cycled constantly, and the noise was very loud.
I'm in heaven with this new compressor, and I am happy I bought it.
I'm in heaven with this new compressor, and I am happy I bought it.
Bill K. Recommends This
Was this review helpful?
Rating Breakdown
4/5
4/5
4/5
4/5
Pros:
Quiet, Easy To Use
Verified Buyer
Good Compressor
By Chris L.
Plainview, New York
Purchased 02/17/2017 |
Review Posted 03/15/2017
Just ran the compressor through its break in and played with it a bit. The good things I like about the compressor: I like it fills to 155 pounds and the volume it has. The gauges on top are easy to read and adjust pressure. It runs pretty quiet- I used to have a non-lubricated compressor before.
The only two issues I see so far with this compressor: 1. The rubber feet on the back of the compressor could be a little higher/thicker. The top of the compressor has some weight and it pushes down on them pretty hard.
2. The bleed valve in on the bottom. I tried reaching under without tilting it and there is no way. So with the weight at the top and trying to tilt it and unscrew the valve it is a little difficult. Would have been nice to leave it on the bottom of the tank but move it to one side for easier access.
Overall I am happy with it.
The only two issues I see so far with this compressor: 1. The rubber feet on the back of the compressor could be a little higher/thicker. The top of the compressor has some weight and it pushes down on them pretty hard.
2. The bleed valve in on the bottom. I tried reaching under without tilting it and there is no way. So with the weight at the top and trying to tilt it and unscrew the valve it is a little difficult. Would have been nice to leave it on the bottom of the tank but move it to one side for easier access.
Overall I am happy with it.
Chris L. Recommends This
Was this review helpful?
Expert Response
You might find one of our Drain Extension Kits to be helpful. In order to work effectively the valve has to be at the lowest point of the tank- but an extension will help you drain the tank with much less effort.
Dale V.
Power Equipment Expert
Rating Breakdown
5/5
4/5
4/5
5/5
Verified Buyer
This Is A Top Of The Line Air Compressor
By Brian C.
cleburne, Texas
Purchased 10/24/2016 |
Review Posted 11/16/2016
This is a very nice air compressor.
Brian C. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Durable, Quiet, Exceeded Expectations, High Quality
Verified Buyer
Shipped with oil?
By Joeshayne M.
Elburn, Illinois
Purchased 08/19/2015 |
Review Posted 09/15/2015
This compressor had everything I wanted. My order arrived on time and in great shape. I read the manual and was ready for the break-in so I looked at the site glass and it was down 3/8 of an inch. I contacted ACDirect and they gave me the # to DeWalt.
Had a hard time trying to get someone to send me some oil since I can't drive.
I never did get any oil from them and I got my daughter from out of town to get me the correct type so I could finally break it in and use it. ACDirect did great but I'm very disappointed with DeWalt with not putting the right amount of oil in it!
Had a hard time trying to get someone to send me some oil since I can't drive.
I never did get any oil from them and I got my daughter from out of town to get me the correct type so I could finally break it in and use it. ACDirect did great but I'm very disappointed with DeWalt with not putting the right amount of oil in it!
Joeshayne M. Recommends This
Was this review helpful?
Manufacturer Response
I am glad you are happy with your purchase. I do apologize for the inconvenience with the oil. Please feel free to send me an email with your address and I will send you out a quart free of charge.
Jeremy.gaitsch@matholdingsinc.com
Jeremy.gaitsch@matholdingsinc.com
Rating Breakdown
4/5
4/5
4/5
4/5
Product Q&A
(2)
Product Questions
Answered by Melissa, the Air Compressor Expert
What is the decibel rating?
Mark
from New York
June 18, 2019
Trying to decide between ingersoll rand p1.5iu-a9 I like the thick tank and wheels very sturdy looking.
Or the Chicago numatic rcp226vp for the higher 7.2 cfm but wheels and tank etc look cheap.
or the dewalt dxcmla1983054 30 gallon dual electric.
Bottom line is which is best made , longest lasting.and does the cfm really matter if the tank is holding roughfully 125lbs regardless. Maybe the slower or lower cfm is more reliable less performance= longer lasting?
Steve
from New Jersey
May 10, 2014
