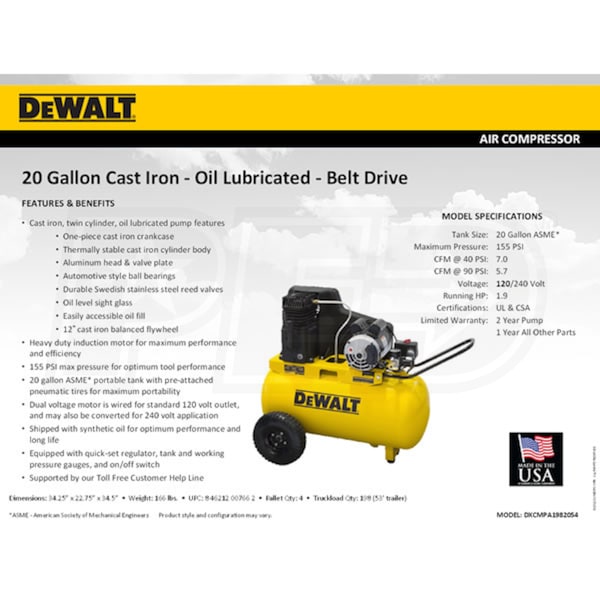

DeWalt 1.9-HP 20-Gallon (Belt-Drive) Dual Voltage Cast-Iron Air Compressor
Model:
DXCMPA1982054
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Consumer
Style
Portable - Horizontal
CFM
5.7
Tank Size
20
- Heavy Duty 1.9 HP, Dual Voltage, Induction Motor
- Provides maximum performance & efficiency
- Wired for 120 Volt outlet, can be converted to 240 Volt operation
- Belt Drive
- Better power transfer & longevity than direct drive units
- Twin Cylinder Pump
- Durable, 1-piece cast iron crankcase
- Aluminum head & valve plate help dissipate heat
- Reliable stainless reed valves & automotive style ball bearings
- 12 inch cast iron flywheel is enclosed for safety
- 20 Gallon Tank
- 7CFM at 40 PSI & 5.7CFM at 90 PSI
- Pneumatic tires are already attached for maximum portability
- Convenient Controls
- Easy to see quick-set regulator, tank, & output gauges
- On/Off switch saves wear & tear on your power cord
- Shipped With Synthetic Oil
- Helps get longest life & best performance from your compressor
- Oil sight glass makes maintenance easier
- Made In U.S.A.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
DXCMPA1982054
General Information
Product Category
Air Compressor - Portable
Motor
Voltage
120/240 Volt AC
Phase
1-Phase
dBA
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
76
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
7.5
Recommended Breaker
Consult Certified Electrician
Engine
HP
1.9
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
5.7
CFM Rated @
90 PSI
CFM @ 40 PSI
7
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
155 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
20 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
166 Pounds
Consumer Warranty
1 Year
Product Length
34.25 Inches
Product Width
22.75 Inches
Product Height
34.5 Inches
Power Type
Electric
UPC
846212007662
