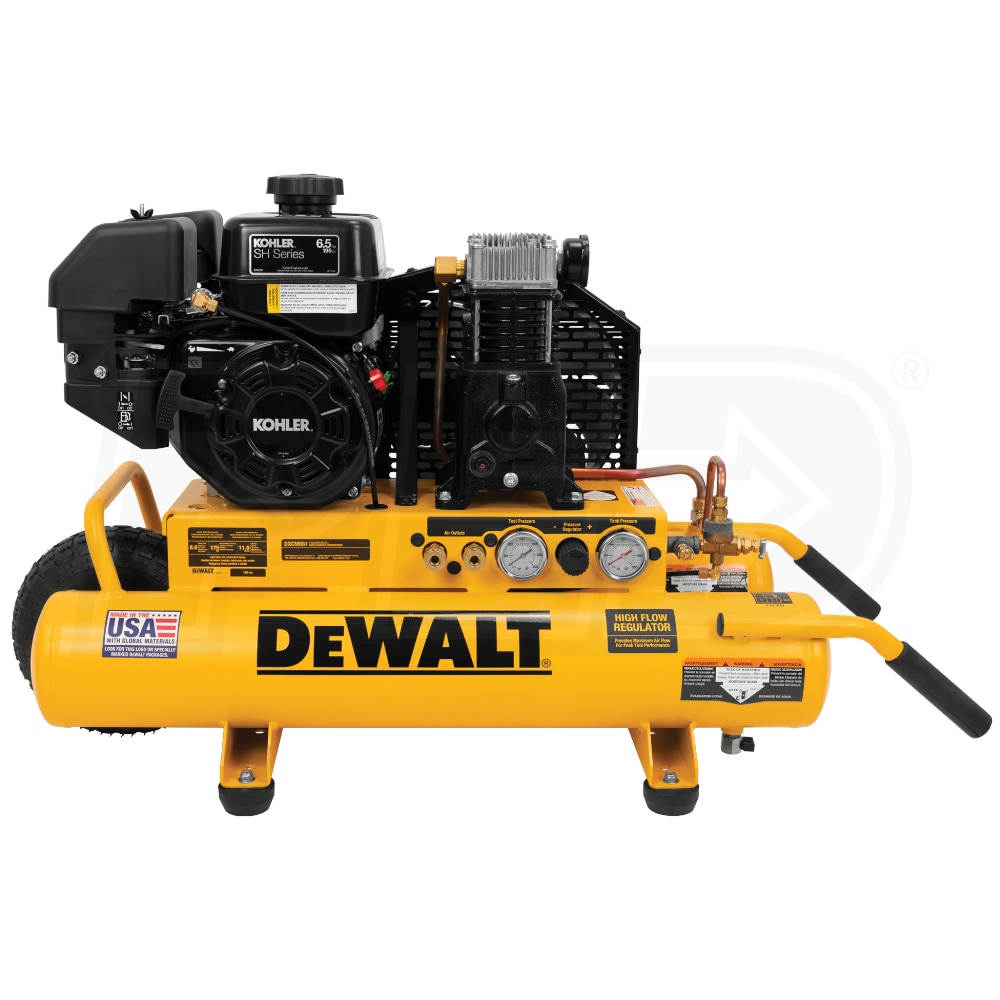

DeWalt 196cc 8-Gallon (Belt Drive) Gas Wheelbarrow Air Compressor w/ Kohler Engine

Model:

DXCMTE6590811

Write A Review
$1,349.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships from DeWalt
Shipping to60601

DeWalt 196cc 8-Gallon (Belt Drive) Gas Wheelbarrow Air Compressor w/ Kohler Engine
DeWalt 196cc 8-Gallon (Belt Drive) Gas Wheelbarrow Air Compressor w/ Kohler Engine
Model: DXCMTE6590811
$1,349.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Contractor

Style

Wheel Barrow

Engine Brand

Kohler

CFM

11.0

Tank Size

8

  • 196cc Kohler SH270 OHV Gas Engine
  • For optimal power transfer and increased efficiency
  • Dual-element air filter for dusty environments
  • Low oil protect helps prevent damage to the engine
  • Durable Oil-Lubricated Twin Cylinder Pump
  • Cast iron crankcase w/ aluminum head and valve plate
  • Helps maximize heat dissipation for increased pump life
  • Aluminum flywheel for maximum air flow
  • Poly-V Pulley & Drive Belt
  • Low vibration design for smoother operation
  • Oil Level Sight Glass & Easily Accessible Oil Fill
  • Allows for simple pump maintenance
  • Fully Enclosed Metal Belt Guard
  • Covers & protects moving parts; provides operator safety
  • 175 PSI Maximum Pressure
  • 13.2 CFM at 40 PSI; 11.0 CFM at 90 PSI powers many tools
  • Integrated Control Panel w/ On-Board Controls
  • (2) Quick-coupler air outlets for ease of use
  • Liquid filled tool & tank gauges for more accurate readings
  • High flow regulator allows maximum air flow for peak tool performance
  • Quarter Turn Tank Drain Valve
  • Quick & thorough tank draining prevents rust
  • 10" Turf Tread Tire
  • Center mounted for easy mobility at job sites
  • Thick Vibration Isolators On Tank Feet
  • Controls vibration & helps prevent crawling
  • Generous Factory Warranties
  • 2 Year limited pump & 1 Year limited all other
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

DXCMTE6590811
specs product image PID-124803
General Information
Product Category
Air Compressor - Portable
Engine
CC
196
Auto Idle
No
Engine Brand
Kohler
Starting System
Recoil Start
Engine Low Oil Shut-off
Yes
Fuel Tank Size
.95
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
11.0
CFM Rated @
90 PSI
CFM @ 40 PSI
13.2
Pump Material
Solid Cast Iron
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
8 Gallons
Tank Outlet
3/8 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
185 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
46 Inches
Product Width
20 Inches
Product Height
29 Inches
Power Type
Gas
UPC
045564645359
