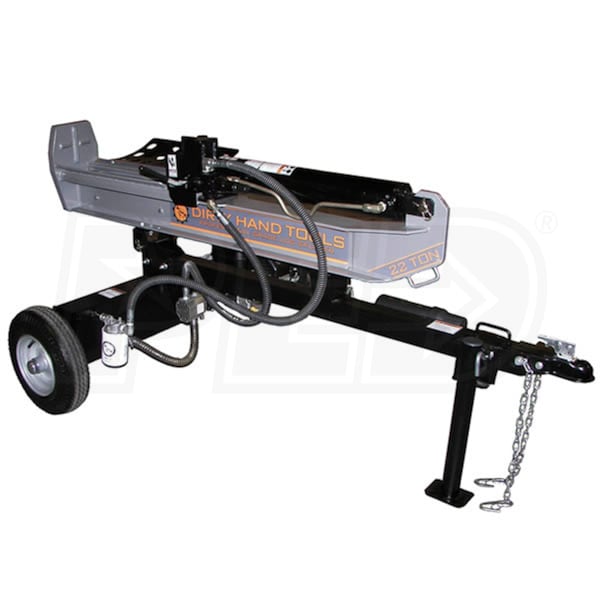

Dirty Hand Tools 22-Ton Horizontal / Vertical Gas Log Splitter

Model:

100171

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Dirty Hand Tools 22-Ton Horizontal / Vertical Gas Log Splitter
Dirty Hand Tools 22-Ton Horizontal / Vertical Gas Log Splitter
Model: 100171
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

  • 22-Ton Splitting Force
  • Plenty of power to split hardwood with ease
  • 6.5 Gallon Hydraulic System Capacity
  • 5-gallon reservoir
  • 13-gallon per minute, 2-stage pump
  • 6.5HP/196cc Kohler SH265 4-Cycle Engine
  • Fast 11 second cycle time - down and back
  • Patented Full Length Beam
  • Handle up to 25-inch logs with ease
  • 8-inch foot plate and removable stripper plates
  • Includes log catcher and built-in log cradle
  • 8-Inch High Wedge
  • Heat treated steel for maximum durability
  • 16-Inch O.D. High Speed Road Tires
  • DOT approved
  • 2-Inch Ball Coupler With Safety Chains
  • Flip down stand
  • 3-2-1 Warranty
  • 3 year warranty on workmanship
  • 2 year warranty on the engine; one year warranty on hydraulics
California residents see
Warning: This product can expose you to chemicals including Carbon monoxide which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

100171
specs product image PID-11198
Engine
Engine Brand
Kohler
Starting System
Recoil Start
HP
6.5 HP
CC
196 CCs
Fuel Tank Size
0.95 Gallons
Low Oil Shutdown
Yes
Hydraulics
Auto Return
Yes
Hydraulic Filter
Yes
Hydraulic Oil Included
No
Hydraulic Reservoir Size
5 Gallons
Max Pump PSI
3400 PSI
Cylinder Diameter
4 Inches
Cylinder Length
24 Inches
Cycle Time
11 Seconds
Tonnage
22 Tons
Overview
Assembly Required
Yes
Weight
595 Pounds
Consumer Warranty
3 Years
Product Length
88.0 Inches
Product Width
46.0 Inches
UPC
856206004003
Wedge
Wedge Material
Steel
Wedge Size
8 Inches
Wedge Style
2-way
Replaceable Wedge
Yes
Sharpenable Wedge
Yes
Log Capacity
Max Log Length
25 Inches
Towing
Towable
Yes
D.O.T. Lights
No
Fenders
No
Hitch Type
2 Inch Ball Hitch
Max Towing Speed
45 MPH
Accessories
Jack Stands
Included
Log Cradles
Included
Wood Type Hardness Rating 6" Seasoned 6" Green 12" Seasoned 12" Green 24" Seasoned 24" Green
Alder 590 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Ash 1320 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Aspen 420 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Basswood 410 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Beech 1300 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Birch 1470 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Boxelder 720 Lbs. 6+ Tons 8+ Tons 10+ Tons 13+ Tons 27+ Tons 30+ Tons
Buckeye 350 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Catalpa 550 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Cedar 900 Lbs. 6+ Tons 8+ Tons 15+ Tons 20+ Tons 27+ Tons 30+ Tons
Cherry 950 Lbs. 6+ Tons 8+ Tons 15+ Tons 20+ Tons 27+ Tons 30+ Tons
Cottonwood 430 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Dogwood 2150 Lbs. 10+ Tons 13+ Tons 22+ Tons 27+ Tons 30+ Tons 35+ Tons
Elm 1540 Lbs. 10+ Tons 13+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Fir 710 Lbs. 6+ Tons 8+ Tons 10+ Tons 13+ Tons 27+ Tons 30+ Tons
Hickory 1820 Lbs. 10+ Tons 13+ Tons 22+ Tons 27+ Tons 30+ Tons 35+ Tons
Locust 1700 Lbs. 10+ Tons 13+ Tons 22+ Tons 27+ Tons 30+ Tons 35+ Tons
Magnolia 1020 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Maple 1450 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Oak 1620 Lbs. 10+ Tons 13+ Tons 22+ Tons 27+ Tons 30+ Tons 35+ Tons
Pine 860 Lbs. 6+ Tons 8+ Tons 10+ Tons 13+ Tons 27+ Tons 30+ Tons
Poplar 540 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Spruce 510 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Sweet Gum 850 Lbs. 6+ Tons 8+ Tons 10+ Tons 13+ Tons 27+ Tons 30+ Tons
Walnut 1010 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
