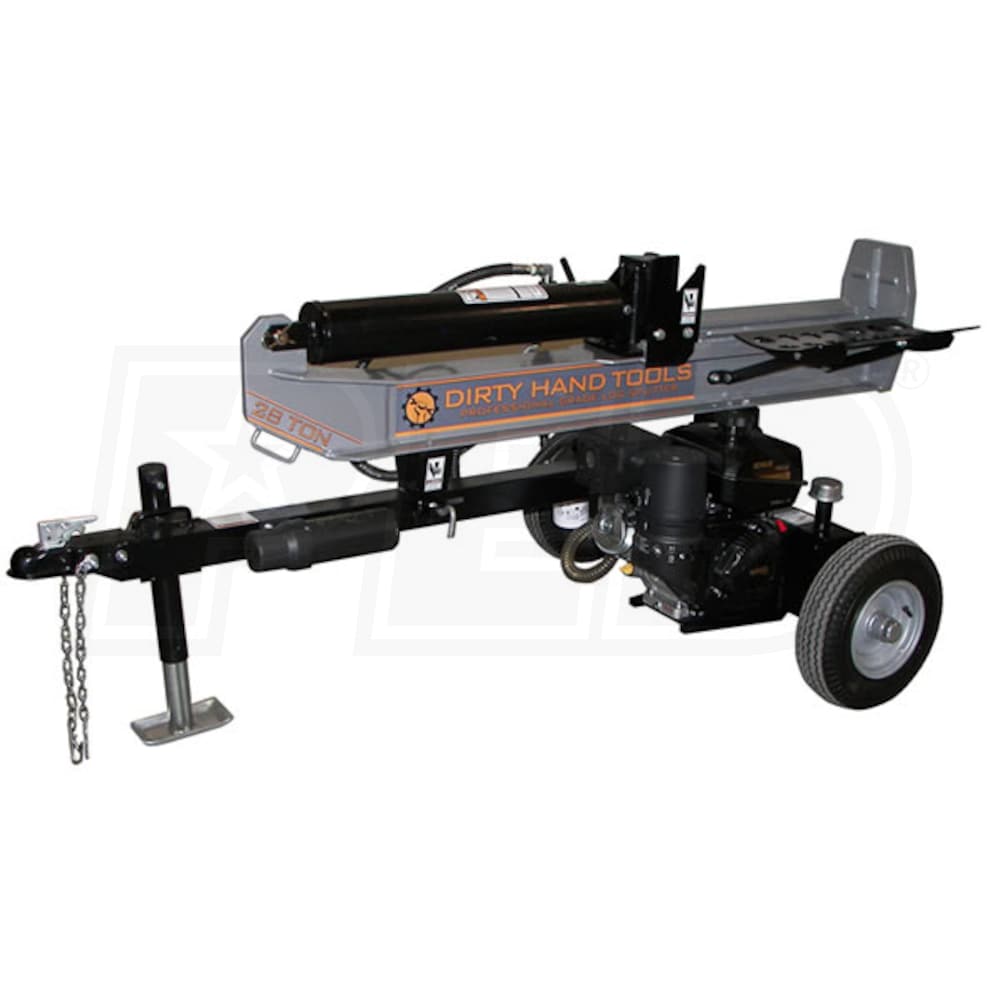

Dirty Hand Tools 28-Ton Horizontal / Vertical Gas Log Splitter

Model:

100342

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
View Boss Industrial 37-Ton Horizontal/Vertical Gas Log Splitter
Model:
WD37T
$2,249.99
Product Discontinued
Dirty Hand Tools 28-Ton Horizontal / Vertical Gas Log Splitter
Dirty Hand Tools 28-Ton Horizontal / Vertical Gas Log Splitter
Model: 100342
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

  • 28-Ton Splitting Force
  • Converts easily from horizontal to vertical position
  • No more lifting those heavy logs onto the cradle
  • 8 Gallon Hydraulic System Capacity
  • 6.55-gallons operational
  • 17.5-gallon per minute, 2-stage pump
  • 9.5HP/277cc Kohler CH3955 4-Cycle Engine
  • Fast 10.5 second cycle time - down and back
  • Patented Full Length Beam
  • Handle up to 25-inch logs with ease
  • 8-inch foot plate and removable stripper plates
  • Includes log catcher and built-in log cradle
  • 8-Inch High Wedge
  • Heat treated steel for maximum durability
  • 16-Inch O.D. High Speed Road Tires
  • 2-inch ball coupler with safety chains
  • Flip down stand
  • 3-2-1 Warranty
  • 3 year warranty on workmanship
  • 2 year warranty on the engine; one year warranty on hydraulics

Specifications

100342
specs product image PID-11200
Engine
Engine Brand
Kohler
Starting System
Recoil Start
HP
9.5 HP
CC
277 CCs
Hydraulics
Auto Return
Yes
Hydraulic Oil Included
No
Hydraulic Reservoir Size
5 Gallons
Cylinder Diameter
4.5 Inches
Cylinder Length
24 Inches
Cycle Time
10.5 Seconds
Tonnage
28 Tons
Overview
Assembly Required
Yes
Weight
675 Pounds
Made in USA
No
Consumer Warranty
3 Years
UPC
856206004027
Wedge
Wedge Material
Steel
Wedge Size
8 Inches
Log Capacity
Max Log Length
25 Inches
Towing
Towable
Yes
Fenders
No
Hitch Type
2 Inch Ball Hitch
Accessories
Jack Stands
Included
Log Cradles
Included
Wood Type Hardness Rating 6" Seasoned 6" Green 12" Seasoned 12" Green 24" Seasoned 24" Green
Alder 590 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Ash 1320 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Aspen 420 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Basswood 410 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Beech 1300 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Birch 1470 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Boxelder 720 Lbs. 6+ Tons 8+ Tons 10+ Tons 13+ Tons 27+ Tons 30+ Tons
Buckeye 350 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Catalpa 550 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Cedar 900 Lbs. 6+ Tons 8+ Tons 15+ Tons 20+ Tons 27+ Tons 30+ Tons
Cherry 950 Lbs. 6+ Tons 8+ Tons 15+ Tons 20+ Tons 27+ Tons 30+ Tons
Cottonwood 430 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Dogwood 2150 Lbs. 10+ Tons 13+ Tons 22+ Tons 27+ Tons 30+ Tons 35+ Tons
Elm 1540 Lbs. 10+ Tons 13+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Fir 710 Lbs. 6+ Tons 8+ Tons 10+ Tons 13+ Tons 27+ Tons 30+ Tons
Hickory 1820 Lbs. 10+ Tons 13+ Tons 22+ Tons 27+ Tons 30+ Tons 35+ Tons
Locust 1700 Lbs. 10+ Tons 13+ Tons 22+ Tons 27+ Tons 30+ Tons 35+ Tons
Magnolia 1020 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Maple 1450 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Oak 1620 Lbs. 10+ Tons 13+ Tons 22+ Tons 27+ Tons 30+ Tons 35+ Tons
Pine 860 Lbs. 6+ Tons 8+ Tons 10+ Tons 13+ Tons 27+ Tons 30+ Tons
Poplar 540 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Spruce 510 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Sweet Gum 850 Lbs. 6+ Tons 8+ Tons 10+ Tons 13+ Tons 27+ Tons 30+ Tons
Walnut 1010 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
