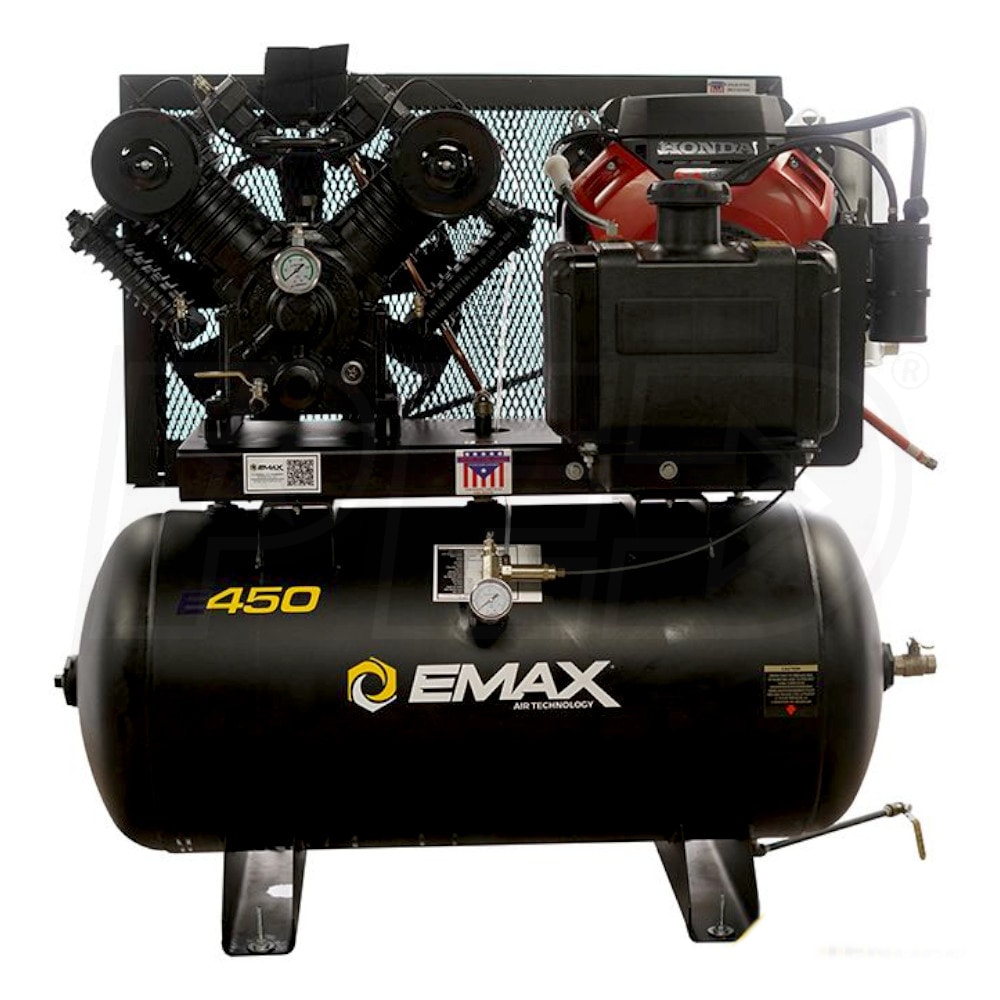

EMAX 18-HP 30-Gallon Two-Stage Truck Mount Air Compressor w/ Electric Start Honda GX Engine
Model:
EGES1830ST
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Contractor
Style
Truck Mount
Engine Brand
Honda GX
CFM
39
Tank Size
30
- Gas Drive Series Two-Stage Cast Iron Pump
- Quiet, low RPM design
- Rated at up to 70,000 hours* (Based on B-10 Bearing Life Rating)
- 18-HP Honda GX Engine w/ Electric Start
- OHV design provides excellent torque and fuel efficiency
- Provides long life and proven durability
- 5 gallon gas tank lets you work longer between refills
- Flow-Tek - Concentric Disc Valves
- Delivers maximum air flow & reliability with low replacement cost
- Cool-Tek - The Coolest Running Compressors In The Industry
- 35% lower operating temperature
- Reduces moisture build up & extends pump life
- Air-Stream Technology
- Provides up to 50% longer pump life
- Belt Tension Adjuster - Fast, Easy "One Turn" Design
- Reduces vibration and extends belt life
- Gate Valve Oil Drain
- Provides quick, clean oil changes
- 30-Gallon Truck-Mount Horizontal Air Receiver
- 5 year Factory Warranty on pump & tank; 2 years on other components
- ***Electric Start Battery & Cables Not Included; Must Be Purchased Separately***
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
EGES1830ST
General Information
Product Category
Air Compressor - Portable
Engine
HP
18
Auto Idle
Yes
Engine Brand
Honda GX
Starting System
12-Volt Button Start w/ Recoil
Engine Low Oil Shut-off
Yes
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
39
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
30 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
540 Pounds
Certification
UL, CSA, ASME
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
44 Inches
Product Width
23 Inches
Product Height
44 Inches
Power Type
Gas
UPC
815002010281
