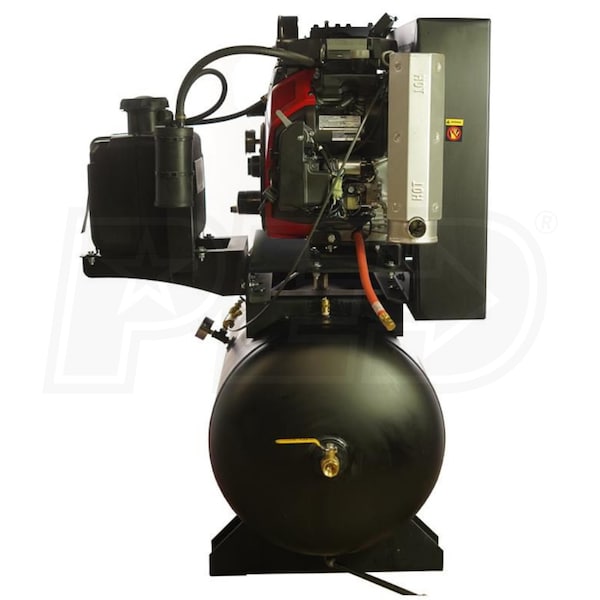

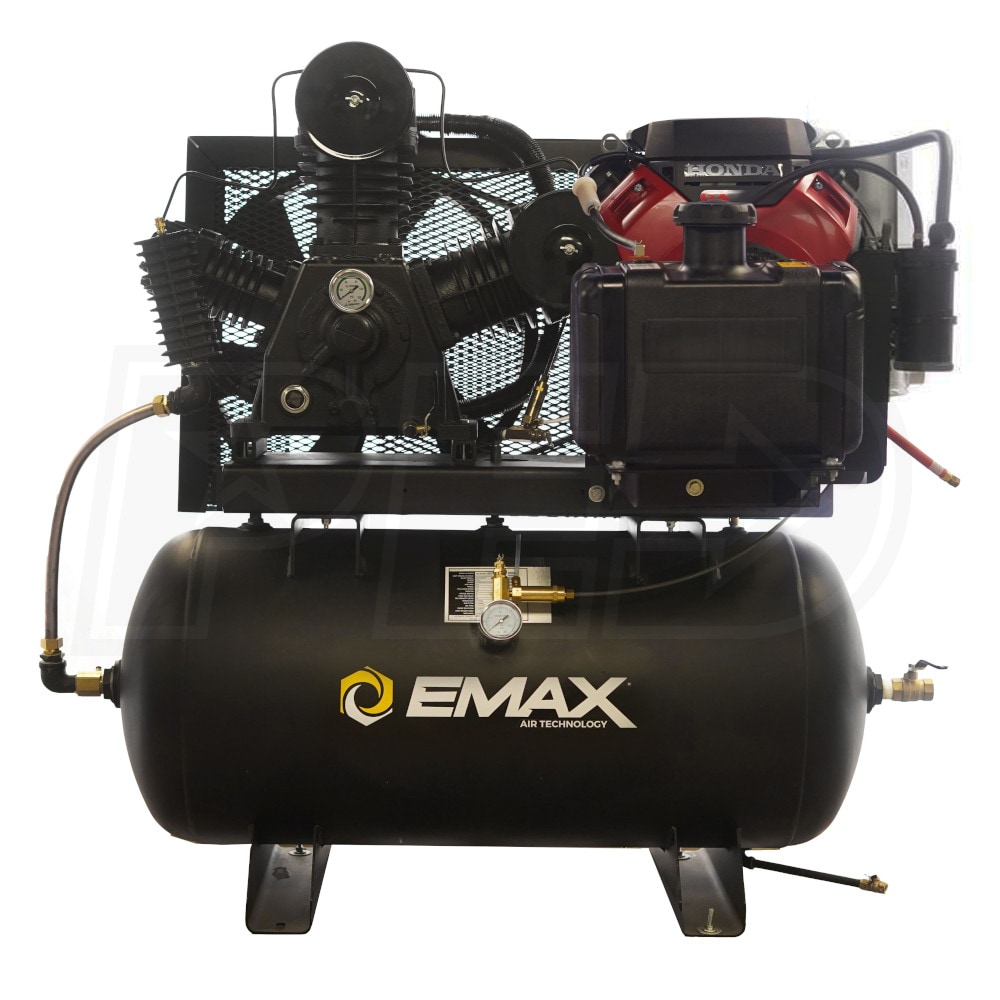

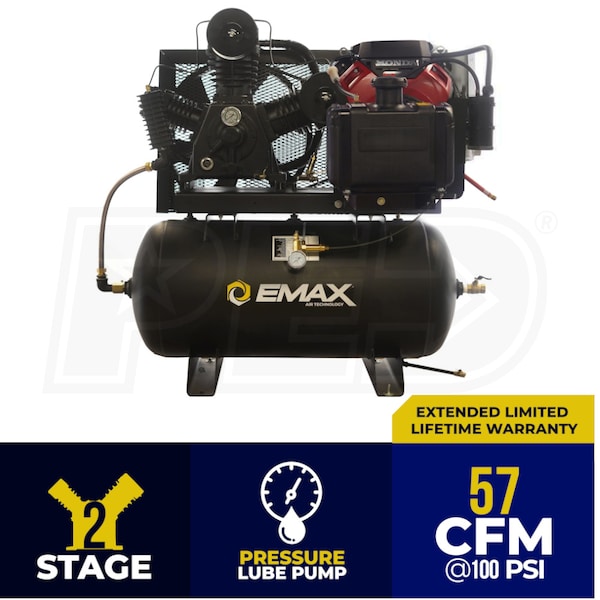

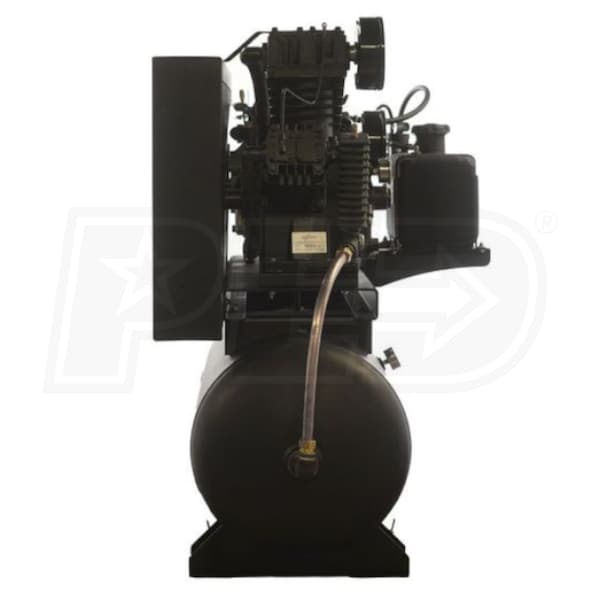

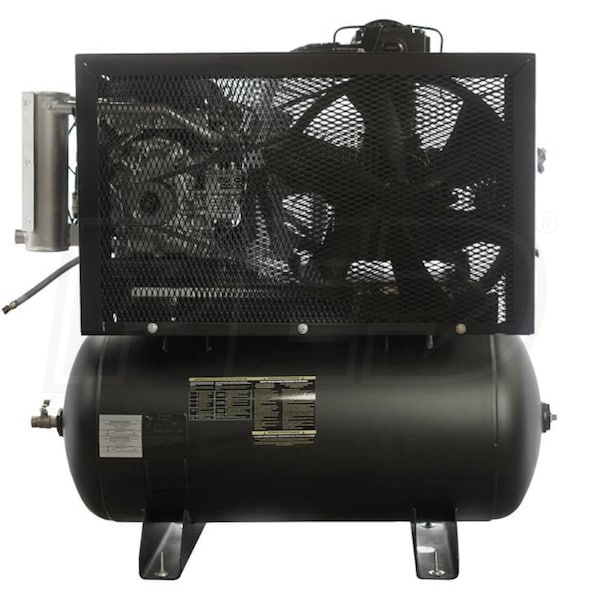

EMAX 24-HP 60-Gallon Two-Stage Truck Mount Air Compressor w/ Electric Start Honda Engine
Model:
EGES2460ST
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Contractor
Style
Truck Mount
Engine Brand
Honda GX
CFM
57
Tank Size
60

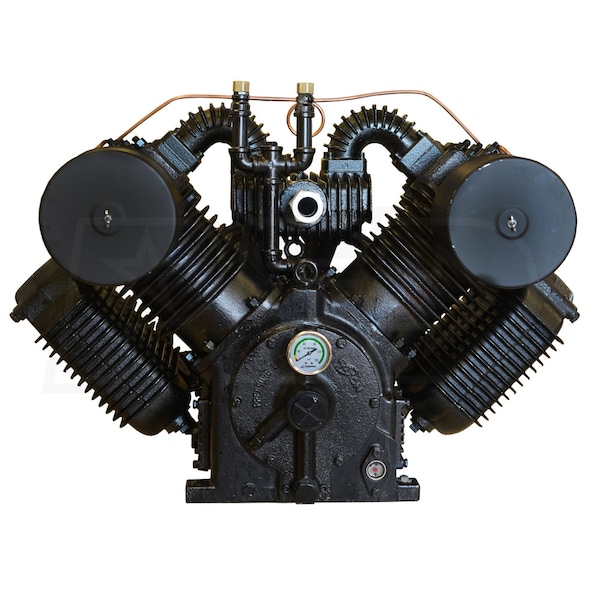

- Gas Drive Series Two-Stage Cast Iron Pump
- Site glass to view oil level, quiet design and low RPM
- Head unloaders allow for load-less starting and help cool the pump

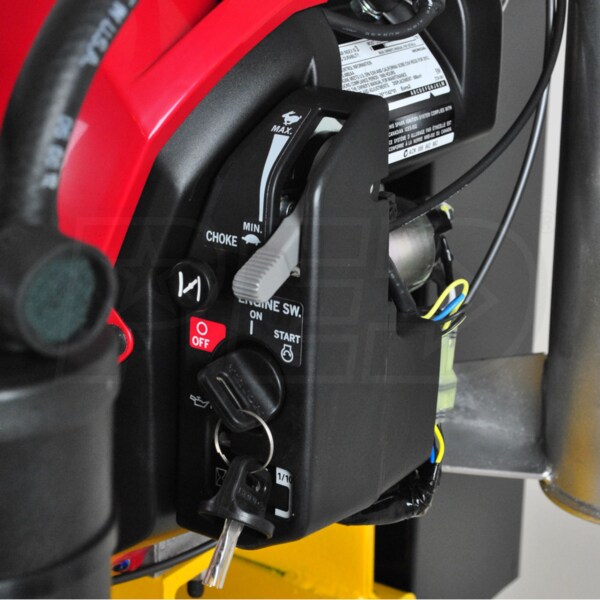

- 24-HP Honda GX 630 Commercial-Grade Engine w/ Electric Start
- Includes 5 gallon EPA approved gas tank
- Easy Start convenience, greater fuel efficiency, longer run time
- Ultimate reliability and low oil shutdown for maximum protection
- Air-Stream Technology
- Provides up to 50% longer pump life
- Cool-Tek The Coolest Running Compressors In The Industry
- 35% lower operating temperature
- Reduces moisture build up & extends pump life
- Belt Tension Adjuster - Fast, Easy "One Turn" Design
- Reduces vibration and extends belt life
- Twin belts offer better belt grip and longer belt drive
- 60-Gallon Truck-Mount Horizontal Air Receiver
- Raised platform pulls air under the pump
- 1/4-inch ball valve drain and large pressure gauge
- 1 Year Standard and 5 Year Extended with Purchase of Maintenance Kit
- ***Electric Start Battery & Cables Not Included; Must Be Purchased Separately***
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
EGES2460ST
General Information
Product Category
Air Compressor - Portable
Engine
HP
24
CC
688
Auto Idle
Yes
Engine Brand
Honda GX
Starting System
12-Volt Button Start
Engine Low Oil Shut-off
Yes
Consumer Engine Warranty
3
Commercial Engine Warranty
3
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
57
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
60 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
940 Pounds
CARB Compliant
Yes
Certification
EPA, CSA, ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
35 Inches
Product Width
57 Inches
Product Height
50 Inches
Power Type
Gas
UPC
810070051488
