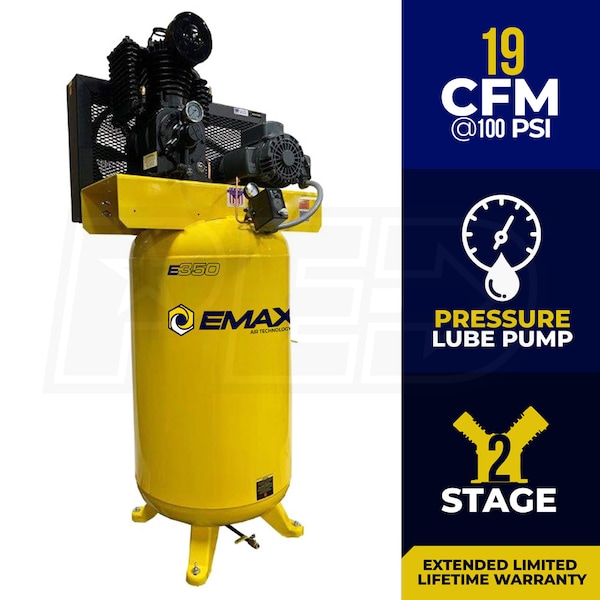

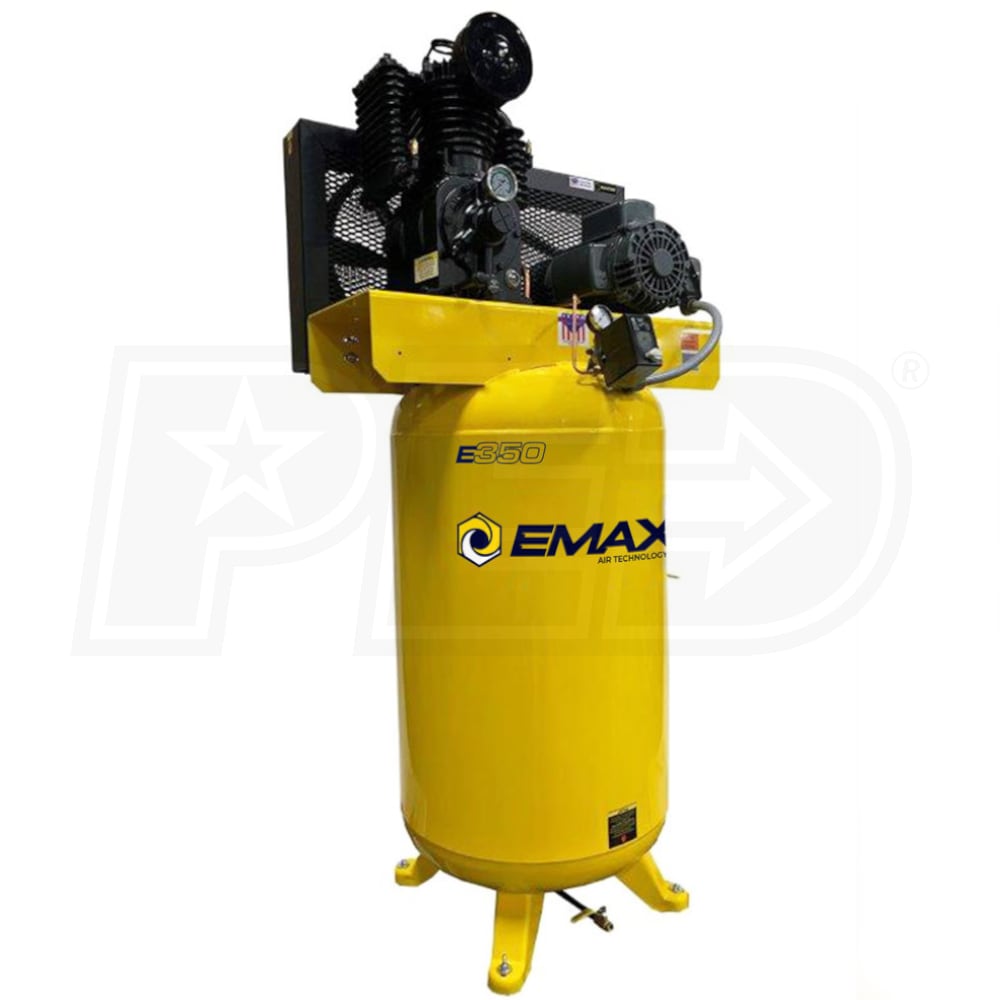

EMAX Industrial 5-HP 80-Gallon Two-Stage Air Compressor (208/230V 1-Phase)

Model:

EI05V080I1

Write A Review
$2,899.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 4-6 Weeks

EMAX Industrial 5-HP 80-Gallon Two-Stage Air Compressor (208/230V 1-Phase)
EMAX Industrial 5-HP 80-Gallon Two-Stage Air Compressor (208/230V 1-Phase)
Model: EI05V080I1
$2,899.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Voltage

208-230 Volt AC

Phase

1-Phase

CFM

19

Tank Size

80

  • Pressure Lubricated Two-Stage Cast Iron Pump
  • Durable & reliable; runs at 650 RPM
  • Rated at up to 70,000 hours* (Based on B-10 Bearing Life Rating)
  • All Steel Rebuildable Connecting Rods
  • Built for easy maintenance, maximum performance & durability
  • Cool-Tek - The Coolest Running Compressors In The Industry
  • Air Stream Technology provides 35% lower operating temperature
  • Reduces moisture build up & extends pump life
  • 5-HP Industrial Grade 1750 RPM Motor
  • Low RPM design extends motor life
  • Also provides high starting & running torque
  • Gate Valve Oil Drain
  • Provides quick, clean oil changes
  • ASME Rated Tank
  • 3/4" air outlet; rated 175 PSI maximum
  • 1 Year Standard, 5 Year Extended, Extended Limited Lifetime Pump Warranty
  • Please See Warranty Sheet For More Information
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

EI05V080I1
specs product image PID-11897
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
24
Recommended Breaker
40 Amp Breaker
Engine
HP
5
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
19
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Stationary
Weight
678 Pounds
Certification
UL,CSA, ASME
Consumer Warranty
1 Year
Product Length
34 Inches
Product Width
24 Inches
Product Height
73 Inches
Power Type
Electric
UPC
815002012032
Additional Model Numbers

PE05V080I1, EI05V080I1

Reviews

(1)
EMAX EI05V080I1 Reviews & Ratings

Product Q&A

(1)
Expert avatar photo
Product Questions Answered by Melissa, the Air Compressor Expert
Hi Steve, I am interested in this compressor but would like to run maximum 120 psi. Is the unit capable of lowering the PSI to run at 120 psi without buying an additional regulator?
Craig Brown
from Washington
April 23, 2016
