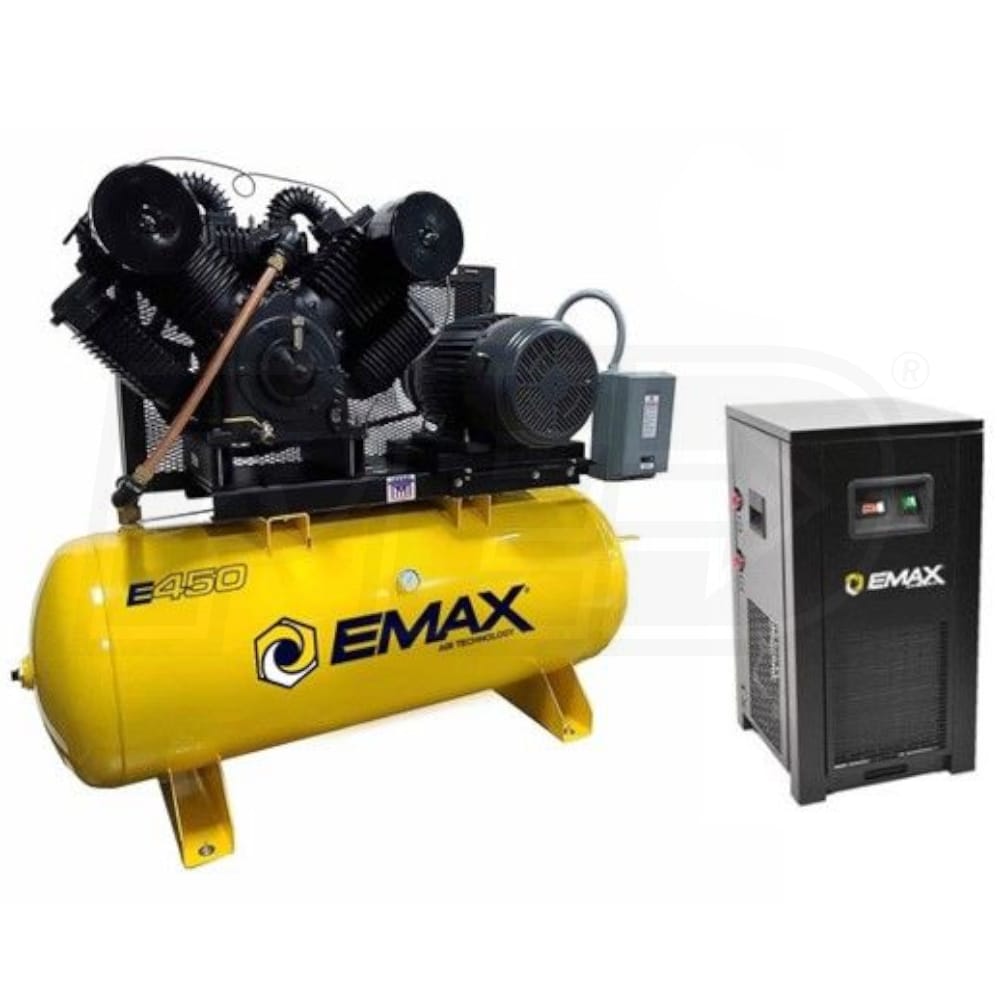

EMAX Industrial Plus 25-HP 120-Gallon Two-Stage Air Compressor w/ Dryer (208V 3-Phase)

Model:

EP25H120V3PKG-208

Write A Review
$11,199.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 4-6 Weeks

EMAX Industrial Plus 25-HP 120-Gallon Two-Stage Air Compressor w/ Dryer (208V 3-Phase)
EMAX Industrial Plus 25-HP 120-Gallon Two-Stage Air Compressor w/ Dryer (208V 3-Phase)
Model: EP25H120V3PKG-208
$11,199.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Voltage

208 Volt AC

Phase

3-Phase

CFM

96

Tank Size

120

  • Unit Is Too Large For Liftgate Service, Must Have A Shipping Dock Or Forklift
  • Piston Series Two-Stage Cast Iron Pump With Built-In Inter-Cooler & After-Cooler

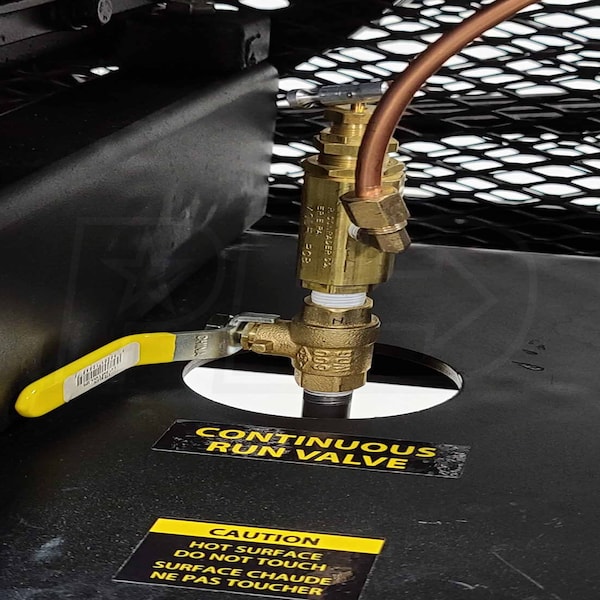

  • Dual control design allows for automatic or continuous run
  • Rated at up to 70,000 hours* (Based on B-10 Bearing Life Rating)

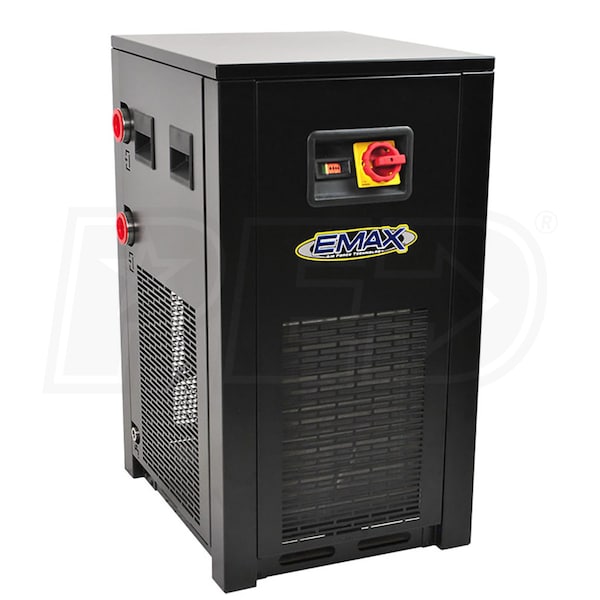

  • EMAX EDRCF1150144 144 CFM Refrigerated Air Dryer w/ Inner Cooler (115V)
  • Air is filtered of all solid particles 0.01 micron and larger
  • Energy efficient with coalescing filter built in auto drain
  • Keep water, oil, and dirt out of your compressed air; drier air prolongs the life of your machinery & tools
  • Ram-Tek - Solid Steel, Heavy Gauge Rods
  • All steel connecting rods with replaceable rod bearing inserts can be rebuilt for maximum durability
  • Raised Mounting Platform
  • Cooler oil temperatures from 100% constant flow of cool air from the flywheel fan to top, sides, & underside of crankcase
  • Cool-Tek - The Coolest Running Compressors In The Industry

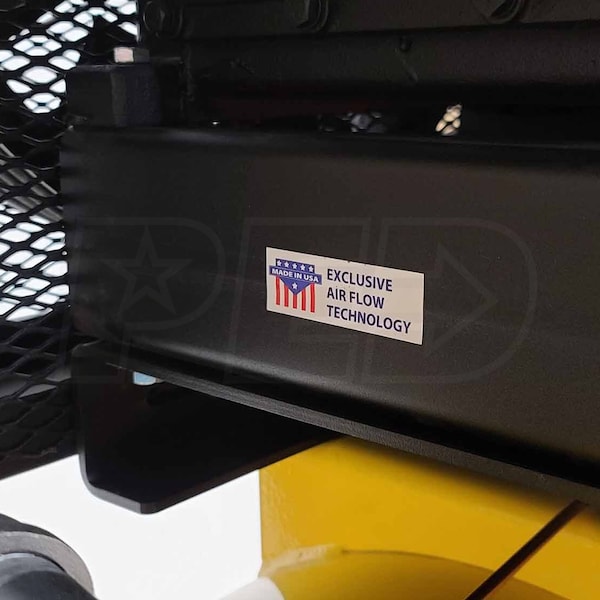

  • Air Stream Technology provides 35% lower operating temperature, reduces moisture build up & extends pump life
  • Oil gate valve & sight gauge provide quick, clean oil changes
  • 25-HP Industrial Grade 1750 RPM Motor
  • Low RPM design extends useful life, includes pre-wired magnetic starter
  • Belt tension adjuster for fast, easy "one turn" design

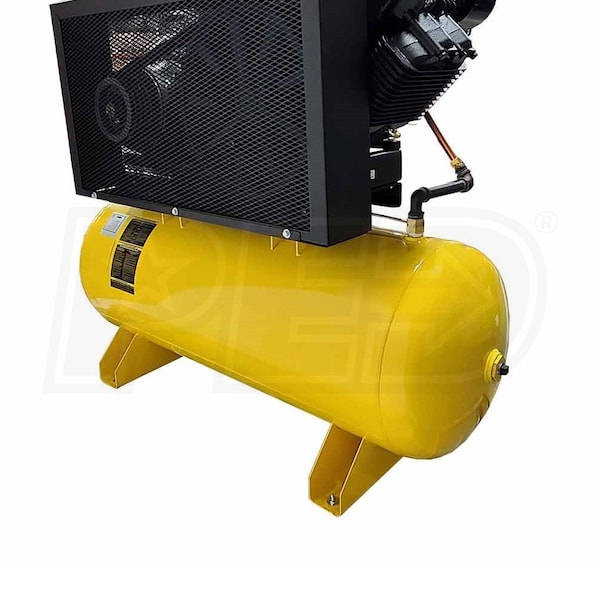

  • 120 Gallon ASME Receiver With Auto Tank Drain
  • 110V dual timer controlled drain eliminates daily maintenance
  • 1 Year Standard, 5 Year Extended, Extended Limited Lifetime Pump Warranty
  • Please See Warranty Sheet For More Information
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

EP25H120V3PKG-208
specs product image PID-78113
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
208 Volt AC
Phase
3-Phase
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
60
Recommended Breaker
80 Amp Breaker
Engine
HP
25
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
96
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
120 Gallons
Tank Included
Yes
Tank Outlet
2 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
Yes
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
Yes
Air Filter
Yes
Air Dryer
Air Dryer CFM Learn More
Air Dryer CFM
All compressed air dryers have a maximum drying capacity expressed in Cubic Feet Per Minute (CFM)
144
Max Inlet Temp. Rating Learn More
Max Inlet Temp. Rating
The highest temperature the compressed air can be passing through the dryer for the dryer to operate properly and effectively
140
Max Ambient Temp. Rating Learn More
Max Ambient Temp. Rating
Ambient temperature is the air temperature of any object or environment where equipment is stored
122
Inlet Fittings
1-1/2"
Outlet Fittings
1-1/2"
Aftercooler
Yes
Post-Filter
Yes
Auto Drain Learn More
Auto Drain
Auto drain or drip leg drain used to drain air line of condensate and water
Yes
Overview
Product Category
Air Compressor - Stationary
Weight
1636 Pounds
Certification
UL, CSA, ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
30 Inches
Product Width
74 Inches
Product Height
61 Inches
Power Type
Electric
UPC
815002014128
