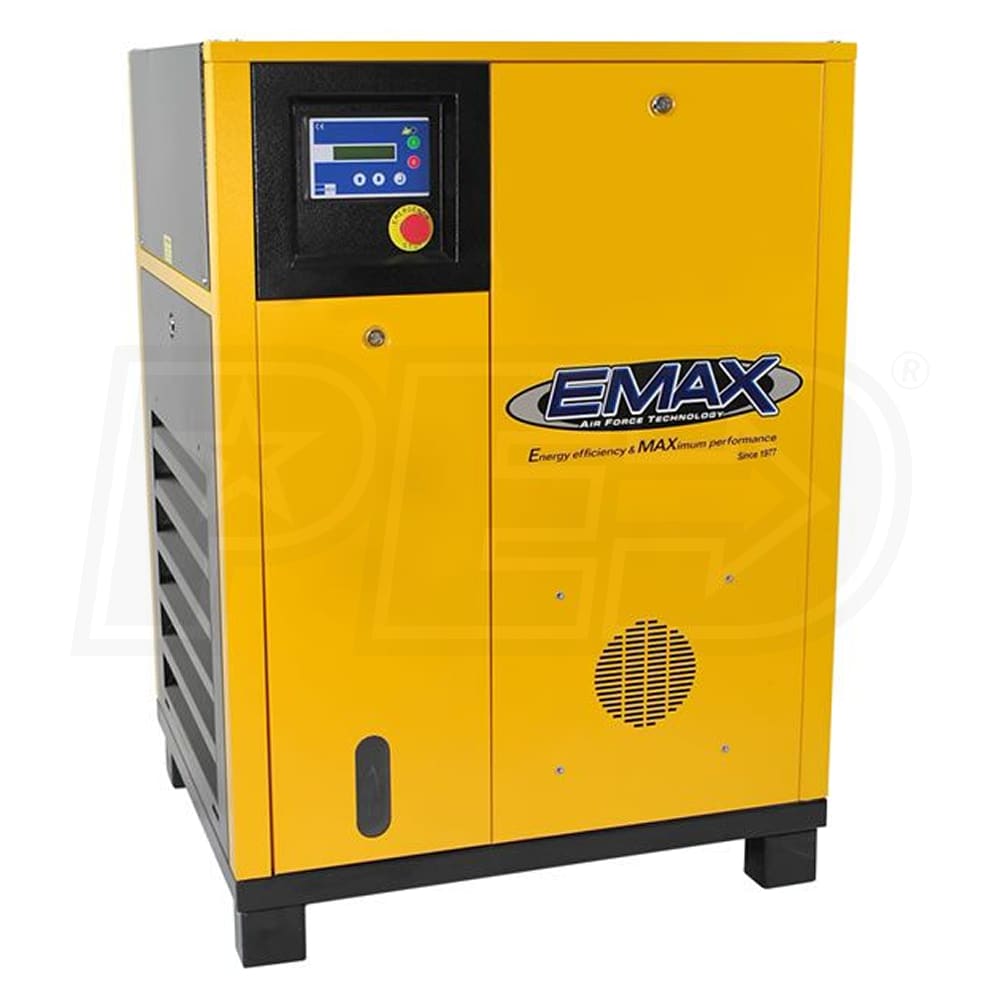

EMAX 5-HP Variable Speed Drive Rotary Screw Air Compressor (208/230V 1-Phase)
Model:
ERV0050001
+
Share This Product
Recommended Accessories

Expert Recommended Accessories
Selected by Melissa, our Expert
Optional Accessories
4
$692.00
Factory-Direct
Model: OILROT103G
$129.00
Factory-Direct
$3,597.00
Factory-Direct
Frequency
Frequency
Select how often you will receive your air filters, we offer many options to meet your air quality standards.
Quantity
Quantity
This will be how many filters you receive per delivery.
Quantity
$484.83
Factory-Direct
Features
Grade
Commercial
Voltage
208-230 Volt AC
Phase
1-Phase
Tank Size
0
- Rotary Screw Air System
- 208/230V Single phase, variable speed drive
- Drive-Tek
- Reduces energy demand up to 33%
- Standard Y-Delta Soft Start Motor
- Provides reduced energy demand and amp draw on start up

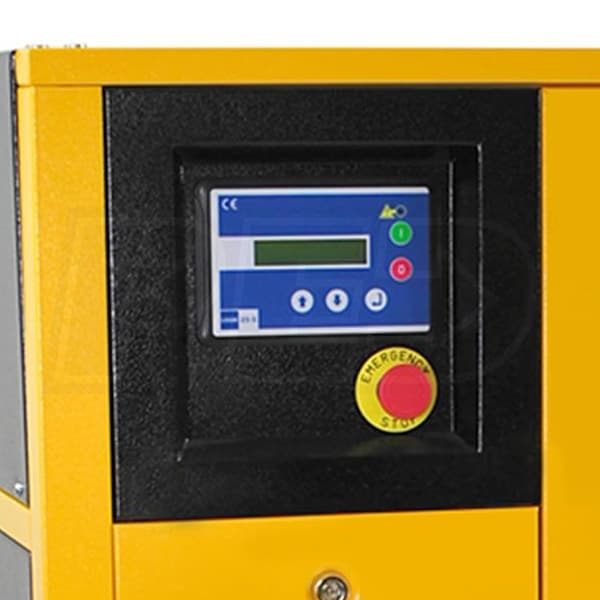

- PLC Controller - Advanced Maintenance Intelligence Monitor
- Maintenance, temperature, oil level, filtration and hours
- Remote start/stop
- Spin-Tek
- Unique easy access oil filters & air/oil separators
- Requires no tools to remove/install saving time and money
- Precision Engineered Rotary Air End
- Highly efficient design provides maximum discharge
- Heavy Duty Sound Attenuated Cabinet
- Provides lower decibel operation than a typical rotary screw
- Must-Have Maintenance Kit To Keep Your EMAX Warranty In Force
- SERVICEKIT001A Maintenance Kit required to validate warranty coverage
- Designed For Use With Stationary Air Receiver (Not Included)
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
ERV0050001

Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
5
Pump
CFM Rated @
90 PSI
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
150 PSI
Pump Type
Rotary
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
0 Gallons
Tank Included
No
Tank Outlet
3/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Accessories
Air Dryer
No
Air Filter
Yes
Overview
Weight
880 Pounds
Certification
UL
Consumer Warranty
10 Years
Commercial Warranty
2 Years
Product Length
33 Inches
Product Width
24 Inches
Product Height
42 Inches
Power Type
Electric
UPC
815002018294
