EMAX 15-HP Variable Speed Tankless Rotary Screw Air Compressor (208/230 1-Phase)

Model:

ERV0150001

Write A Review
$13,699.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-3 Weeks

EMAX 15-HP Variable Speed Tankless Rotary Screw Air Compressor (208/230 1-Phase)
EMAX 15-HP Variable Speed Tankless Rotary Screw Air Compressor (208/230 1-Phase)
Model: ERV0150001
$13,699.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Voltage

230 Volt AC

Phase

1-Phase

CFM

62

Tank Size

0

  • Rotary Screw Air System
  • 208/230V 1-phase drives 1750 RPM motor
  • Drive-Tek™ Design
  • Variable Speed Drive reduces energy demand up to 33%
  • VFD Soft Start Motor
  • Provides reduced energy demand & amp draw on start up

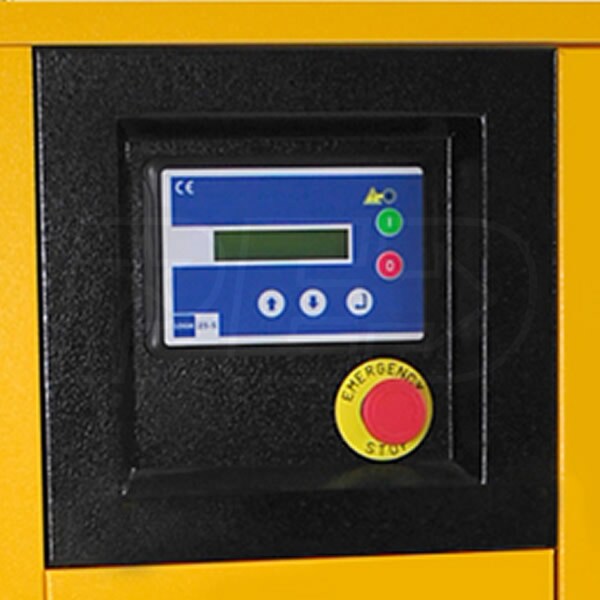

  • PLC Controller
  • Monitors maintenance, temperature, oil level, filtration & hours
  • Also monitors remote start/stop
  • Spin-Tek™ Design
  • Unique easy access oil filters & air/oil separators
  • Requires no tools to remove/install saving time and money
  • Precision Engineered Rotary Air End
  • Highly efficient design provides maximum discharge
  • Heavy Duty Sound Attenuated Cabinet
  • Provides lower 67 dBA operation than a typical rotary screw
  • Designed For Use With Stationary Air Receiver (Not Included)
  • 1 Year Limited Standard Factory Warranty
  • 10 years on air-end pump and 5 year on motor with purchase extended warranty service kit
  • Must-Have Maintenance Kit To Keep Your EMAX Warranty In Force
  • SKIT003WB Maintenance Kit required to validate warranty coverage
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

ERV0150001
specs product image PID-18824
Engine
HP
15
Motor
Voltage
230 Volt AC
Phase
1-Phase
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
62
CFM Rated @
100 PSI
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
150 PSI
Pump Type
Rotary
Pump Drive
Belt Drive
Tank
Tank Size
0 Gallons
Tank Included
No
Tank Outlet
1 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Accessories
Air Dryer
No
Air Filter
No
Overview
Product Category
Air Compressor - Stationary
Weight
788 Pounds
Certification
UL
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
32 Inches
Product Width
36 Inches
Product Height
50 Inches
Power Type
Electric
UPC
815002012728
