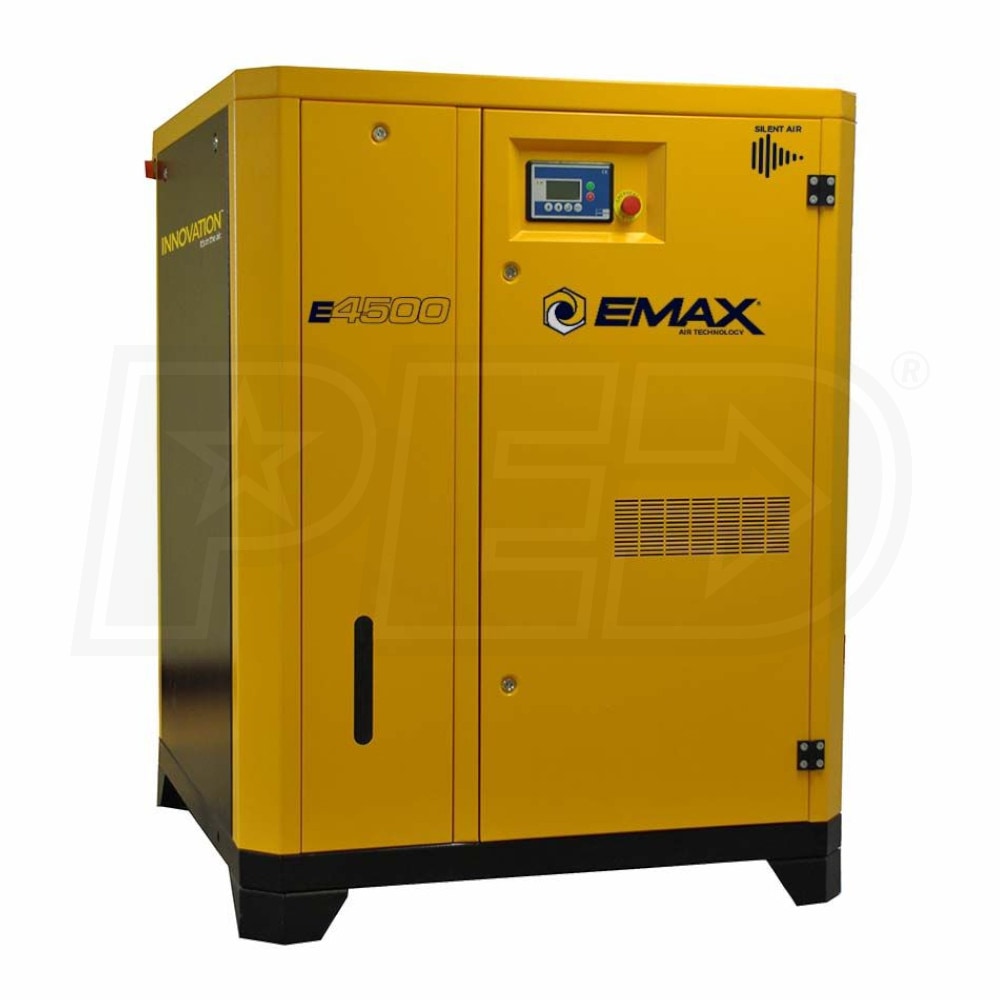

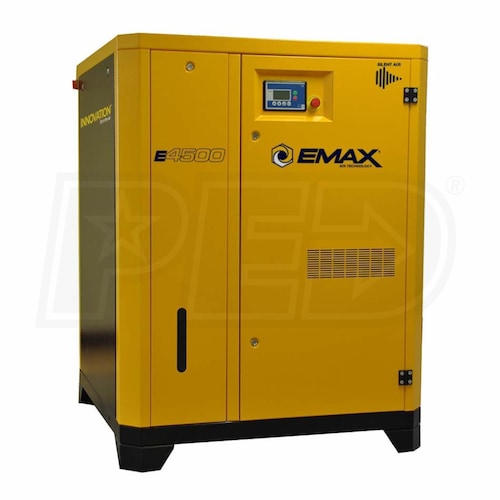

EMAX 50-HP Variable Speed Tankless Rotary Screw Air Compressor (208V 3-Phase)

Model:

ERV0500003D

Write A Review
$23,199.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 8-12 Weeks

EMAX  50-HP Variable Speed Tankless Rotary Screw Air Compressor (208V 3-Phase)
EMAX 50-HP Variable Speed Tankless Rotary Screw Air Compressor (208V 3-Phase)
Model: ERV0500003D
$23,199.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Voltage

208 Volt AC

Phase

3-Phase

CFM

235

Tank Size

0



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Too Large For Liftgate Service, Shipping Dock Or Forklift Required
  • Ultra-Quiet Rotary Screw Operation
  • Delivers enhanced reliability with ultimate energy efficiency
  • Continuous 100% duty cycle operates at normal conversation level
  • High-Performance Variable Speed Drive
  • Drive-Tek reduces energy demand up to 33% for huge savings
  • Gradually increases speed to save on running and peak demand
  • Standard Y-Delta Soft Start
  • Reduces energy demand and amp draw on startup
  • Creates less heat to increase compressors lifetime
  • Premium Industrial TEFC Direct Drive Motor
  • Runs at 1750 RPM for less wear and tear
  • No belt maintenance & longer bearing life makes it worry free

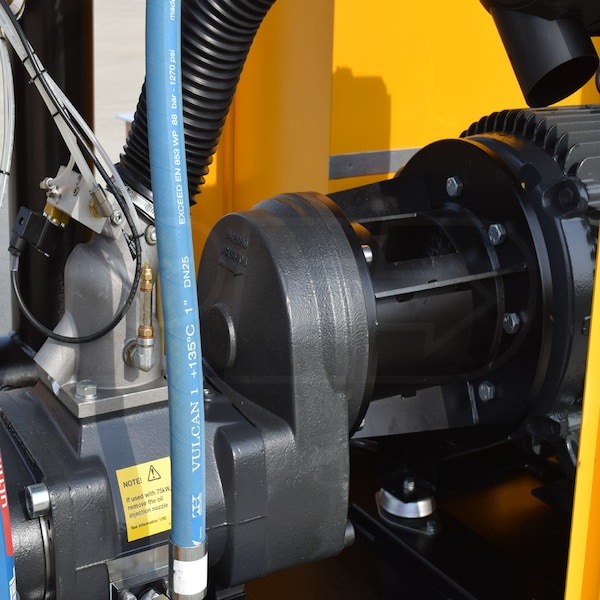

  • Precision Engineered Rotary Air End
  • Highly efficient design provides maximum discharge
  • German built with 10-year warranty & 70,000 running hours

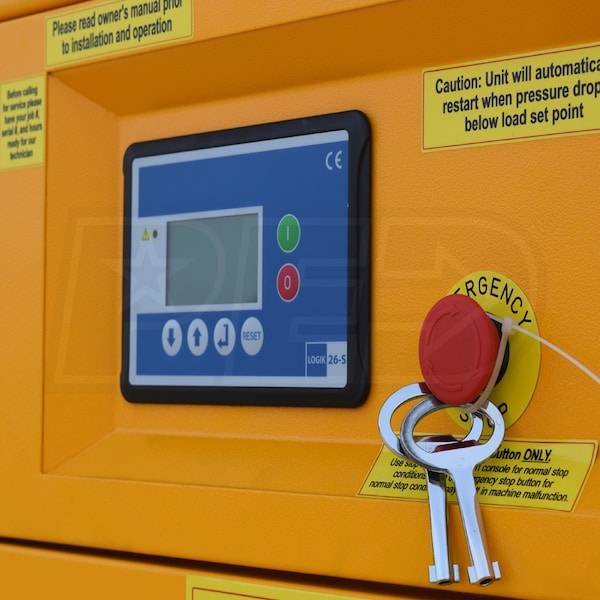

  • Advanced Programmable Logistic Controller
  • Easy to use remote with timed start/stop and low oil shutdown
  • Monitors maintenance, temperature, oil level, filtration, hours and much more
  • Heavy-Duty Sound Attenuated Cabinet
  • Offers lower decibel rating with easy access to critical components
  • Designed for use with stationary air receiver (Not Included)
  • Air receivers can be purchased separately to meet your specific needs
  • Spin-Tek
  • Unique tool-less oil filters & air/oil separators
  • Genuine Mann filters reduce air end contamination & harmful elements
  • 1 Year Limited Standard Factory Warranty
  • 10 years on air-end pump and motor with purchase extended warranty service kit
  • SERVICEKIT029 Maintenance Kit required to validate warranty coverage
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

ERV0500003D
specs product image PID-85717
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
208 Volt AC
Phase
3-Phase
dBA Learn More
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
74
Amp Draw
120 Amp @ 208V
Recommended Breaker
160 Amp Breaker
Engine
HP
50
Engine Low Oil Shut-off
Yes
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
235
CFM Rated @
100 PSI
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
145 PSI
Pump Type
Rotary
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
0 Gallons
Tank Included
No
Tank Outlet
1-1/4 Inch
Accessories
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Stationary
Weight
2295 Pounds
Certification
UL, CSA
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
68 Inches
Product Width
49 Inches
Product Height
65 Inches
Power Type
Electric
UPC
815002014692
