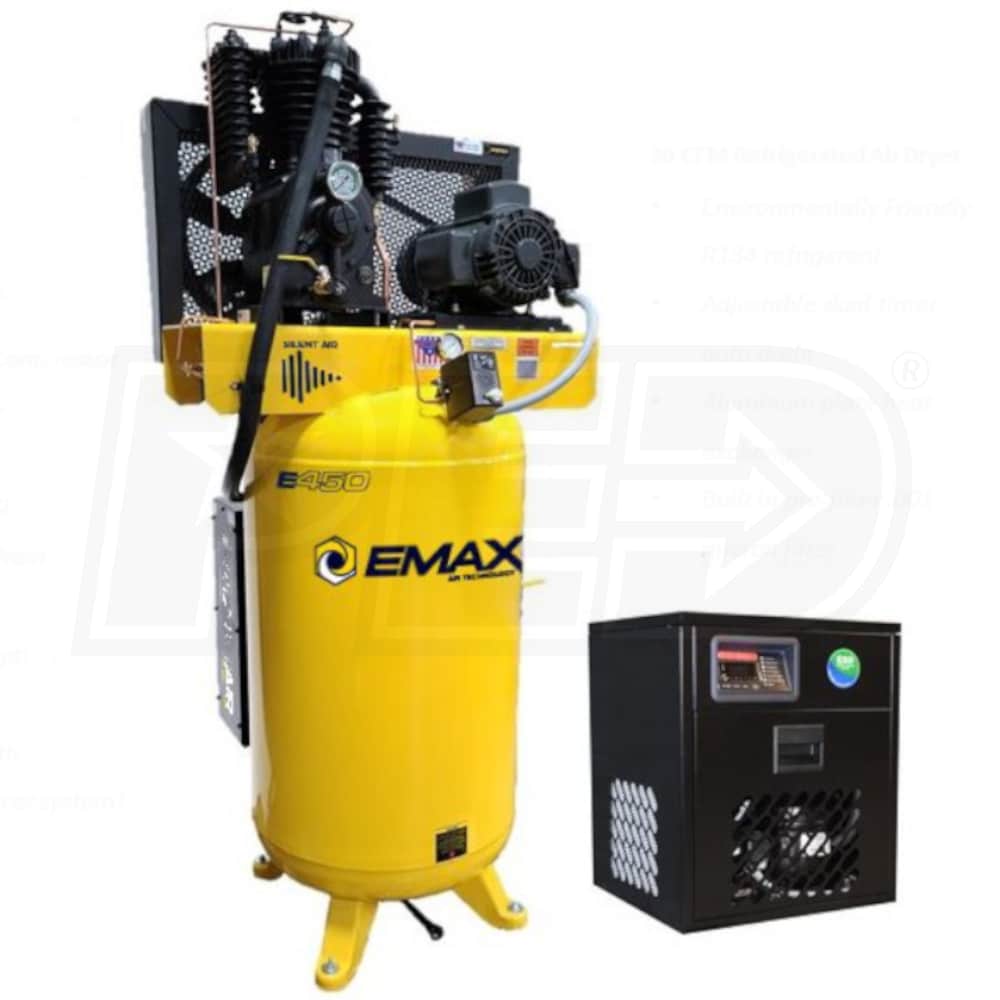

EMAX Industrial Plus Silent Air 5-HP 80-Gallon Two-Stage Air Compressor w/ Dryer (208/230V 1-Phase)
Model:
ESP05V080I1PK
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Optional Accessories
9
Model: EFKIT008AWBS
Frequency
Frequency
Select how often you will receive your air filters, we offer many options to meet your air quality standards.
Quantity
Quantity
This will be how many filters you receive per delivery.
Quantity
$154.52
Factory-Direct
Model: EFKIT026AS
Frequency
Frequency
Select how often you will receive your air filters, we offer many options to meet your air quality standards.
Quantity
Quantity
This will be how many filters you receive per delivery.
Quantity
$303.64
Factory-Direct
Model: OILPIS102Q
Quality
Quality
Quality is determined by the type of particulates filtered out of the air. The higher the MERV the better the filtration. Learn More
Frequency
Frequency
Select how often you will receive your air filters, we offer many options to meet your air quality standards.
Quantity
Quantity
This will be how many filters you receive per delivery.
Quality
Quality
Quality is determined by the type of particulates filtered out of the air. The higher the MERV the better the filtration. Learn More
Quantity
$28.00
Factory-Direct
$288.00
Only 3 In-Stock
Model: FKIT011A
Frequency
Frequency
Select how often you will receive your air filters, we offer many options to meet your air quality standards.
Quantity
Quantity
This will be how many filters you receive per delivery.
Quantity
$229.00
Factory-Direct
Model: EATSPGPS1P
$61.26
Factory-Direct
Model: DXCM024-0400
$209.00
Factory-Direct
Model: F28070
$472.49
Factory-Direct
Frequency
Frequency
Select how often you will receive your air filters, we offer many options to meet your air quality standards.
Quantity
Quantity
This will be how many filters you receive per delivery.
Quantity
$531.99
Factory-Direct
Features
Grade
Commercial
Voltage
208-230 Volt AC
Phase
1-Phase
CFM
19
Tank Size
80

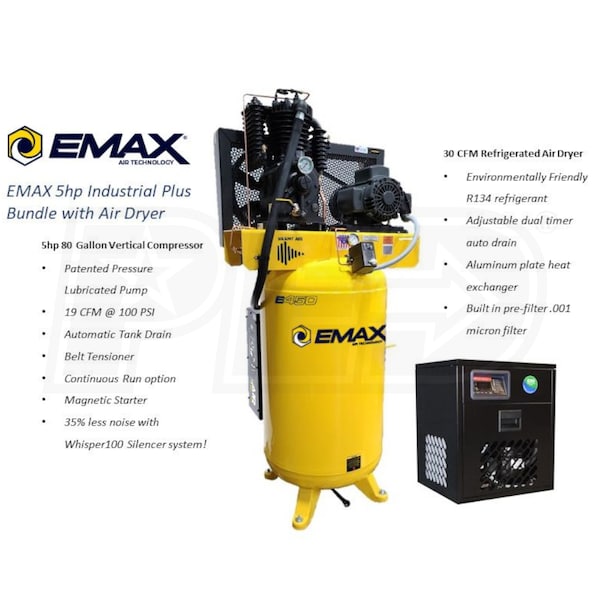

- Patented Silent Air Technology
- Reduces dBA readings by up to 20%
- Piston intake noise is trapped and dissipated within the silencer structure
- Pressure Lubricated Cast Iron Pump w/ Built-In Inter-Cooler & After-Cooler
- Designed for up to 70,000 hours of commercial or industrial
- Dual control design allows for automatic or continuous run for all applications
- Cool-Tek - The Coolest Running Compressors In The Industry
- Air Stream Technology provides 20% lower operating temperature, reduces moisture build up & extends pump life
- Ram-Tek - Solid Steel, Heavy Gauge Rods
- All steel connecting rods with replaceable rod bearing inserts can be rebuilt for maximum durability
- EMAX EDRCF1150030 30 CFM Refrigerated Air Dryer w/ Inner Cooler (115V)
- Air is filtered of all solid particles 0.01 micron and larger
- Energy efficient with coalescing filter built in auto drain
- Keep water, oil, and dirt out of your compressed air; drier air prolongs the life of your machinery & tools
- 5-HP Industrial Grade 1750 RPM Motor
- Low RPM design extends useful life; motors run much cooler than 3450 RPM
- Low harmonic distortion, provides much higher torque in cold weather starting and require less electricity under start
- Belt tension adjuster for fast, easy "one turn" design
- 80 Gallon ASME Receiver With Auto Tank Drain
- Includes isolation pads to lessen vibration and noise
- 110V automatic tank drain with dual timers eliminates daily maintenance
- Prewired condor starter and pressure switch built into one
- Raised Pump Mounting Platform (ESP Models Only)
- Pump is raised approximately 2-inches off the mounting base plate
- Allows 100% constant flow of cool air from flyweel fan around pump crankcase
- Ensures cooler pump oil temperatures, helps lubricate pump, keeps heat off pistons & connecting rods
- 1 Year Standard, 5 Year Extended, Extended Limited Lifetime Pump Warranty
- Please See Warranty Sheet For More Information
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
ESP05V080I1PK
General Information
Product Category
Air Compressor - Stationary
Engine
HP
5
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
24
Recommended Breaker
40 Amp Breaker
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
19
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
Yes
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Filter
Yes
Overview
Product Category
Air Compressor - Stationary
Weight
576 Pounds
Certification
UL,CSA, ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
31 Inches
Product Width
33 Inches
Product Height
75 Inches
Power Type
Electric
UPC
815002014289
Reviews
(6)
EMAX ESP05V080I1PK Reviews & Ratings
Customer Photos and Videos
Very Happy
By Dror H.
New York
Purchased 11/14/2023 |
Review Posted 02/12/2024
The compressor is extremely quiet
Very efficient and highly recommended.
Very efficient and highly recommended.
Dror H. Recommends This
Was this review helpful?
Manufacturer Response
Thank you for your review. We are so glad to hear you are enjoying the features on your new silent air compressor, and we want to welcome you to the EMAX Family!
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use, Price, I39d Buy It Again, Easy To Store
Cons:
None

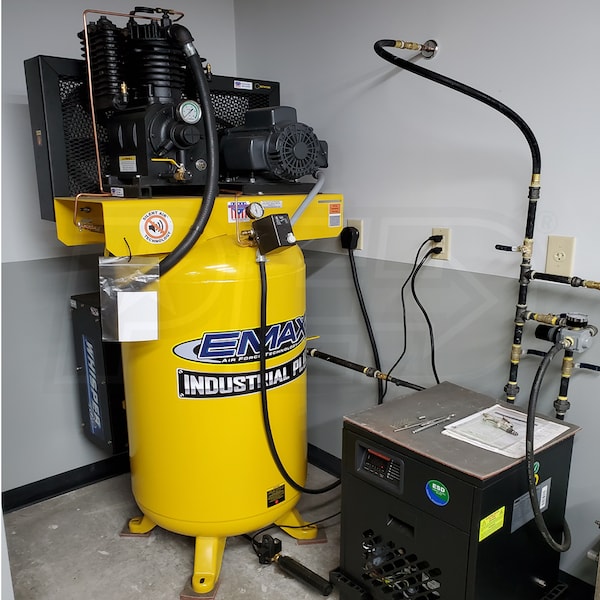

Great Combination After A Few Bumps
By Dennis O.
Marysville, Washington
Purchased 12/09/2019 |
Review Posted 03/11/2020
Now that I have this product up and running it's performance is excellent. As advertised, it is very quiet. It will provide all the air I'll ever need for a home shop with a variety of air tools as well as sand blasting and HVLP painting. It is well build and looks like it will last a lifetime.
The only issues I had were with the initial quality. Out of the box the bolt holding the protective cage in place at the top had backed out (or was never installed properly) and the oil reservoir vent was loose. These things were relatively easy to fix but required a bit of disassembly and reassembly. Once these were fixed a small rigid air hose blew off at full pressure. Once again, easy to fix. Taken together the initial quality was not what it should have been for a product in this price range.
On the plus side the customer service was great. Calls were answered or returned promptly and the administrative folks and technician were polite and knowledgeable.
This is a great product and I would buy it again. A little more attention to details in the final testing is all that is needed for an unbeatable experience.
The only issues I had were with the initial quality. Out of the box the bolt holding the protective cage in place at the top had backed out (or was never installed properly) and the oil reservoir vent was loose. These things were relatively easy to fix but required a bit of disassembly and reassembly. Once these were fixed a small rigid air hose blew off at full pressure. Once again, easy to fix. Taken together the initial quality was not what it should have been for a product in this price range.
On the plus side the customer service was great. Calls were answered or returned promptly and the administrative folks and technician were polite and knowledgeable.
This is a great product and I would buy it again. A little more attention to details in the final testing is all that is needed for an unbeatable experience.
Dennis O. Recommends This
Was this review helpful?
Manufacturer Response
Thank you for taking the time to write such a detailed review. We really appreciate it! Welcome to the EMAX family!
Rating Breakdown
5/5
4/5
5/5
4/5
Pros:
Quiet, Features, Durable, Reliable
This Unit Works Great And Is Quiet
By Carl K.
Oak Bluff, Massachusetts
Purchased 11/07/2019 |
Review Posted 12/17/2019
Very nice and quiet.
Carl K. Recommends This
Was this review helpful?
Manufacturer Response
Thank you!!
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Quiet, Features, Price, Fast
Amazing Compressor!
By Tim A.
Pagos Springs, Colorado
Purchased 08/10/2019 |
Review Posted 10/03/2019
It took exactly 30 days to receive the product, but the wait was well worth it. The compressor came bolted to a sturdy pallet completely enclosed with osb plywood. I drilled anchors into the concrete and mounted to the floor with vibration pads on each foot. This is one quiet running machine! You couldn't even hold a conversation with my old Husky compressor running in the building, but the Emax muffler makes a huge difference. I really like the 1750 rpm motor which is much quieter and should last forever. I have a 48 inch sandblast cabinet and the compressor has no problem keeping up with air and providing enough cfm. The refrigerated dryer is awesome, too. The last thing you want when sandblasting is damp media. Overall, I am completely satisfied with my Emax compressor. You could always save a few bucks and go with the big box store compressors made in China, but I can assure you it wouldn't compare to the made in USA Emax.
Tim A. Recommends This
Was this review helpful?
Manufacturer Response
Thank you for this awesome detailed review! We appreciate it! Welcome to the EMAX Family!
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Quiet, Features, High Quality, I'd Buy It Again
EMAX Industrial Silent 5hp Compressor
By Norman W.
Oxford, Michigan
Purchased 04/18/2019 |
Review Posted 06/01/2019
Compressor is very quiet compared to any I have had. Keeps up well with our demand. Comes set up for constant run so beware of that.
No instructions included and you need to download them from the website and then they are not that clear. Had to call to determine where the ancillary parts were. No cord included.
While I believe this is a durable compressor with what little use we have had, every fitting on the compressor was loose and needed to be tightened before we could use it. One fitting blew off immediately after bring up to pressure.
No instructions included and you need to download them from the website and then they are not that clear. Had to call to determine where the ancillary parts were. No cord included.
While I believe this is a durable compressor with what little use we have had, every fitting on the compressor was loose and needed to be tightened before we could use it. One fitting blew off immediately after bring up to pressure.
Norman W. Recommends This
Was this review helpful?
Manufacturer Response
Thank you for your honest feedback. We take all concerns and issues seriously and I have given your review to our team to address. We apologize that there were issues. We appreciate you giving us a chance to make it right and choosing EMAX!
Rating Breakdown
5/5
4/5
5/5
4/5
Pros:
Features, Quiet
Cons:
Bad Instructions, Not ready to use out of the box, Poorly checked before shipping
The Only Compressor We Would Buy
By Gunny D.
Buda, Texas
Purchased 03/28/2018 |
Review Posted 05/09/2018
This is the second EMAX compressor we have bought for our two locations.
The first unit has outlasted the compressors we have purchased in the past by years, and is still working great! It is quite while running. It is extremely well manufactured. We have a large service facility, never had any problems with compressor. This is why there was no choice when we set up a new facility. I showed the unit to a wholesale rep from another company, and he asked for the information I had. He was so impressed he was going to contact them to see if it is a line he could pick up and rep. Great American made compressor.
The first unit has outlasted the compressors we have purchased in the past by years, and is still working great! It is quite while running. It is extremely well manufactured. We have a large service facility, never had any problems with compressor. This is why there was no choice when we set up a new facility. I showed the unit to a wholesale rep from another company, and he asked for the information I had. He was so impressed he was going to contact them to see if it is a line he could pick up and rep. Great American made compressor.
Gunny D. Recommends This
Was this review helpful?
Manufacturer Response
Wonderful review!!! Thank you for becoming a part of the EMAX family not only once but twice!! We appreciate your support!!
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Quiet, Exceeded Expectations, High Quality, I'd Buy It Again
Cons:
none
