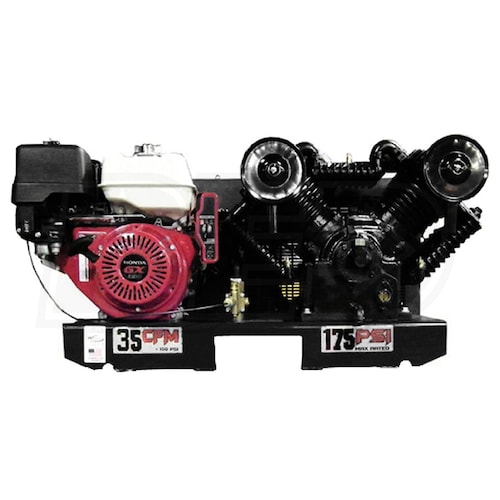

Eagle 13-HP Tankless Two-Stage Truck Mount Air Compressor w/ Electric Start Honda Engine
Model:
13GSKTRKE-V4
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
1
These accessories are required to properly setup/install this product.
Model: EA-SKG027-X
Frequency
Frequency
Select how often you will receive your air filters, we offer many options to meet your air quality standards.
Quantity
Quantity
This will be how many filters you receive per delivery.
Quantity
$239.00
Factory-Direct
Optional Accessories
6
$66.99
In-Stock
Model: TRI-GD-1100P-GL
$65.00
Factory-Direct
Model: TRI-GD-2100P-GL
$95.00
Factory-Direct
Model: IT20ASME
$269.00
Factory-Direct
Model: 018-0059CT
$4.99
Factory-Direct
Model: M14025-6
$23.99
Factory-Direct
Features
Grade
Contractor
Style
Truck Mount
Engine Brand
Honda GX
CFM
35
Tank Size
0
- Tankless 2-Stage Truck-Mount Compressor On Base Plate
- Service kit model EA-SKG027-X
- Add to your own tank or custom set-up
- Delivers high output and reliability
- Designed for service trucks & contractors running multiple tools
- Heavy-Duty Steel Base Plate
- Rust & corrosion resistant
- Mounting flanges allow sturdy mounting on your choice of base
- Unit dimensions 47-1/2" L x 18-1/2" D (Depth) x 23" H
- 13-HP Honda GX340 Commercial Grade Electric Start Engine
- Exceptionally quiet and lower fuel consumptions
- Idle control reduces cost and excessive wear & tear
- OHV design for increased efficiency and optimal power transfer
- Ensures dependable starting every time (Battery & Cables Not Included)
- Automatic low oil engine shutdown
- Solid Cast Iron "V" Style Pump
- Produces 35CFM @ 100PSI
- Minimizes vibration, improves cooling, extends compressor life
- Large bore pistons give the ability to run at less RPM
- Oversized 4 Cylinder Pump
- Allows for lower RPM's and longer compressor life
- High efficiency reed valves for maximum performance
- One inner cooler & two after coolers included
- Easy Viewing Oil Sight Glass On Pump
- Drain located in front of unit for easy maintenance
- Rugged Removable & Individual Cast Iron Cylinders
- Efficient heat removal from fly wheel
- Provides cooler operation & easy maintenance
- Metal Air Filters With "Auto Drop" Feature
- Extends compressor life, easy to maintain
- Sturdy metal belt guard for ultimate protection
- 1 Year Factory Warranty
- Warranty extends to 2 years w/ purchase of Eagle Service Kit
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
13GSKTRKE-V4
General Information
Product Category
Air Compressor - Portable
Engine
HP
13
Auto Idle
Yes
Engine Brand
Honda GX
Starting System
12-Volt Key Start w/ Recoil
Engine Low Oil Shut-off
Yes
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
35
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
0 Gallons
Tank Included
No
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Accessories
Pressure Gauge
No
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
320 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
47.5 Inches
Product Width
18.5 Inches
Product Height
23 Inches
Power Type
Gas
UPC
20791504648
Reviews
(2)
Eagle 13GSKTRKE-V4 Reviews & Ratings
Verified Buyer
Solid Compressor
By Gil T.
Virginia
Purchased 09/19/2024 |
Review Posted 10/22/2024
We purchased three of these units, nothing but good things to say about them! The customer service from Eagle is second to none!
Gil T. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use, Price, I39d Buy It Again
Verified Buyer
Unreliable And Poor Quality Overall
By David H.
Eagle Mountain, Utah
Purchased 05/28/2021 |
Review Posted 09/03/2021
Pilot valve was not set properly top end was 145psi and the bottom end was at 50 psi. After getting the pilot valve adjusted all we can get is 170 and it turns back on at 130..most times.. the pilot valve does not always work and even though the engine revs up to build pressure the valve lets the air by and you have to manually push the valve down to build pressure. The throttle cable is also too long and adjusted properly the engine verily ideas and a lot of time when the land hits the engine dies. Overall quality is poor
David H. Does Not Recommend This
Was this review helpful?
Expert Response
First and foremost thank you for your purchase of the Eagle 13-HP Tankless Two-Stage Truck Mount Air Compressor. We appreciate you taking the time to provide us with your feedback and we can certainly understand your aggravation. We apologize for any issue you may be having and would like to help rectify the situation. If you could please contact Eagle directly at 800-551-2406. They have an excellent technical team that can resolve this issue properly for you and apply the warranty procedure if needed.
We appreciate your business and apologize for any inconvenience.
We appreciate your business and apologize for any inconvenience.
Dale V.
Power Equipment Expert
Manufacturer Response
David,
I am sorry you have had this problem. If you will contact me I will help you get another unloader and throttle control cable.
Thanks,
Mike Haynes
Customer Service Manager
800-551-2406 ext. 323
I am sorry you have had this problem. If you will contact me I will help you get another unloader and throttle control cable.
Thanks,
Mike Haynes
Customer Service Manager
800-551-2406 ext. 323
Rating Breakdown
3/5
2/5
2/5
2/5
Cons:
Low Quality, Difficult To Use, Unreliable
