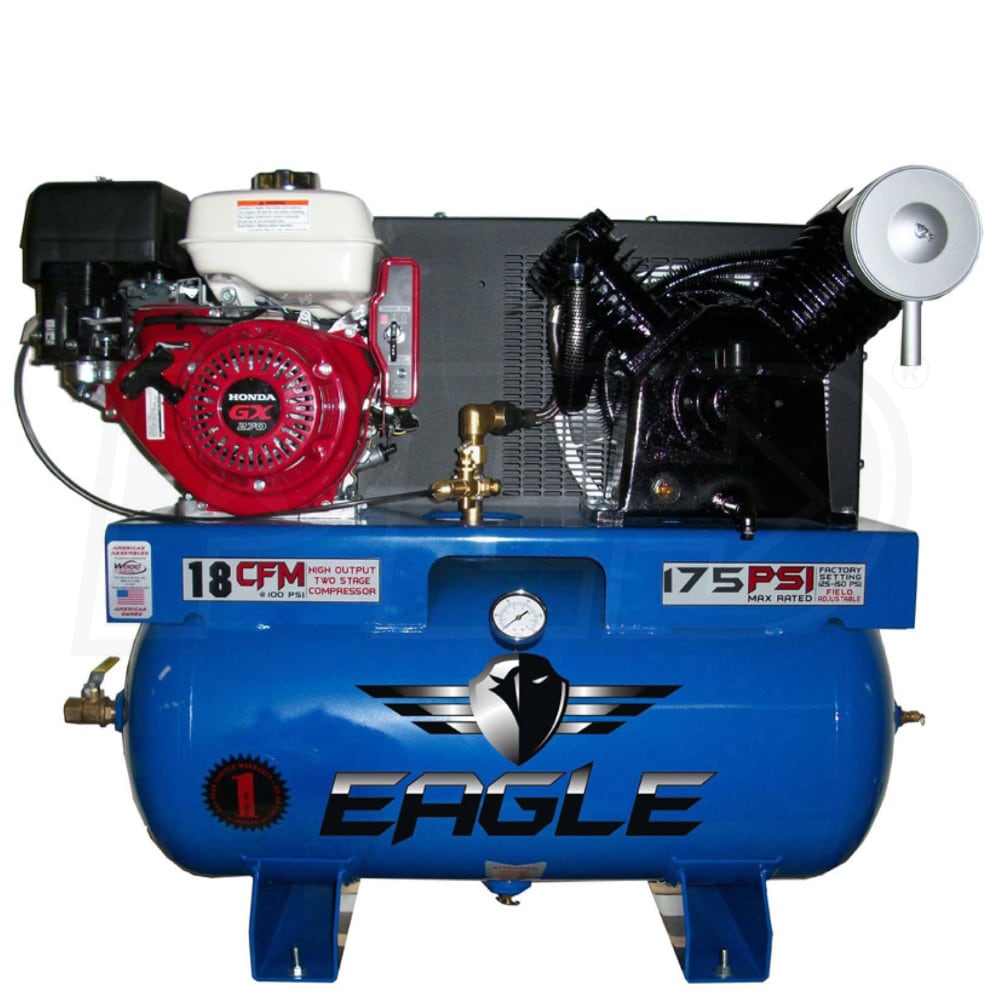

Eagle 9-HP 30-Gallon Two-Stage Truck Mount Air Compressor w/ Electric Start Honda Engine
Model:
9G30TRKE
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Contractor
Style
Truck Mount
Engine Brand
Honda GX
CFM
18
Tank Size
30
- Truck Mounted 2 Stage Unit Produces 18 CFM @ 100 PSI
- Service Kit Model EA-SKG019-X
- Sturdy and reliable air pressure wherever you need it
- Ideal for jobsite needs and mobile service applications
- Perfect for framing and roofing

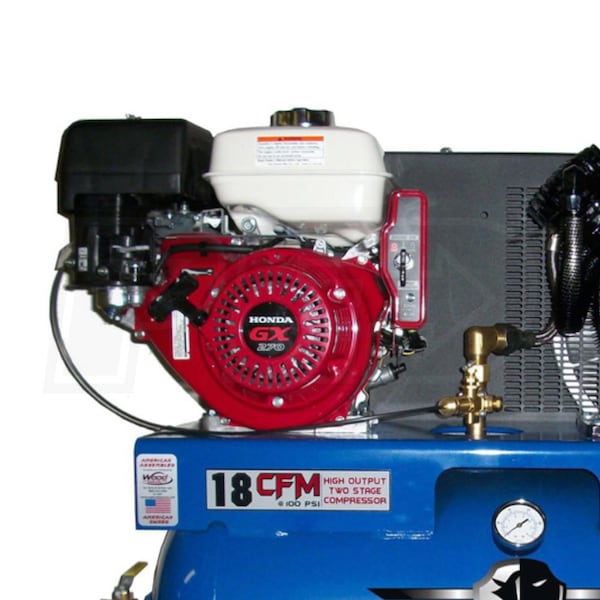

- Reliable 9-HP Commercial Grade GX270 Honda Engine
- Fuel efficient with high output operation
- Precision engineered components result in lower vibration
- Electric and manual start for ease of operation (Battery & Cables Not Included)
- Low oil shut down for maximum protection
- Rugged Removable & Individual Cast Iron Cylinders
- Built to work hard and last a long time
- For smoother & cooler operation
- Efficient heat removal from fly wheel
- "V" Design
- Minimizes vibration, improves cooling, extends compressor life
- Generates less heat in pump for longer life
- Heavy Duty Pressure Switch
- With convenient on/off control
- Sturdy metal belt guard for added protection
- Metal Air Filters With "Auto Drop" Feature
- Provides added protection from dust and dirt
- Extends compressor life, easy to maintain
- 30 Gallon ASME Tank
- Rated to 200 PSI; outlet valve included
- Convenient oil drain on front of unit
- Easy view oil sight gauge
- 1 Year Factory Warranty
- Warranty extends to 2-years w/ purchase of Eagle service kit
**Due To Product Issue Unit Will Be Built On A Black Tank Until Further Notice**
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
9G30TRKE
General Information
Product Category
Air Compressor - Portable
Engine
HP
9
Auto Idle
Yes
Engine Brand
Honda GX
Starting System
12-Volt Key Start w/ Recoil
Engine Low Oil Shut-off
Yes
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
18
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
30 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
360 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
45 Inches
Product Width
19 Inches
Product Height
39 Inches
Power Type
Gas
UPC
777589000294
