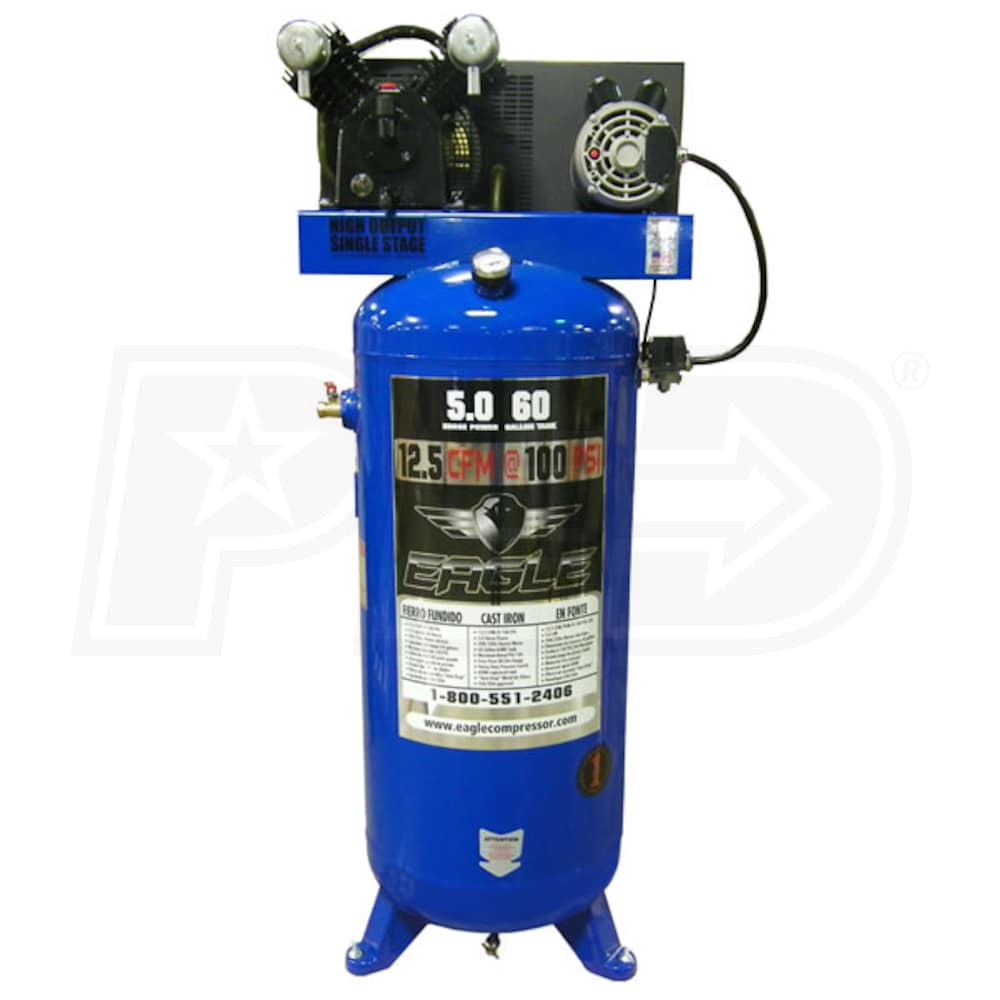

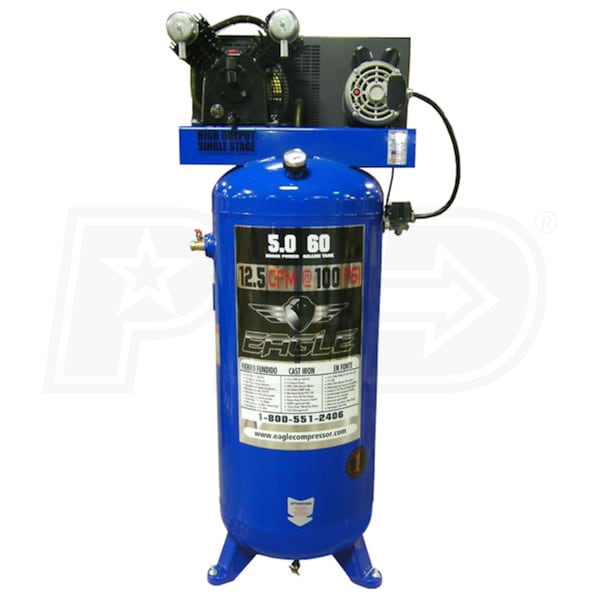

Eagle 5-HP 60-Gallon Single-Stage Air Compressor (208/230V 1-Phase)

Model:

C4160V1

Write A Review
$1,199.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 4-7 Business Days

Eagle 5-HP 60-Gallon Single-Stage Air Compressor (208/230V 1-Phase)
Eagle 5-HP 60-Gallon Single-Stage Air Compressor (208/230V 1-Phase)
Model: C4160V1
$1,199.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Consumer

Style

Single Stage 1-Phase

CFM

12.5

Tank Size

60

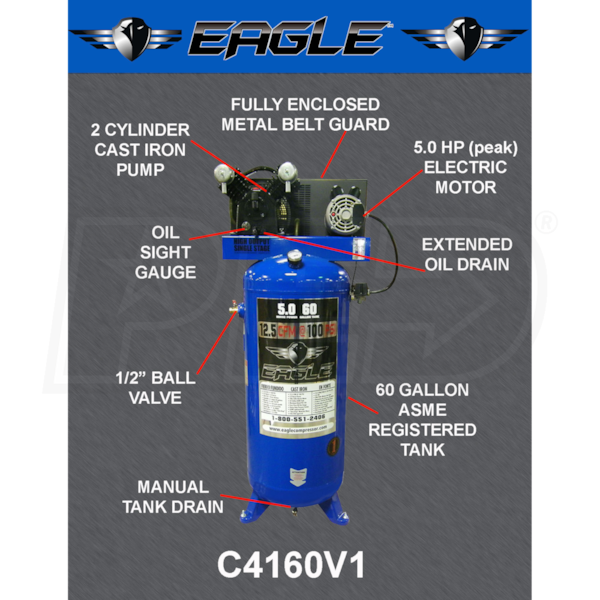

  • Rugged Cast Iron Cylinders
  • Built to work hard and last a long time
  • "V" Design
  • Minimizes vibration, improves cooling, extends compressor life
  • Individual & Removable Cylinders
  • For smoother & cooler operation
  • Heavy Duty Pressure Switch
  • With convenient on/off control
  • No magnetic starter required
  • Metal Air Filters With "Auto Drop" Feature
  • Extends compressor life, easy to maintain
  • 208/230V Single Phase Motor
  • Thermally protected
  • 60 Gallon ASME Tank
  • 150 PSIG rating
  • Convenient oil drain on front of unit
  • Easy view oil sight gauge
  • 1 Year Factory Warranty
  • Extends to 2 years with Maintenance Kit added at time of purchase
  • Receipts are required for all warranty service
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

C4160V1
specs product image PID-5515
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
15
Recommended Breaker
Consult Certified Electrician
Engine
HP
5
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
12.5
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
150 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
60 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Filter
Regulator
No
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Stationary

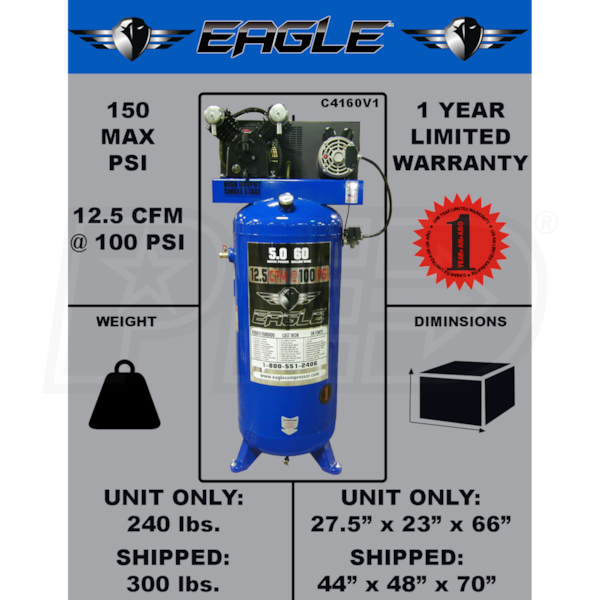

Weight
240 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
27.5 Inches
Product Width
23 Inches
Product Height
66 Inches
Power Type
Electric
UPC
777589000188
