Features
Grade
Contractor
Style
Portable - Vertical
CFM
6
Tank Size
20
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Silent Series
- Rated at 53 dB from 25 feet away; softer than most conversations
- Life expectancy more than 4 times longer than most oil-free air compressors
- 2-HP Running & 2.5-HP (Peak) Motor
- Draws only 14 amps, works on most household 115V outlets
- Oil-Free Double Piston Pump System
- Produces 6 CFM at 90 PSI; 7.9 CFM at 40 PSI with a 50% duty cycle
- Oil-free system requires no pump maintenance

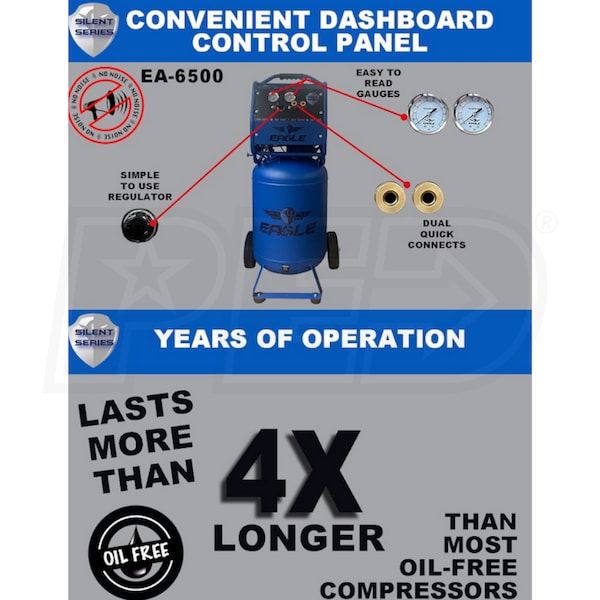

- Top-Mounted Control Panel
- Dual gauges to monitor tool & tank pressure at a glance
- Two 1/4" air hose quick connectors for fast tool changes
- Oversized regulator knob is easy to use, even wearing work gloves
- 20 Gallon Air Tank
- Easy to transport & store; 125 PSI maximum pressure
- Lever-Type Tank Drain Valve
- Simplifies maintenance; extends air tank life
- Roll Cage Design With Anti-Vibration Feet
- Never-flat wheels take on stairs & rugged terrain with ease
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

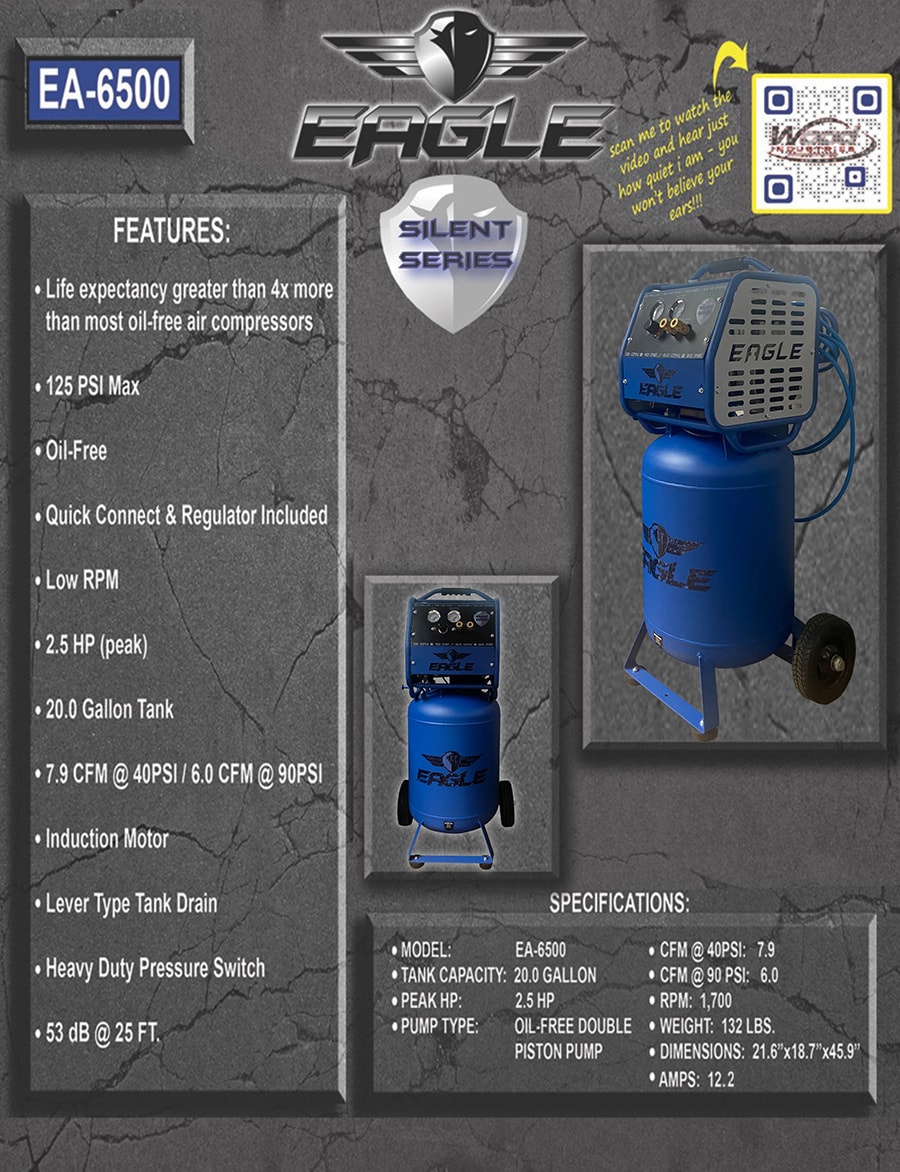

Specifications
EA-6500
General Information
Product Category
Air Compressor - Portable
Motor
Voltage
115 Volt AC
Phase
1-Phase
dBA
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
53
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
14
Engine
HP
2
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
6
CFM Rated @
90 PSI
CFM @ 40 PSI
7.9
Pump Material
Aluminum
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
125 PSI
Oil Sight Glass
No
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Direct Drive
Oil Type
Oil Free
Duty Cycle
50%
Tank
Tank Size
20 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Filter
Regulator
Yes
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
132 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
21.64 Inches
Product Width
18.66 Inches
Product Height
45.96 Inches
Power Type
Electric
UPC
020791503979
Reviews
(129)
Eagle EA-6500 Reviews & Ratings
Product Q&A
(6)
Product Questions
Answered by Melissa, the Air Compressor Expert
How loud is this Eagle EA-6500 compressor compared to the California Air Tools 10020AC compressor?
Astrid
from California
February 09, 2022
How much clearance do I need on all sides of the compressor?
John
from New York
November 14, 2019
Is this compressor able to run on 220 volts AC after appropriate changes in the wiring connections?
Lloyd S.
from Washington
September 14, 2019
Does this air compressor have a large bung in the tank?
Bob C.
from Iowa
August 05, 2019
Can you recommend a good filter to accompany this compressor? I'd just like to remove water/oil to extend the life of my air tools.
Jared
from California
July 06, 2019
I live right outside of New Orleans. I have read that oil-free compressors are not good for humidity. Where I live, the humidity is close to 90-100% most of the year. Will this be a bad environment for this compressor?
Kirk
from Louisiana
January 25, 2019
