Features
Grade
Consumer
Style
Twin Stack
CFM
4.2
Tank Size
4.2

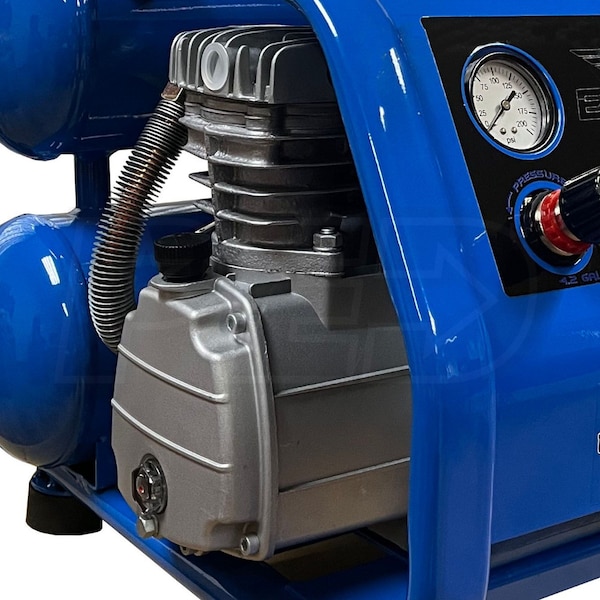

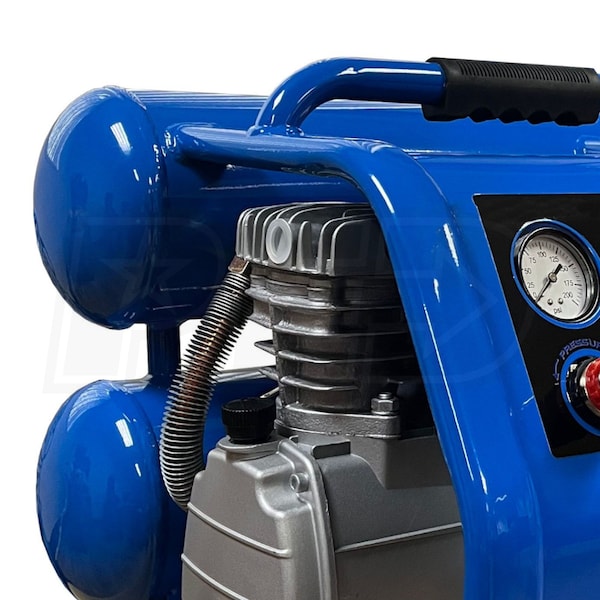

- Rugged Compressor With Cast Iron Cylinder
- Puts out 4.2 CFM at 90 PSI to work with many air tools
- High efficiency reed valves provide maximum output
- Individual & Removable Cylinders
- Smoother & cooler operation for optimum performance
- Metal air filter with "Auto Drop" feature for easy servicing
- Thermally Protected 110V, 11 Amp Electric Motor
- CSA/US approved; runs on household outlets
- 1720 RPM running speed reduces wear and tear

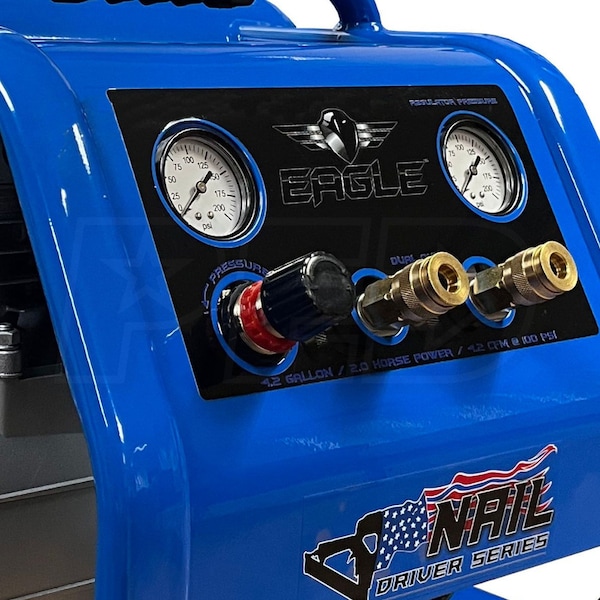

- Top Mounted Control Panel
- 1/4" dual air hose quick connectors simplify tool use
- Dual gauges to monitor tool & tank pressure at a glance
- Oversized regulator knob is easy to use, even wearing work gloves
- Roll Cage Design With Anti-Vibration Feet
- Protects the pump; foam handle is easy on your hands
- Helps keep the compressor steady and quiet
- 4.2 Gallon Total Air Reserve
- Rated up to 125 PSI maximum
- Two 2.1 gallon tanks; weighs only 69 pounds
- Convenient Oil Drain
- Located on the front for easy maintenance
- Oil sight gauge lets you monitor level at a glance
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
TS2018L+
General Information
Product Category
Air Compressor - Portable
Motor
Voltage
110 Volt AC
Phase
1-Phase
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
11.6
Engine
HP
2
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
4.2
CFM Rated @
90 PSI
Pump Material
Aluminum w/ Cast Iron Sleeve
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
125 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
4.2 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
69 Pounds
Certification
CSA/US
Consumer Warranty
1 Year
Product Length
20 Inches
Product Width
16 Inches
Product Height
18 Inches
Power Type
Electric
