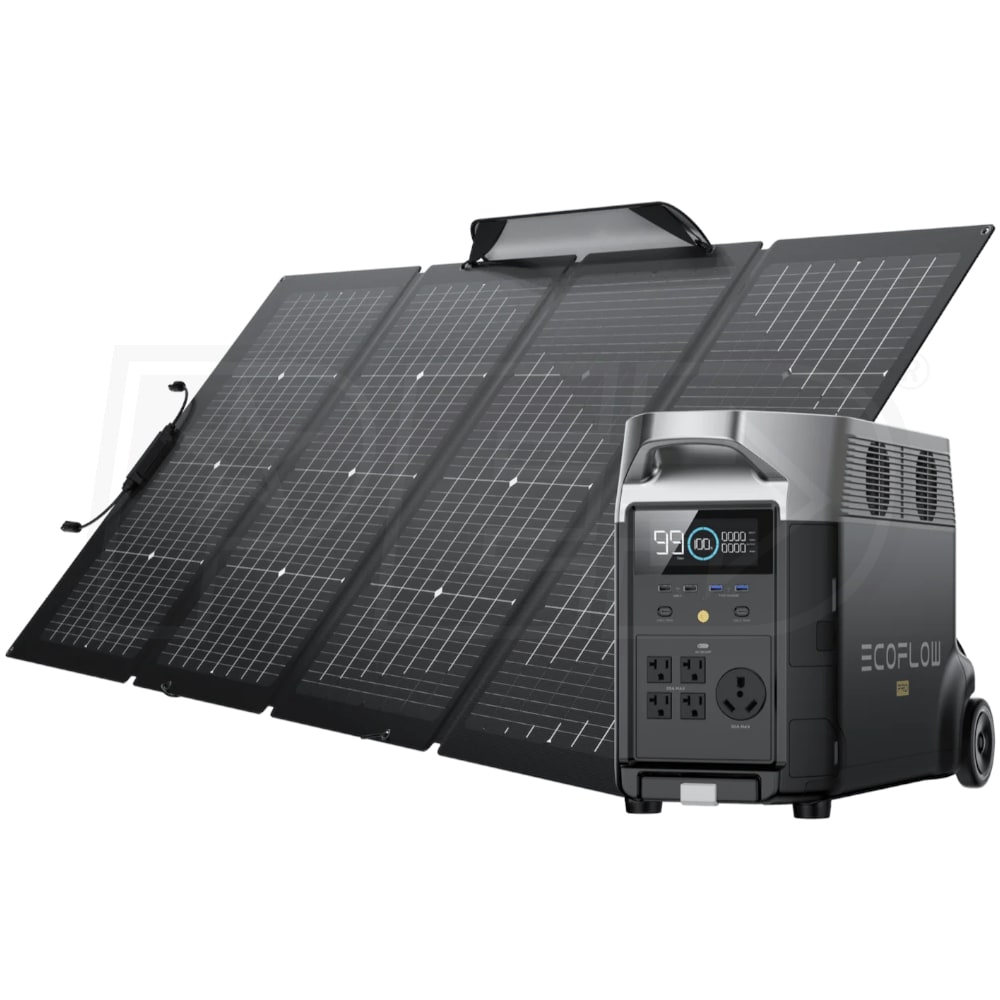

EcoFlow DELTA Pro - 3600Wh Portable Power Station w/ 220-Watt Solar Panel
Model:
TMR500-MS430-US
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jared, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- EcoFlow DELTA Pro Power Station Bundle
- The portable home battery
- Perfect for power outages, outdoor adventures, and professional work
- Safely Use Indoors - 1-Year Shelf Live (After Fully Charged)
- Never worry about gas, fumes or maintenance again
- Includes (1) 220-Watt Foldable Solar Panel
- Protective case provides a stand for easy adjustments
- Lithium Battery Pack - 3600Wh
- High capacity design to keep devices fully charged during outages & emergencies
- Expandable capacity up to 25000Wh for maximum protection
- AC Inverter Output - 3600 Watt Continuous / 7200 Watt Surge
- Pure Sine Wave design provides extremely clean power
- High output design allows you to power almost everything around the home
- X-BOOST
- Provides up to 4500 Watts for high wattage appliances
- Home Integration - Smart Home Panel (Coming Soon)
- Can provide power up to 10 home circuits
- X-Stream Technology
- Can fully charge with a wall outlet in under 2 hours
- 1600-Watt Max Solar Charging Speed
- Connect up to 4x 400W EcoFlow solar panels (Includes (2) 220W Panels)
- MC4 connector (11-150V) allows you to connect other solar panels
- Charges on AC, DC or Solar power
- Dual charging design (AC/Solar) for even faster charging
- Compatible w/ EV Charging Stations
- Up to 3000W for fast charging times
- EcoFlow App
- Easily control and monitor your DELTA MAX power station
- Multiple Output Receptacles
- (1) RV-Ready TT-30R
- (4) NEMA 5-15R 120V - Ideal for powering a wide variety of electronics or appliances
- (2) USB-A Fast Charge Ports: 5V/2.4A, 9V/2A, 12V/1.5A (18W Max)
- (2) USB-A Ports: 5V, up to 2.4A (12W Max)
- (2) USB-C Ports: 5V DC, 9V DC, 12V DC, 15V DC, 20V DC, 5A (100W Max)
- (1) Car Power Output: 12.6V DC, 10A Max (108.8W)
- (2) DC5521 Output - 12.6 V DC, 3A (38W Max Per Port)
- (1) Anderson Output - 12.6V DC, 30A (378W Max)
- Available Input Options (Power-In)
- AC Charge Input Power: X-Stream charge (120V - 1800W Max & 240V - 3000W Max)
- Car Charger: 12V/24V DC 8A max
- Solar Charger Input: 1600W 11-150V DC 15A max
- Built-In Management Systems
- BMS, Over Voltage Protection, Overload Protection, Over Temperature Protection
- Short Circuit Protection, Low Temperature Protection
- Low Voltage Protection, Overcurrent Protection
- Compact Design (25" x 11.2" x 16.4") - Only Weighs 99 lbs.
- Includes:
- AC Charging Cable, Car Charging Cable & Solar Charging Cable
- DC5521 to DC5525 cable & DELTA Pro Smart Generator Adapter
- Handle Cover
- 24-Month Warranty
***Please Note - Items May Ship Separately***
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
Plug Types
TMR500-MS430-US
General Information
Product Category
Generator - Solar
Overview
Product Category
Generator - Solar
Weight
99 Pounds
Made in USA
No
Consumer Warranty
5 Years
Product Length
25 Inches
Product Width
11.2 Inches
Product Height
16.4 Inches
UPC
842783112903
Product Specs
Voltage
120 Single-Phase
Frequency
60 Hertz
Alternator
Inverter
Rated Watts
3600 Watts
Surge Watts
7200 Watts
Fuel Type
Solar
Rated Amps
30 Amps
Fuel Gauge
Yes
Grade Type
Emergency
Solar Input(s)
XT60 & MC4
Chaining Port
Yes
Wi-Fi Remote Monitoring
Yes
Battery Storage (Wh)
3600
Plugs
12-Amp DC - Cigarette Adapter
1
NEMA 5-15R - Single - Wall-Type
4
RV Ready 30-Amp
1
USB
6
12V Anderson Power Pole
1
Includes Solar Panel(s)
Solar Panel(s)
Yes
Solar Panel(s) Included
1
Solar Panel(s) Watts
220
