FS-Curtis NxB-6 7.5-HP 60-Gallon Rotary Screw Air Compressor Ultra Pack w/ Dryer & iCommand-Touch (460V 3-Phase 125PSI)
Model:
FNB06A6U4JXPC
+
Share This Product
Similar Products
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Optional Accessories
7
$692.00
Factory-Direct
Model: DXCM024-0344
$200.99
Factory-Direct
Model: FVA536-1
$536.00
Factory-Direct
Model: TRI-GD-3046RS-GL
$95.00
Factory-Direct
Model: TRI-GD-4046RS-GL
$108.00
Factory-Direct
Model: 21999-0249
$616.50
Factory-Direct
$2,697.30
Factory-Direct
Features
Grade
Commercial
Voltage
460 Volt AC
Phase
3-Phase
CFM
27.1
Tank Size
60
- Premium Efficiency 6kW TEFC Motor
- Produces 7.5HP on a 460 volt, 3-phase circuit
- Full voltage motor starter meets 100% continuous duty demands
- eCool Technology
- Exclusive technology provides protection from heat
- Reduces thermal stress, increasing motor & electrical life up to 50%
- Increases service life for bearings, hoses, & seals up to 30-50%
- Designed For Quiet Operation
- Smooth & quiet integration of centrifugal blower & drive motors
- Extra-thick insulation reduces noise
- Spin-On Air / Oil Separator
- 1 to 3 PPM oil carryover produces higher quality air; saves money
- Easy access for quick maintenance

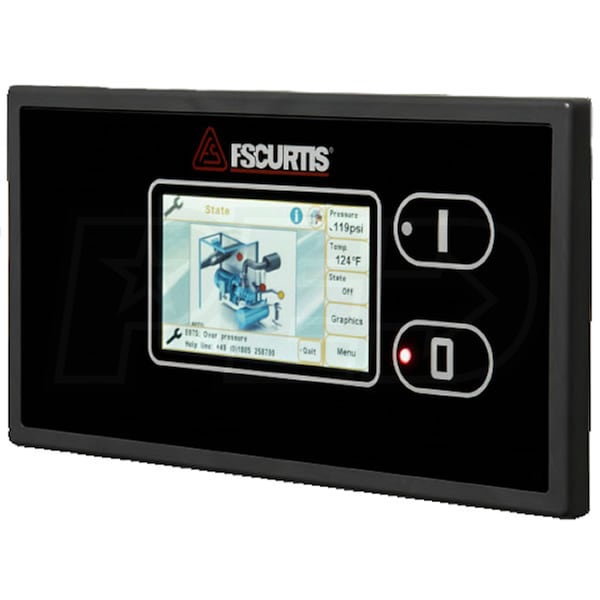

- iCommand-Touch Full-Color Screen Controller
- Intuitive & easy to use; captures realtime data to optimize operations
- Ultra Pack Prefilter & Integrated Refrigerated Dryer
- Saves floor space while producing cooler, dryer air
- Award Winning Rotary Screw Dependability
- Space-saving design delivers pulsation-free air
- 1 year Factory Warranty extends with registration & FS-Curtis kit
California residents see
Warning: This product can expose you to chemicals including Cumene which is known to the State of California to cause Cancer, and Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
FNB06A6U4JXPC
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
460 Volt AC
Phase
3-Phase
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
7.5
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
27.1
CFM Rated @
125 PSI
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
125 PSI
Oil Sight Glass
No
Pump Type
Rotary
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Duty Cycle
100%
Tank
Tank Size
60 Gallons
Tank Included
Yes
Tank Outlet
1/2 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Air Dryer
Yes
Air Filter
Yes
Overview
Product Category
Air Compressor - Stationary
Weight
787 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
61 Inches
Product Width
24 Inches
Product Height
62 Inches
Power Type
Electric
Reviews
(1)
FS-Curtis FNB06A6U4JXPC Reviews & Ratings
Verified Buyer
Manual?
By Zach G.
Salem, Oregon
Purchased 06/21/2016 |
Review Posted 09/28/2016
Would be nice if there was a manual. Just guess on installing and service?
In all seriousness it's ridiculous that this "top of the line" compressor for its specs has nothing regarding installation or service available not even on the internet.
Features? Who knows no manual.
Quality? seems put together well.
Performance? Who knows again what it could possibly do if there was a manual seems to not hit the CFM rating but havn't gauged it yet.
Value? We will see not overly impressed yet.
In all seriousness it's ridiculous that this "top of the line" compressor for its specs has nothing regarding installation or service available not even on the internet.
Features? Who knows no manual.
Quality? seems put together well.
Performance? Who knows again what it could possibly do if there was a manual seems to not hit the CFM rating but havn't gauged it yet.
Value? We will see not overly impressed yet.
Zach G. Does Not Recommend This
Was this review helpful?
Expert Response
I am so sorry you didn't receive any paperwork with your air compressor! If you would please click on this link for your FNB06A6U4JXPC, then click on the Specs tab and look to the right you will see PDF download links for the Owner's Manual, the i-Command Touch Manual, the Extended Warranty, and the Spec Sheet for the product line.
I'll also email the documents to you through your account. If you have specific questions that aren't covered by the manuals please feel free to call FS-Curtis tech support at 800-388-8370. If you do need to call them please also have the serial number of your compressor handy in case they ask for it.
We appreciate your business, and apologize for any inconvenience.
I'll also email the documents to you through your account. If you have specific questions that aren't covered by the manuals please feel free to call FS-Curtis tech support at 800-388-8370. If you do need to call them please also have the serial number of your compressor handy in case they ask for it.
We appreciate your business, and apologize for any inconvenience.
Dale V.
Power Equipment Expert
Manufacturer Response
We did direct the customer to the proper area for the manual. These are readily available for all.
