Fieldpiece SC640 - Loaded Clamp Meter - Swivel Head - True RMS

Model:

SC640

Write A Review
$259.25
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Friday, Nov 1st
Shipping to60601
synchrony card logo
$44 / Month
Suggested monthly payments with 6 month financing.
Fieldpiece SC640 - Loaded Clamp Meter - Swivel Head - True RMS
Fieldpiece SC640 - Loaded Clamp Meter - Swivel Head - True RMS
Model: SC640
$259.25
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Features

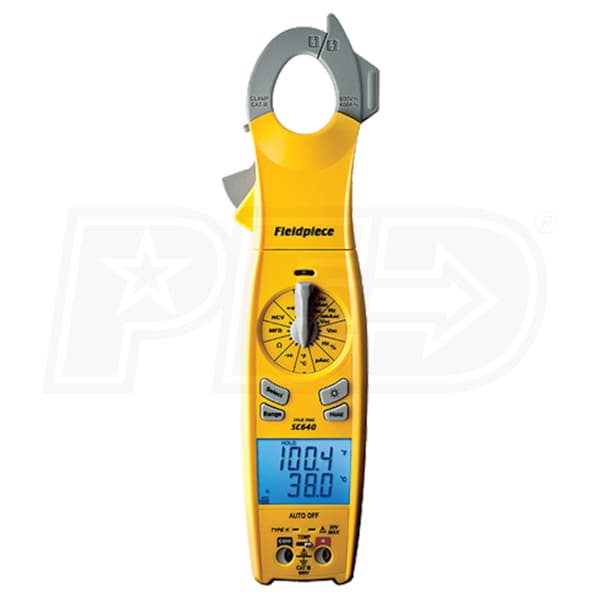

    The Fieldpiece SC640 is a swivel-head clamp meter packed with more features and measurements than any other clamp meter in the HVAC industry. The SC640 features lead storage, a test lead holder, magnetic strap, jaw flashlight and a backlight on the dial so you can easily choose the right measurement in poorly lit spaces. The SC640 includes all the electrical measurements HVAC professionals use every day, along with features like True RMS, inrush current, capacitance, temperature, duty cycle and microamps DC.
  • Fieldpiece SC640 Features
  • Swivel Clamp
  • Magnetic Strap
  • Probe Storage
  • Dual Display
  • Hold
  • Clamp Probe Holder
  • Dial Backlight
  • Clamp Jaw Light
  • LCD Backlight
  • Low Battery Indicator
  • Hi-Voltage Warning
  • Fieldpiece SC640 Measurements
  • Volts (AC/DC)
  • True RMS
  • Inrush Current
  • Temperature (F/C)
  • Capacitance
  • Duty Cycle %
  • 400 Amps (AC)
  • Microamps (DC)
  • Frequency
  • Non-Contact Voltage
  • 50 Mega Ohm with 0.1 Resolution
  • Continuity
  • Diode Test

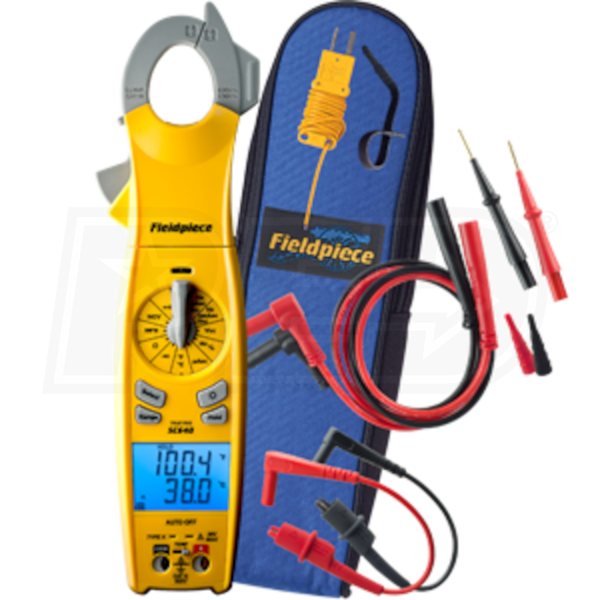

  • Product Includes
  • SC640 Meter
  • ADLS2 Silicone Leads
  • ATB1 Wrap Tab K-Type Thermocouple
  • ASA2 Short Alligator Lead Extensions
  • Velcro Strap
  • 9V Battery
  • ANC7 Padded Case
California residents see
Warning: This product can expose you to chemicals including Bisphenol A (BPA) which is known to the State of California to cause Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

SC640
specs product image PID-92758
Overview
Product Category
HVAC Tools
UPC
872641003067
General Information
Type
Multimeter
Product Category
HVAC Tools
Power Source
Battery
Performance
Minimum Operating Temperature
32 F
Maximum Operating Temperature
122 F
Electrical Data
Battery Type
9V
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
