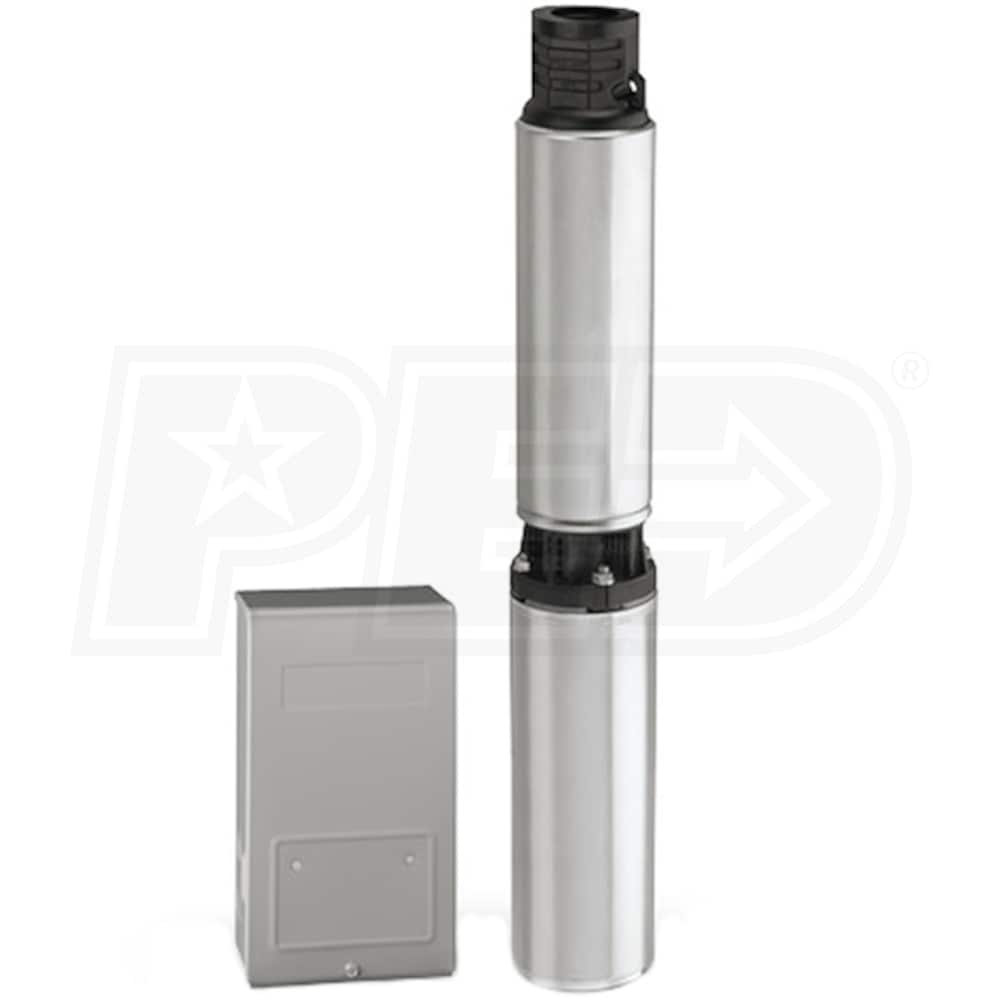

Flotec FP3222 - 10 GPM 3/4 HP Deep Well Submersible Pump (3-Wire 230V) w/ Control Box

Model:

FP3222-13

Write A Review
$695.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

Flotec FP3222 - 10 GPM 3/4 HP Deep Well Submersible Pump (3-Wire 230V) w/ Control Box
Flotec FP3222 - 10 GPM 3/4 HP Deep Well Submersible Pump (3-Wire 230V) w/ Control Box
Model: FP3222-13
$695.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Inlet Size

N/A

Style

Deep Well

GPM

10 Gallons

  • 3-Wire, 4" Submersible Well Pump
  • 3 wires plus ground wire
  • 230-Volt power (15 amp breaker recommended)
  • Control box included
  • For Residential & Agricultural Water Systems
  • Provides optimum amount of water and pressure for general home and farm use
  • High Performance
  • Proven floating stack impeller design
  • For sand resistance and reduced sand locking
  • Durable Construction
  • Stainless steel pump and motor housing
  • Corrosion-resistant for long pump life
  • Designed For Wells 20' - 200' In Depth
  • Pumps up to 702 GPH @ 100' Depth - (40 PSI)
  • Designed For 4" Wells Or Larger
  • 1-1/4" NPT discharge
  • 3 Year Limited Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

FP3222-13
specs product image PID-72435
General Information
Product Category
Water Pump
Motor
Voltage
240 Volt Single-Phase
Wire
3-Wire
Pump
Gallons Per Minute
10 Gallons
Outlet Diameter
1-1/4 Inch
Housing Material
Stainless Steel
Impeller Material
Plastic
Maximum PSI
127
Total Head Lift
200 Feet
GPH @ 20 feet
888
Submersible
Yes
Engine
Horsepower
0.75 HP
Overview
Product Category
Water Pump
Weight
35 Pounds
Consumer Warranty
3 Years
Product Width
3.78 Inches
UPC
022315101951
Additional Model Numbers

FP3222-12, FP3222-13
