Features
Inlet Size
1-1/4 Inch
Style
Shallow Well
GPM
14.7 Gallons
- Cast Iron Shallow Well Jet Pump
- Factory-installed 30/50 preset pressure switch included
- Jet kit included
- Superior Performance
- At depths to water of 25' or less
- 1-1/4" suction / 1" discharge
- Fiberglass-Reinforced Thermoplastic Pump Housing
- For the highest corrosion-resistance
- Heavy-Duty 115/230 Dual-Voltage Motor
- Preset at 230-Volts
- Self-Priming After Pump Housing Is Initially Filled
- Check valve or foot valve required, sold separately
- 1 Year Limited Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
FP4122-08
General Information
Product Category
Water Pump
Motor
Voltage
120/240 Volt
Running Amps
6.1 @230v / 12.2 @115v
Pump
Gallons Per Minute
14.7 Gallons
Inlet Diameter
1-1/4 Inch
Outlet Diameter
1 Inch
Self Priming
Yes
Housing Material
Cast Iron
Suction Head
25 Feet
Maximum PSI
70
Submersible
No
Engine
Horsepower
0.75 HP
Overview
Product Category
Water Pump
Weight
43.3 Pounds
Consumer Warranty
1 Year
UPC
022315100619
Accessories
Pressure Switch
Yes
Reviews
(4)
Flotec FP4122-08 Reviews & Ratings
Product Q&A
Be the First to Ask A Question
Answered by Jim, the Water Pump Expert
How-To Articles
How to Pick the Perfect Well Pump
Using centrifugal force, a well pump shoots water from its underground reservoi...
Priming Your Well Pump
Well pumps have been around for centuries, but the days of using a bucket and r...
How to Pick the Perfect Specialty Water Pump
All water pumps are built for the same purpose: moving water. But there are sp...
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

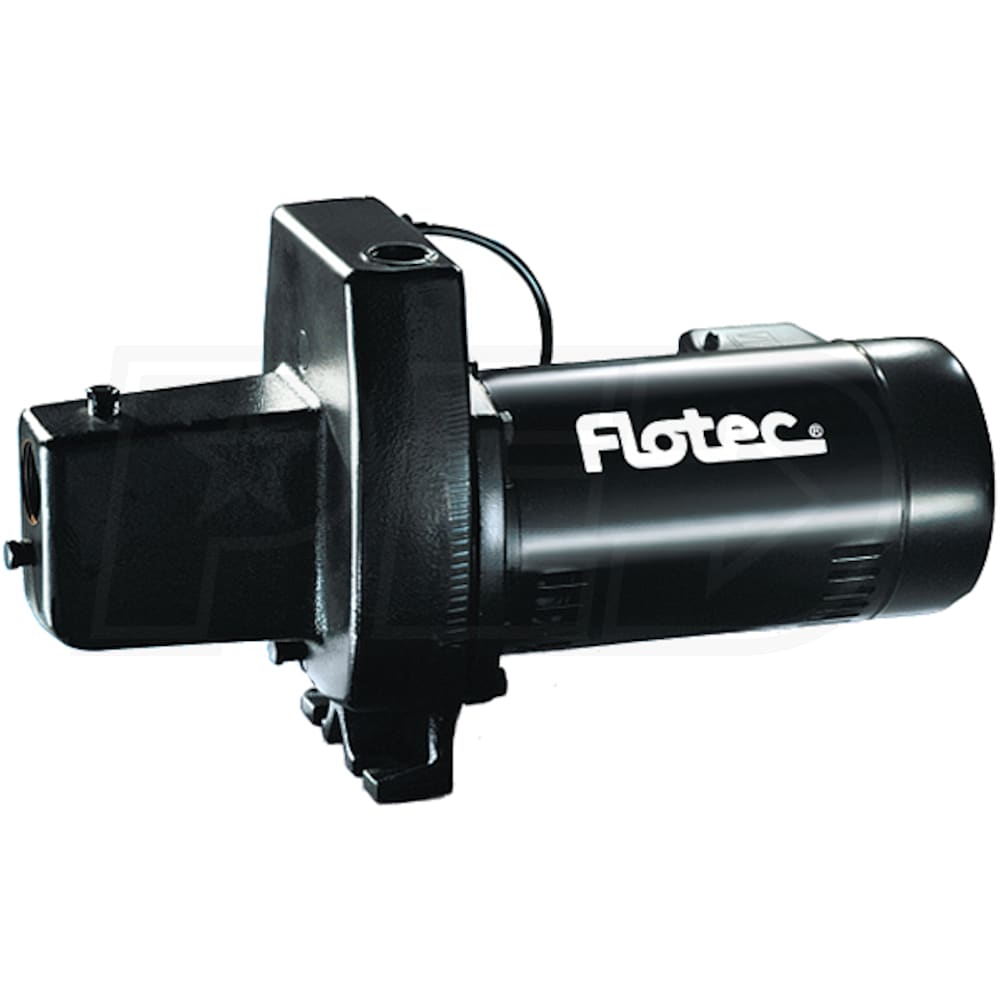

Flotec FP4122 - 14.7 GPM 3/4 HP Cast Iron Shallow Well Jet Pump
