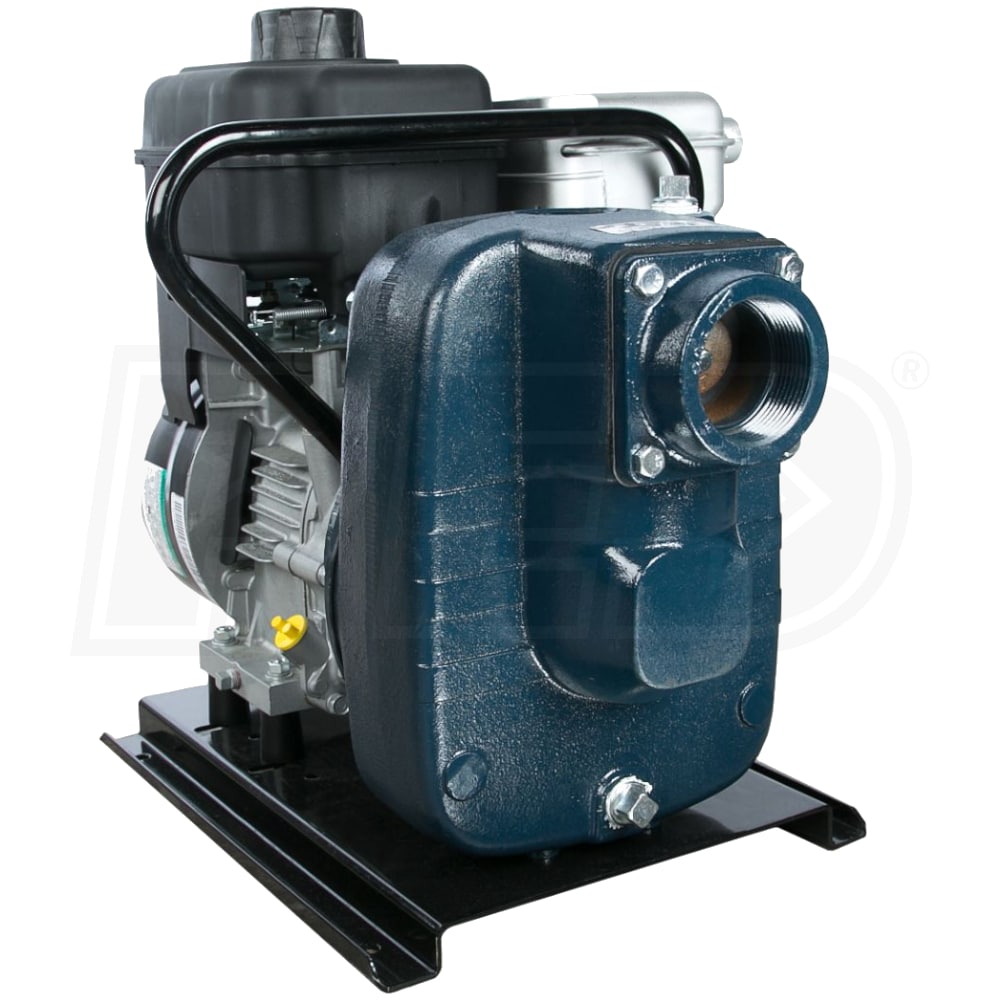

Franklin Electric FNSGF-5H - 132 GPM (2") Water Transfer Pump w/ Honda GX160 Engine

Model:

90272105

Write A Review
$3,688.80
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

Franklin Electric FNSGF-5H - 132 GPM (2
Franklin Electric FNSGF-5H - 132 GPM (2") Water Transfer Pump w/ Honda GX160 Engine
Model: 90272105
$3,688.80
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Inlet Size

2 Inch

Style

Dewatering

GPM

132 Gallons

Engine

Honda GX

  • FPS FNSGF-5H - 2" General Purpose Water/Transfer Pump
  • Ideal choice for water transfer applications and temporary irrigation
  • 160cc Honda GX160 OHV Engine
  • Offers dependable power for your pumping needs
  • Low Oil Shut-Off
  • Helps extend engine life
  • Heavy-Duty Cast Iron Pump Casing and Volute
  • Provides added protection and extends the life of the pump
  • Enclosed Cast Iron Impeller
  • Can provide up to 120 psi maximum working pressure
  • Carbon/Ceramic FKM/SS Mechanical Shaft Seal
  • Designed for the toughest applications
  • 2" NPT Suction / Discharge
  • Allows for maximum performance
  • Base-Mounted Design w/ Built-In Handle
  • Makes this pump to transport and set-up
  • 1-Year Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

90272105
specs product image PID-153920
General Information
Product Category
Water Pump
Pump
Gallons Per Minute
132 Gallons
Inlet Diameter
2 Inch
Outlet Diameter
2 Inch
Self Priming
Yes
Pump Head Material
Cast Iron
Pump Housing Drain
Yes
Quick Clean Out
No
Mechanical Seal Material
Ceramic Carbon
Impeller Material
Cast Iron
Handles Solids
No
Suction Head
26 Feet
Maximum PSI
120
Total Head Lift
165 Feet
Submersible
No
Engine
Engine Brand
Honda GX
Starting System
Recoil Start
Engine Cycles
4-Cycle
Low Oil Shutdown
Yes
CC
160 cc
Fuel Tank Size
1 Gallon
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Overview
Product Category
Water Pump
Weight
62 Pounds
Made in USA
No
Consumer Warranty
1 Year
Product Length
20.25 Inches
Product Width
16.2 Inches
Product Height
14.38 Inches
UPC
0010121142022
Accessories
Strainer
Sold Separately
Hose
Sold Separately
Transport Handle
Yes
