Features
- Timer Function
- This unit offers 7-day programmability with two unique on/off events on each individual day. This allows you to customize heating and cooling operations to suit your personal schedule, improving energy efficiency without compromising your home's comfort.
- Dehumidify and Cool
- Dry Mode demonstrates the ACUH07LUAS1's versatility. In addition to providing moderate cooling, dry mode also dehumidifies your zone.
- Quiet Operating Mode
- The ACUH07LUAS1 may be set in a quiet operating mode. This operating mode limits airflow slightly to reduce fan noise from the unit, allowing you to enjoy supremely quiet comfort.
- Intelligent Temperature Calculation
- Rooms with raised ceilings heat differently than traditionally sized rooms. The ACUH07LUAS1 can be set to account for ceiling height when making temperature calculations. This keeps you comfortable, even in rooms with unconventional heating patterns.
- Condensate Protection
- There is a condensate pump in the ACUH07LUAS1. This pump removes condensation build up from your system, protecting it from potential damage and keeping it running efficiently.
- Economy Mode
- The ACUH07LUAS1 features an Economy Mode restricts the unit's maximum output to decrease energy use and increase savings. This mode also increases the unit's dehumidification capabilities during cooling operations and in Dry Mode.
- Two-Stage Turbo Fan
- Fujitsu employs a two-stage turbo fan to optimize the distribution of air over this unit's heat exchanger. By employing two separate currents of air, the turbo fan ensures even temperatures and improves both efficiency and comfort.
- (1) Fujitsu - 7k BTU - Ceiling Cassette - For Multi or Single-Zone - Grille Sold Separately (ACUH07LUAS1-NG)
- (1) Fujitsu - Compact Ceiling Cassette Grille (UTG-CCGFGA)
- Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
- Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
- Connecting Cable - This durable, insulated cable provides power to your indoor units from your outdoor condenser.

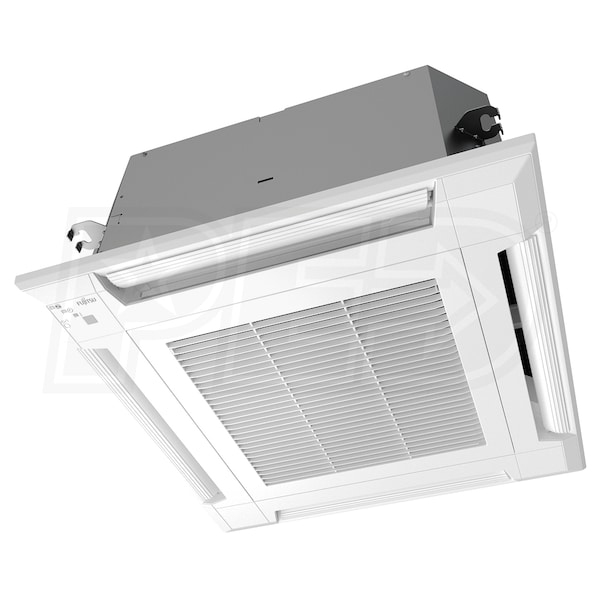

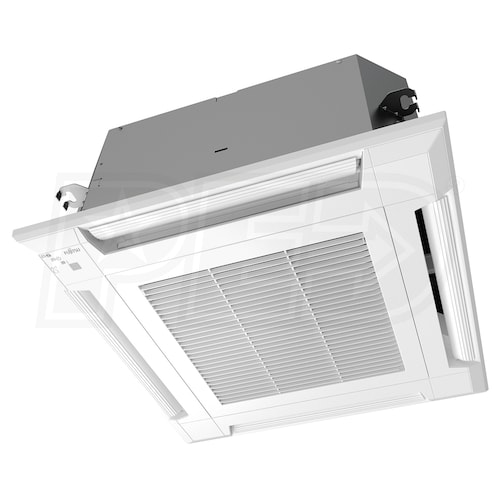

Fujitsu has been providing efficient and responsible heating and air conditioning solutions for decades. Their experience and dedication can be seen in the ACUH07LUAS1 ceiling cassette mini split indoor unit. This mini split indoor unit has a sleek, modern design, and a front panel that slides upwards to maintain its slim profile. The ACUH07LUAS1 is capable of cooling, drying, and heating operations, none of which will disrupt your home thanks to the low operating sound levels. Between the advanced filtration technology and the additional operating modes, the ACUH07LUAS1 is a choice that promotes health and comfort year round.
Product Includes
Product Note
This product requires a compatible Fujitsu mini split outdoor condenser and the following accessories for indoor unit installation:
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
Product Includes
- (1) Fujitsu - 7k BTU - Ceiling Cassette - For Multi or Single-Zone - Grille Sold Separately (ACUH07LUAS1-NG)
- (1) Fujitsu - Compact Ceiling Cassette Grille (UTG-CCGFGA)
ACUH07LUAS1
General Information
Type
Ceiling Cassette
Product Line
Airstage LUAS
Product Category
Mini Split System Components
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Halcyon HFI
Refrigerant Type
R-410A
Remote Control
Wired
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
7
Installation Location
Indoor
DOE Regional Compliance
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Line Set Size
1/4" x 3/8"
Performance
Cooling BTU
7000
Cooling Capacity
7000 BTU
Maximum Air Flow
318 CFM
Minimum Air Flow
230 CFM
Minimum Sound Level
27 dB
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
33 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
9 5/8 Inches
Product Width
22 7/16 Inches
Product Depth
22 7/16 Inches
Product Weight
33 Pounds
Shipping Weight
40 Pounds
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
ACUH07LUAS1-NG
General Information
Type
Ceiling Cassette
Product Line
Halcyon
Product Category
Mini Split System Components
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wired
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
7000
Installation Location
Indoor
Performance
Cooling BTU
7000
Cooling Capacity
7000 BTU
Maximum Air Flow
318 CFM
Minimum Air Flow
230 CFM
Minimum Sound Level
27 dB
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
33 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
9 3/8 Inches
Product Width
22 7/16 Inches
Product Depth
22 7/16 Inches
Product Weight
33 Pounds
Shipping Height
10 7/16 Inches
Shipping Width
28 3/4 Inches
Shipping Depth
24 5/8 Inches
Shipping Weight
40 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
UTG-CCGFGA
General Information
Type
Grille
Product Line
Halcyon
Product Category
Mini Split System Components
Installation Location
Indoor
Performance
Cooling BTU
9000
Cooling Capacity
9000 BTU
Overview
Product Category
Mini Split System Components
