Fujitsu ASU24RLB
Fujitsu ASU24RLB
Hover to zoom
1 Of 5

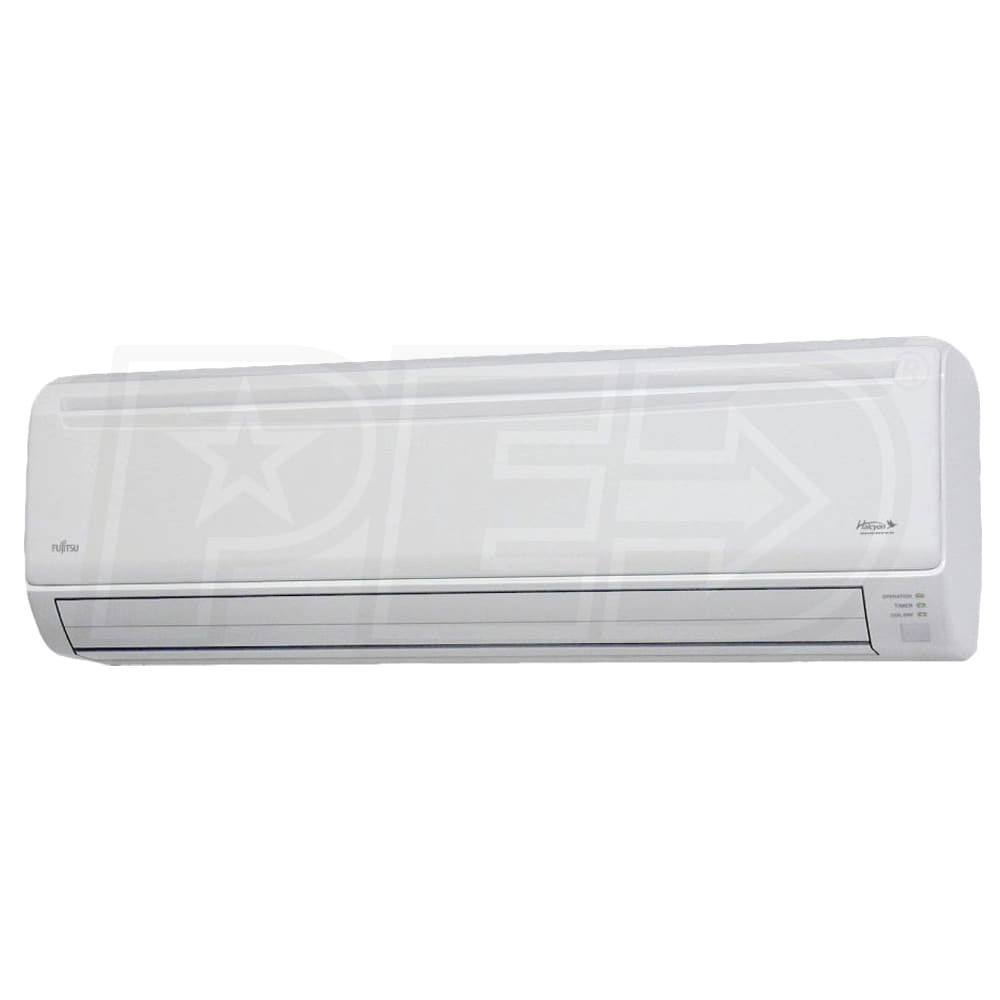

Fujitsu 24k BTU Wall Mounted Unit - For Single-Zone

Model:

ASU24RLB

Write A Review
Not For Individual Sale
Continue Shopping With These Categories
Fujitsu 24k BTU Wall Mounted Unit - For Single-Zone
Fujitsu 24k BTU Wall Mounted Unit - For Single-Zone
Model: ASU24RLB
Not For Individual Sale
Features
Specifications
Reviews
How-To Articles
Share

Features

    Please Note: Due to the limited availability of this model, these products will be sold in systems only. Should you have any questions please contact our sales center for alternate options.
California residents see
Warning: This product can expose you to chemicals including Formaldehyde (gas) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

ASU24RLB
specs product image PID-50262
General Information
Type
Wall Mounted
Product Line
RLB
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
24
Installation Location
Indoor
Performance
Cooling BTU
24000
Cooling Capacity
24000 BTU
Maximum Air Flow
659 CFM
Minimum Air Flow
365 CFM
Minimum Sound Level
31 dB
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
47 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
1/2 Inch
Liquid Connection Size
1/4 Inch
Product Height
12 5/8 Inches
Product Width
39 5/16 Inches
Product Depth
9 Inches
Product Weight
31 Pounds
Shipping Height
12 9/16 Inches
Shipping Width
42 15/16 Inches
Shipping Depth
16 7/8 Inches
Shipping Weight
40 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
