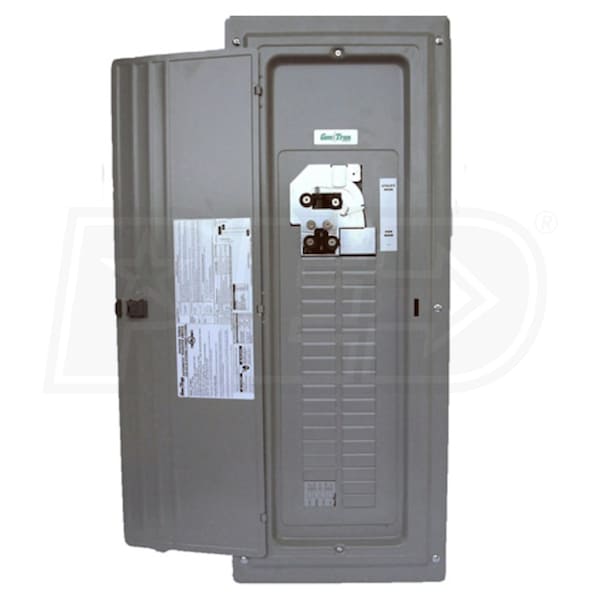

Gen-Tran 200-Amp Indoor Automatic Transfer Switch & Load Center

Model:

ATS2001D

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Gen-Tran 200-Amp Indoor Automatic Transfer Switch & Load Center
Gen-Tran 200-Amp Indoor Automatic Transfer Switch & Load Center
Model: ATS2001D
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Generator Ready
  • Makes a home ready for a home standby generator
  • Ideal during new construction or major electrical retrofit
  • Hybrid Design For Indoor Installation
  • Consolidates main load center and automatic transfer switch
  • Main Load Center
  • Accommodates up to 38 household circuits (Breakers Not Included)
  • Accepts interchangeable type branch circuit breakers
  • Also accepts Arc fault, GFCI and Surge Suppression breakers
  • Ovation Series 200-Amp Automatic Transfer Switch
  • Microprocessor-controlled and open transition
  • Circuit breaker-based switching with manual override
  • Programmable exerciser intervals
  • ATSRK Relay For Signaling Between Generator & ATS
  • Required for connection with most stationary generators
  • Accomodates PowerPause™ Load Management Modules
  • Up to 3 modules can be added (Sold Separately)
  • Manage up to 6 circuits to help avoid generator overload
  • Ability to run larger appliances when gen capacity is available
  • UL Listed

Specifications

ATS2001D
specs product image PID-5662
Overview
Weight
52 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Product Length
39 Inches
Product Width
14.3 Inches
Product Height
3.93 Inches
UPC
764260020016
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
30000 Watts
Rated Amps
200 Amps
Enclosure
NEMA 1R
Max Utility Input
200 Amps
Max Generator Input
125 Amps
Maximum Wattage
30000 Watts
UL Listed
