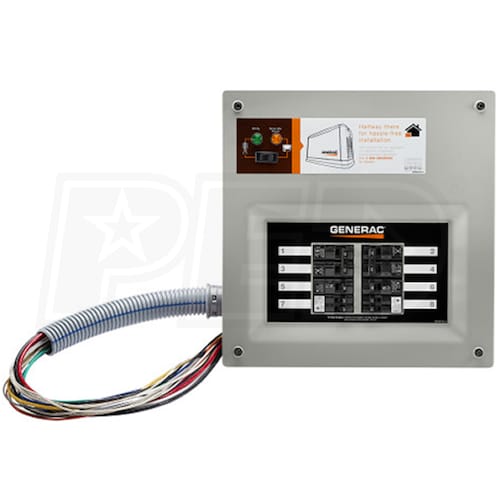

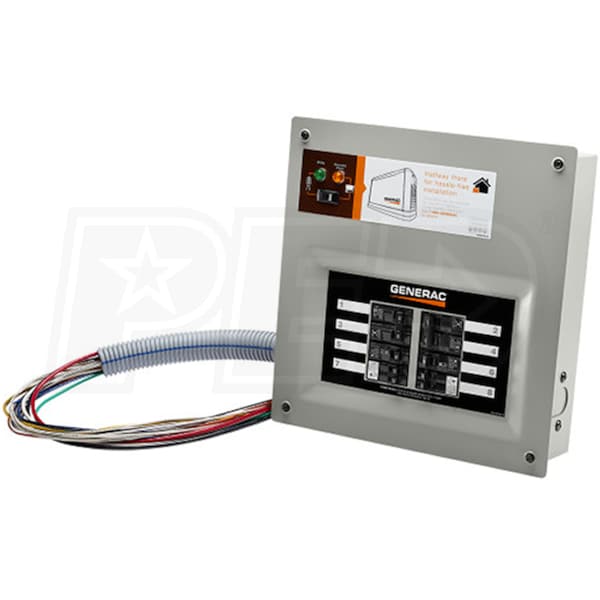

Generac 9854 - 50-Amp HomeLink™ Upgradeable Pre-Wired Manual Transfer Switch (10-16 Circuits)
Model:
9854
+
Share This Product
Recommended Accessories

Expert Recommended Accessories
Selected by Jared, our Expert
Optional Accessories
9
Model: 6389
$339.99
In-Stock
$76.50
In-Stock
$79.99
Backordered
$99.99
Only 3 In-Stock
$229.99
Only 2 In-Stock
Model: 08732-0800
$6.50
In-Stock
$79.79
Model: THP207M
$24.99
$40.99
Only 4 In-Stock
Features
Type
Manual
Amp Rating
50
Circuits
10
Voltage
120/240 Single-Phase
Enclosure
NEMA 1R
- Generac 50A HomeLink™ Upgradeable Manual Transfer Switch
- Meets your needs today & when you're ready to upgrade
- Pre-Wired 50-Amp Manual Transfer Switch
- Interchangeable breakers make it easy to reconfigure or expand
- Safely Power Hard-Wired Circuits
- The electricity you need to power your furnace, sump pumps, etc.
- From Manual to Automatic - Essential Circuit Coverage
- From a portable to a standby generator (11kW Max)
- Ready When You Are (By Cert Electrician)
- Field-upgradable to an automatic switch panel & new faceplate
- Includes 10 Total Circuits (Expands up to 16)
- (1) 30-Amp 2-Pole & (1) 20-Amp 2-Pole
- (2) 20-Amp 1-Pole & (2) 20-Amp 1-Pole Tandem
- Power Indicator Lights
- Easily see if you're on utility or generator power
- Versatile Design & Flexible & Cost Effective Installation
- Can be used w/ GFCI and Non-GFCI portable generators
- Uses 1" standard, tandem, GFCI & AFCI breakers
- Requires Power Inlet Box & Cord For Connection (Sold Separately)
- Allows you to plug your generator into an exterior wall outlet
- 5-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Di-n-butyl phthalate (DBP) which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
9854

General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Weight
27.2 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
15.4 Inches
Product Width
15.8 Inches
Product Height
4 Inches
UPC
696471071481
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12000 Watts
Rated Amps
50 Amps
Enclosure
NEMA 1R
Number of Circuit Breakers
10
Max Generator Input
50 Amps
Maximum Wattage
12000 Watts
UL Listed
Yes
Transfer Switch Circuits
20A 120V
4
20A 240V
1
30A 240V
1
Circuit Breaker Protection
Each Circuit
Reviews
(4)
Generac 9854 Reviews & Ratings
Customer Photos and Videos



Good Homeowners Manual Transfer Switch
By Kevin B
New York
Purchased 03/21/2023 |
Review Posted 04/12/2023
Generac's makes a quality transfer switch this is the third one I have purchased and installed. Easy to wire. I only wish they would offer in that did not supply the circuit breakers.
Kevin B Recommends This
Was this review helpful?
Manufacturer Response
Thank you for taking time out of your day to provide us with your valuable feedback. If you run into any questions, please give us a call at 888-436-3722!

Rating Breakdown
5/5
5/5
5/5
4/5
Pros:
Easy To Use, I'd Buy It Again

Great Product... Works Well
By Ken S.
Scotts Valley, California
Purchased 08/06/2021 |
Review Posted 10/18/2021
This transfer switch saves a lot of pain as previously power outages (we get a lot because of the lousy power company's infra-structure) meant running 20/30 amp cables out windows on 2 floors of house and then extensions everywhere for minimal coverage.
Now just have to connect one cable to generator and flip the relay switch.
Couple of notable features:
1. Transfer from generator back to grid power is smooth, no bump in middle of transfer so even computer connections, internet, etc. see not interruption.
2. Flexibility with using common circuit breakers so I populated a lot with duplex breakers and GFCI. (wish there was a return on the new ones I didn't need)
3. The one thing that is missing on the product is an alarm when the grid power returns so that some warning can be given and the generator can be shut down. With everything running in home - fridges, freezer, entertainment, lights, plugs we miss any awareness of thie grid returning to normal.
Now just have to connect one cable to generator and flip the relay switch.
Couple of notable features:
1. Transfer from generator back to grid power is smooth, no bump in middle of transfer so even computer connections, internet, etc. see not interruption.
2. Flexibility with using common circuit breakers so I populated a lot with duplex breakers and GFCI. (wish there was a return on the new ones I didn't need)
3. The one thing that is missing on the product is an alarm when the grid power returns so that some warning can be given and the generator can be shut down. With everything running in home - fridges, freezer, entertainment, lights, plugs we miss any awareness of thie grid returning to normal.
Ken S. Recommends This
Was this review helpful?
Expert Response
You may be interested in an alarm like this... Reliance Controls PowerBACK Utility Power Return Alert

Dale V.
Power Equipment Expert
Manufacturer Response
Thank you for taking time out of your day to provide us with your valuable feedback. If you run into any questions, please give us a call at 888-436-3722!

Rating Breakdown
4/5
5/5
5/5
4/5
Pros:
Reliable, High Quality, Features, Easy To Use
Cons:
Missing alarm when grid power returns

Does What It Is Suppose To
By Steven R.
DANVILLE, Virginia
Purchased 08/23/2021 |
Review Posted 10/05/2021
Seems to do what it suppose to. It will take care of my needs when using backup generator.
Steven R. Recommends This
Was this review helpful?
Manufacturer Response
Thank you for taking time out of your day to provide us with your valuable feedback. If you run into any questions, please give us a call at 888-436-3722!

Rating Breakdown
4/5
4/5
5/5
4/5
Pros:
Easy To Use, Quiet, Reliable, High Quality
Cons:
Expensive, L

Great Product
By Daniel W.
DANVILLE, Virginia
Purchased 02/15/2021 |
Review Posted 03/08/2021


Installation was easy and the quality of the equipment is great. Service was great from Electric Generators Direct. They are working great so far!!
Daniel W. Recommends This
Was this review helpful?
Manufacturer Response
Thank you for taking time out of your day to provide us with your valuable feedback. If you run into any questions, please give us a call at 888-436-3722!

Rating Breakdown
5/5
5/5
5/5
4/5
Pros:
Durable, Features, Reliable, High Quality
