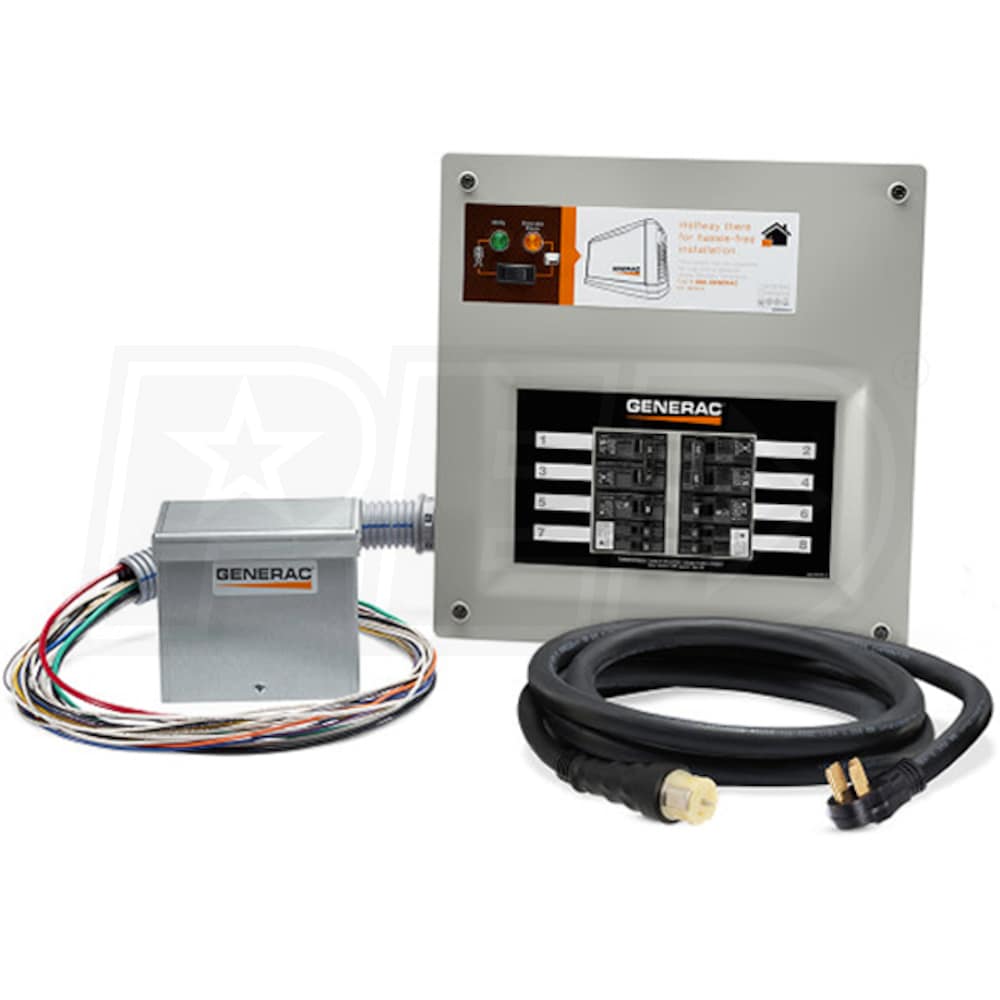

Generac 9855 - 50-Amp HomeLink™ Upgradeable Pre-Wired Manual Transfer Switch System (Alum.)
Model:
9855
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jared, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Generac 50-A HomeLink™ Upgradeable Manual Transfer Switch
- Meets your needs today & when you're ready to upgrade
- Pre-Wired 50-Amp Manual Transfer Switch
- Interchangeable breakers make it easy to reconfigure or expand
- Also Includes
- (1) 10' 50-Amp (CS6364) & NEMA 14-50P Power Cord
- (1) 50-Amp (CS6364) Aluminum Power Inlet Box (must be hardwired)
- Safely Power Hard-Wired Circuits
- The electricity you need to power your furnace, sump pumps, etc.
- From Manual to Automatic - Essential Circuit Coverage
- From a portable to a standby generator (11kW Max)
- Ready When You Are (By Cert Electrician)
- Field-upgradable to an automatic switch panel & new faceplate
- Includes 10 Total Circuits (Expands up to 16)
- (1) 30-Amp 2-Pole & (1) 20-Amp 2-Pole
- (2) 20-Amp 1-Pole & (2) 20-Amp 1-Pole Tandem
- Versatile Design & Flexible & Cost Effective Installation
- Can be used w/ GFCI and Non-GFCI portable generators
- Uses 1" standard, tandem, GFCI & AFCI breakers
- *Req's 50-Amp 2-Pole Breaker in Main Load Center (Not Included)
- 5-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Di-n-butyl phthalate (DBP) which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
9855
General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Weight
33 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
15.4 Inches
Product Width
15.8 Inches
Product Height
4 Inches
UPC
696471071498
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12000 Watts
Rated Amps
50 Amps
Enclosure
NEMA 1R
Number of Circuit Breakers
10
Max Generator Input
50 Amps
Maximum Wattage
12000 Watts
UL Listed
Yes
Transfer Switch Circuits
20A 120V
4
20A 240V
1
30A 240V
1
Circuit Breaker Protection
Each Circuit
Plugs
CS6364/5 - 50-Amp Twistlock
1
Cord
Cord Length
10 feet
Connection Type
Male
Prongs
Four-Prong
Wire Gauge
10 Gauge
Plug Type
14-50R
