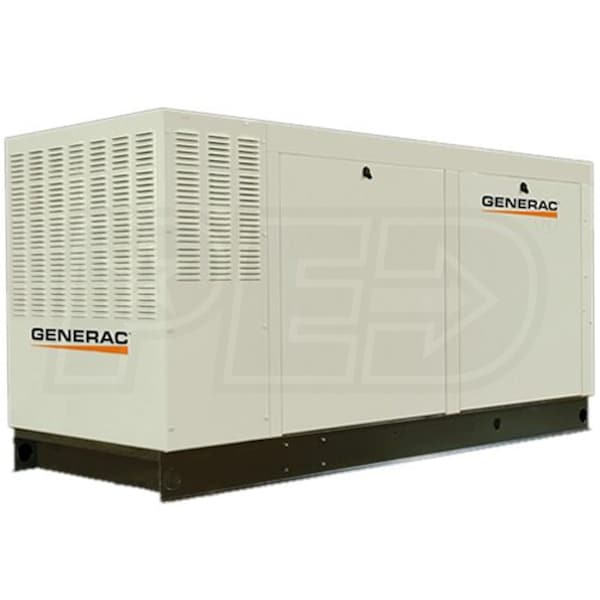

Generac Commercial Series 80 kW Standby Generator (120/240V 3-Phase)(LP)

Model:

QT08054JVAX

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Generac Commercial Series 80 kW Standby Generator (120/240V 3-Phase)(LP)
Generac Commercial Series 80 kW Standby Generator (120/240V 3-Phase)(LP)
Model: QT08054JVAX
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Emergency

Style

Standby (Liquid Cooled)

Run Watts

80,000 Rated Watts

Voltage

120/240 Three-Phase

Fuel

LP

Engine

Generac 5.4L V-8

  • Generac QT 80 Emergency Standby Generator
  • Designed for small commercial buildings
  • For 120/240 Volt Three-Phase applications
  • Liquid Propane (LP) Powered
  • WILL NOT WORK with NG fuel source
  • Solid State, Frequency Compensated Voltage Regulation
  • Provides fast response to changing load conditions
  • Allows for digital voltage regulation of +/- 1%
  • 5.4L Generac V-8 Automotive-Style Engine
  • Brushless Alternator - Less Than .25 % THD
  • Improved frequency (HZ) regulation for cleaner power
  • Digital Nexus™ Controller
  • Two-Line, tri-lingual LCD display for ease of use
  • Provides service & maintenance intervals
  • Automatic Shutdown Safety Feature
  • High coolant temp, low coolant, low oil pressure and overspeed
  • Quiet-Test™ Mode
  • Low-speed exercise mode for quieter weekly tests; 65 dB @ 23'
  • Sound Attenuated, Acoustically Designed Aluminum Enclosure
  • Corrosion-resistant material ideal for salty air conditions
  • Mobile Link (Sold Separately)
  • Easily check generator status via computer, tablet or smartphone
  • Transfer Switch (Sold Separately)
  • Customize your system based on your actual application
  • 2-Year Limited Warranty
  • ^Please Note - Requires Loading Dock, Forklift or Crane For Delivery^
California residents see
Warning: This product can expose you to chemicals including Carbon monoxide which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

QT08054JVAX
specs product image PID-50732
Overview
Weight
2035 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Style
Standby Generator
Product Length
115.1 Inches
Product Width
36.8 Inches
Product Height
59.9 Inches
UPC
696471619232
Product Specs
Voltage
120/240 Three-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
80000 Watts
Fuel Type
LP
LP Power Capacity
80000 Watts
LP Fuel Consumption @ 50% Load
6.62 gallons/hr
LP Fuel Consumption @ 100% Load
12.78 gallons/hr
Rated Amps
241 Amps
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
65 Test (74 Run) dbA
Transfer Switch
Automatic (Not Included)
Battery
Not Included (525 CCA)
Enclosure
Aluminum
Circuit Breaker Size
300 Amps
Mounting Pad
Concrete (Not Included)
Cooling System
Liquid Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
Generac 5.4L V-8
Starting System
12v Auto Start
CC
5400 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
2 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
