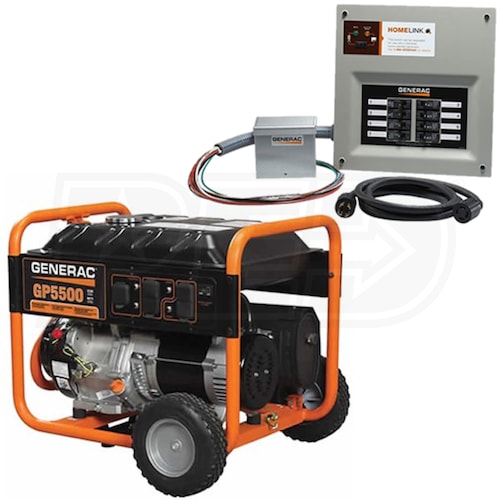

Generac 5939 - GP5500 5500 Watt Portable Generator (49-State) w/ Power Transfer Kit

Model:

EGD-5939KIT

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Generac 5939 - GP5500 5500 Watt Portable Generator (49-State) w/ Power Transfer Kit
Generac 5939 - GP5500 5500 Watt Portable Generator (49-State) w/ Power Transfer Kit
Model: EGD-5939KIT
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Emergency

Style

Portable

Run Watts

5,500 Rated Watts

Surge Watts

6,875
Starting Watts

Fuel

Gasoline

Engine

Generac

  • Emergency Power Bundle (Generator & Power Transfer Kit)
  • Provide emergency power to your panel when you need it most
  • 5500 Watt Portable Generator
  • Ideal for restoring power to mission-critical appliances
  • Generac OHV Engine w/ Low Oil Shutdown
  • Prevents engine damage and provides longer engine life
  • 7.2-Gallon Steel Fuel Tank w/ Fuel Gauge
  • Provides up to 10 hours of power at 1/2 load
  • Heavy-Duty Cradle & Mobility Kit
  • Protects the generator and makes it easy to move
  • Pre-Wired 30-Amp Manual Transfer Kit For 8-10 Circuits (6854)
  • Interchangeable breakers make it easy to reconfigure or expand
  • Power Transfer Kit Includes:
  • 30-Amp Manual Transfer Switch
  • 30-Amp Aluminum Power Inlet Box (Must Be Hardwired)
  • 10' 30-Amp (L14-30) Power Cord
  • Wiring Harness & Connectors, Conduit and Fittings
  • Installation Manual
  • PLEASE NOTE - Requires 2-Pole 50-Amp Breaker in Main Load Center
  • 2 Year Warranty (Generator) & 5 Year Warranty (Transfer Switch)
  • Product Includes
    • (1) Generac 5939 - GP5500 5500 Watt Portable Generator (49-State) (5939)
    • (1) Generac 6854 - 30-Amp HomeLink™ Upgradeable Pre-Wired Manual Transfer Switch System (Alum.) (6854)
California residents see
Warning: This product can expose you to chemicals including Carbon monoxide which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

Plug Types
NEMA 5-20R (Wall-Type)
NEMA 5-20R (Wall-Type)
NEMA L14-30R
Product Includes
  • (1) Generac 5939 - GP5500 5500 Watt Portable Generator (49-State) (5939)
  • (1) Generac 6854 - 30-Amp HomeLink™ Upgradeable Pre-Wired Manual Transfer Switch System (Alum.) (6854)
EGD-5939KIT
specs product image PID-8961
Overview
Assembly Required
Yes
Weight
199 Pounds
CARB Compliant
No
Made in USA
No
Consumer Warranty
2 Years
Commercial Warranty
1 Year
Product Style
Portable Generator
Product Length
27.25 Inches
Product Width
27 Inches
Product Height
25 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
5500 Watts
Surge Watts
6875 Watts
Fuel Type
Gasoline
Rated Amps
23 Amps
Portability Kit
Never Flat Wheels
Tank Size
7.2 Gallons
Run Time @ 50% Load
10 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
Not Measured by Manufacturer
Idle Control
No
Hour Meter
Yes
Voltage Meter
No
Lifting Eye
No
Transfer Switch
Manual (Included)
Battery
Not Applicable
Grade Type
Emergency
Engine
Engine Brand
Generac
Starting System
Recoil Start
CC
389 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
1 Year
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Transfer Switch Circuits
15A 120V
2
20A 120V
2
20A 240V
1
Plugs
NEMA 5-20R - Wall-Type
2
NEMA L14-30R
1
Overview
Assembly Required
Yes
Weight
170.9 Pounds
CARB Compliant
No
Made in USA
No
Consumer Warranty
2 Years
Commercial Warranty
1 Year
Product Style
Portable Generator
Product Length
27.25 Inches
Product Width
27 Inches
Product Height
25 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
5500 Watts
Surge Watts
6875 Watts
Fuel Type
Gasoline
Rated Amps
23 Amps
Portability Kit
Never Flat Wheels
Tank Size
7.2 Gallons
Run Time @ 50% Load
10 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
Not Measured by Manufacturer
Idle Control
No
Hour Meter
Yes
Voltage Meter
No
Lifting Eye
No
Battery
Not Applicable
Grade Type
Emergency
Engine
Engine Brand
Generac
Starting System
Recoil Start
CC
389 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
1 Year
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - Wall-Type
2
NEMA L14-30R
1
General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Weight
27.2 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
15.4 Inches
Product Width
15.8 Inches
Product Height
4 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 Amps
Enclosure
NEMA 1R
Number of Circuit Breakers
8
Max Generator Input
30 Amps
Maximum Wattage
7500 Watts
UL Listed
Yes
Transfer Switch Circuits
15A 120V
5
20A 120V
1
30A 240V
1
Circuit Breaker Protection
Each Circuit
Plugs
NEMA L14-30R
1
Cord
Cord Length
10 feet
Connection Type
Male
Prongs
Four-Prong
Wire Gauge
10 Gauge
