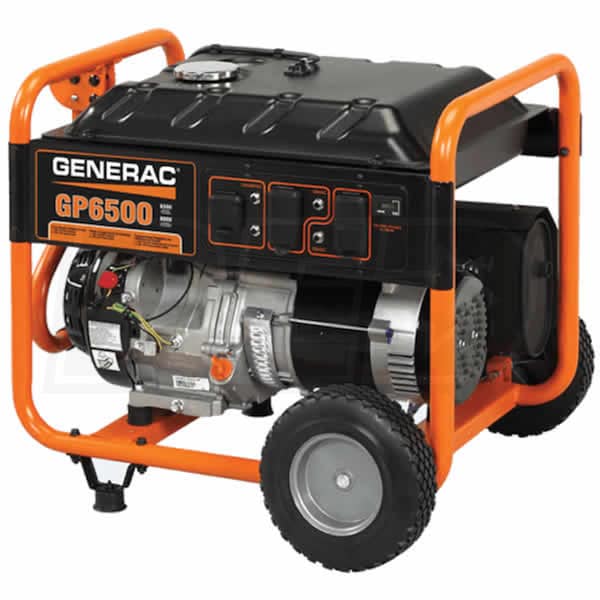

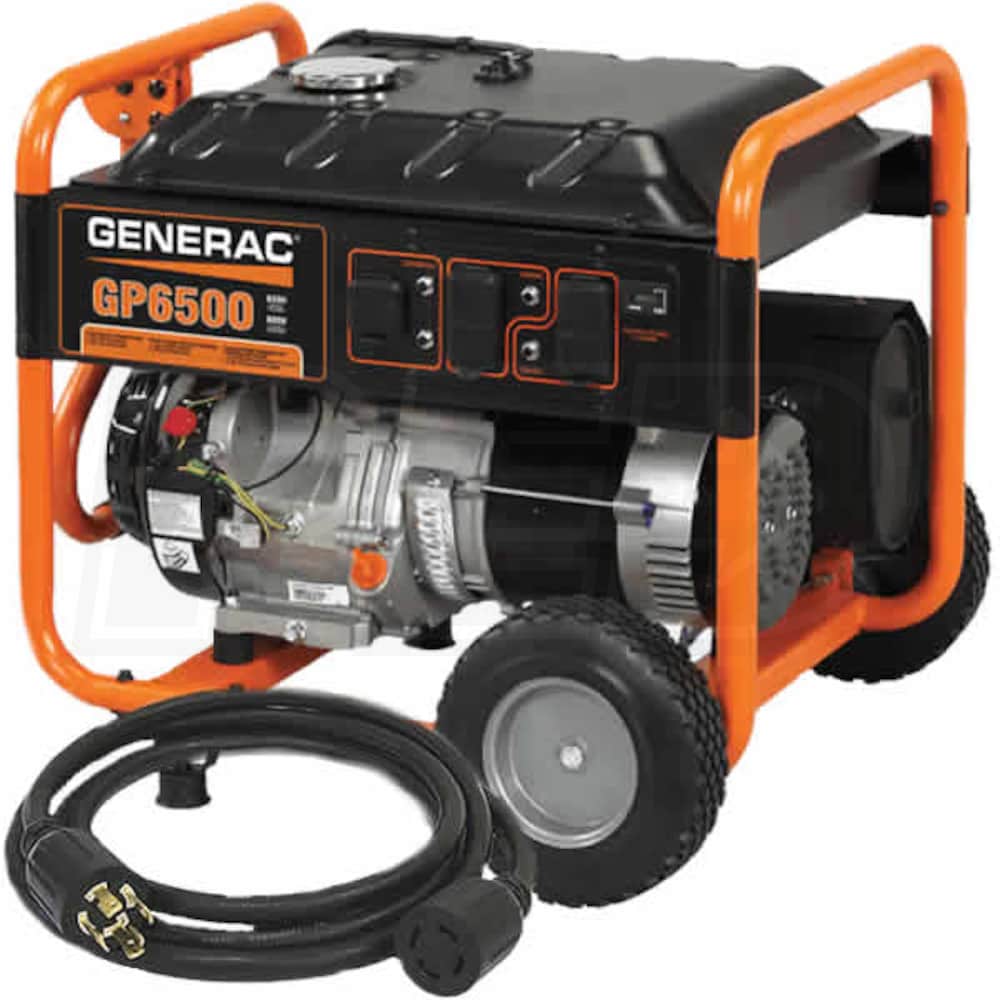

Generac GP6500 6500 Watt Portable Generator with 30 Amp Generator Cord

Model:

EGD-5940CORDKIT

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Generac GP6500 6500 Watt Portable Generator with 30 Amp Generator Cord
Generac GP6500 6500 Watt Portable Generator with 30 Amp Generator Cord
Model: EGD-5940CORDKIT
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Emergency

Style

Portable

Run Watts

6,500 Rated Watts

Surge Watts

8,000
Starting Watts

Fuel

Gasoline

Engine

Generac

  • *Bonus* 30-Amp (4-Prong 40-Foot) Generator Power Cord
  • Connect a generator and transfer switch with a single cord
  • Emergency Generator
  • Generates plenty of electricity to weather the storm
  • Powers refrigerator, sump pump, furnace fan, lights and more
  • Generac OHV Engine
  • High-quality engine with automatic low oil shutdown
  • Covered Outlets
  • Provides added safety and extends the life of the generator
  • Hour Meter
  • Built-in resets remind you of scheduled maintenance
  • Steel Fuel Tank and Gauge
  • Generates power up to 9 hours at half load
  • Mobility Kit
  • Never-flat tires and locking fold-down handles
  • 2-Year Residential Warranty/ 1-Year Commercial Warranty
  • Product Includes
    • (1) Generac 5940 GP6500 - 6500 Watt Portable Generator (5940)
    • (1) Gen-Tran 30-Amp (4-Prong 40-Foot) Generator Power Cord (RJB10440)
California residents see
Warning: This product can expose you to chemicals including Carbon monoxide which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

Plug Types
NEMA 5-20R (Wall-Type)
NEMA 5-20R (Wall-Type)
NEMA L14-30R
Product Includes
  • (1) Generac 5940 GP6500 - 6500 Watt Portable Generator (5940)
  • (1) Gen-Tran 30-Amp (4-Prong 40-Foot) Generator Power Cord (RJB10440)
EGD-5940CORDKIT
specs product image PID-69187
Overview
Assembly Required
Yes
Weight
184 Pounds
Made in USA
No
Consumer Warranty
2 Years
Commercial Warranty
1 Year
Product Style
Portable Generator
Product Length
27.25 Inches
Product Width
27 Inches
Product Height
25 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
6500 Watts
Surge Watts
8000 Watts
Fuel Type
Gasoline
Rated Amps
27 Amps
Portability Kit
Never Flat Wheels
Tank Size
7.2 Gallons
Run Time @ 50% Load
10 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
Not Measured by Manufacturer
Idle Control
No
Hour Meter
Yes
Voltage Meter
No
Lifting Eye
No
Battery
Not Applicable
Grade Type
Emergency
Engine
Engine Brand
Generac
Starting System
Recoil Start
CC
389 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
1 Year
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - Wall-Type
2
NEMA L14-30R
1
Overview
Assembly Required
Yes
Weight
184 Pounds
Made in USA
No
Consumer Warranty
2 Years
Commercial Warranty
1 Year
Product Style
Portable Generator
Product Length
27.25 Inches
Product Width
27 Inches
Product Height
25 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
6500 Watts
Surge Watts
8000 Watts
Fuel Type
Gasoline
Rated Amps
27 Amps
Portability Kit
Never Flat Wheels
Tank Size
7.2 Gallons
Run Time @ 50% Load
10 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
Not Measured by Manufacturer
Idle Control
No
Hour Meter
Yes
Voltage Meter
No
Lifting Eye
No
Battery
Not Applicable
Grade Type
Emergency
Engine
Engine Brand
Generac
Starting System
Recoil Start
CC
389 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
1 Year
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - Wall-Type
2
NEMA L14-30R
1
RJB10440
Overview
Weight
10 Pounds
Consumer Warranty
1 Year
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 Amps
Maximum Wattage
7500 Watts
UL Listed
Yes
Plugs
NEMA L14-30R
1
Cord
Cord Length
40 feet
Connection Type
Male
Prongs
Four-Prong
Wire Gauge
10 Gauge
