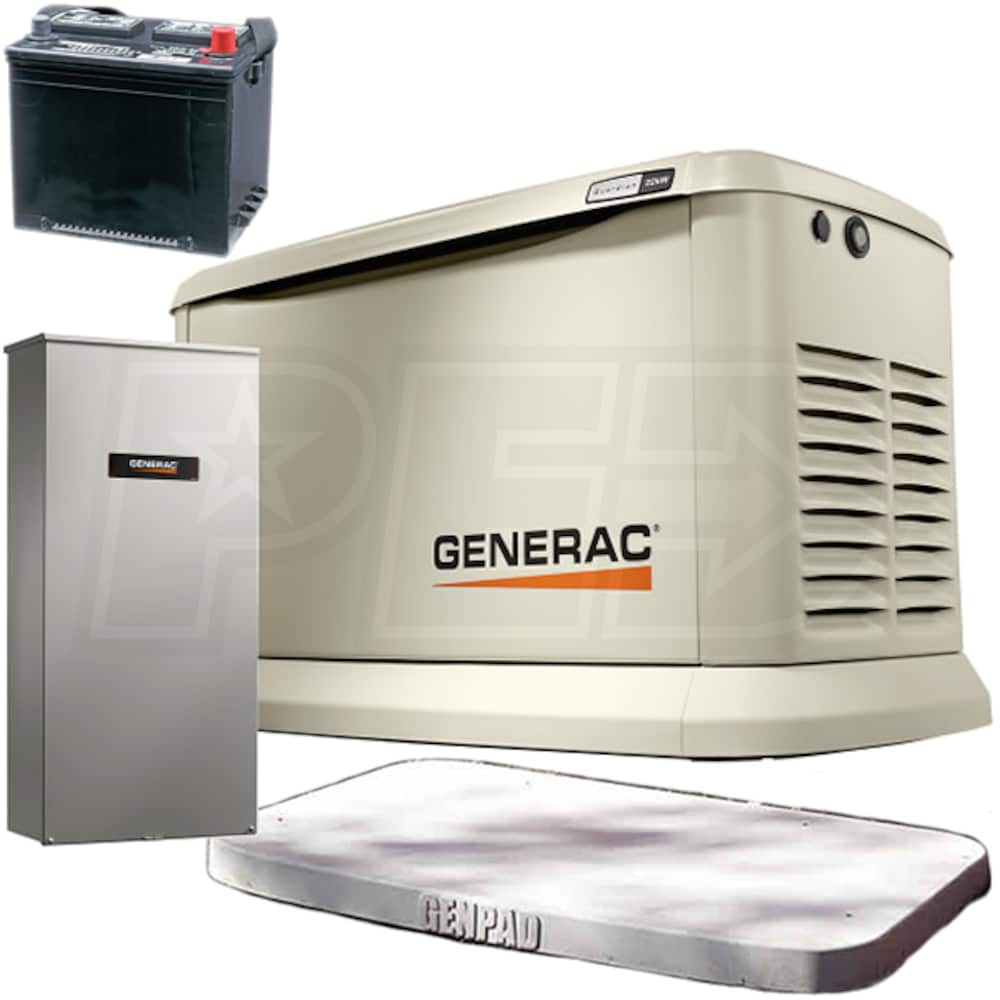

Generac Synergy™ 20kW Variable Speed Standby Generator (200A Service Disc.+ Power Mgmt.) + 3" GenPad™ + Battery

Model:

EGD-7040KIT

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Generac Synergy™ 20kW Variable Speed Standby Generator (200A Service Disc.+ Power Mgmt.) + 3
Generac Synergy™ 20kW Variable Speed Standby Generator (200A Service Disc.+ Power Mgmt.) + 3" GenPad™ + Battery
Model: EGD-7040KIT
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Emergency

Style

Standby (Air Cooled)

Run Watts

20,000 Rated Watts

Voltage

120/240 Single-Phase

Fuel

LP/Natural Gas

Engine

Generac OHVI

  • 20kW (LPG) / 18kW (NG) Generac Synergy
  • Quiet, tests at only 57 dB(A) & runs at 63 dB(A) @ 23 feet
  • 5-Year Limited Warranty
  • Plus 24/7•365 Customer Support so you have your questions answered when its convenient for you
  • Generac's G-Force Engine
  • Varies engine RPMs based on demand; unlike traditional standbys
  • Automatic Voltage Regulator (AVR) - Less Than 1.5% THD
  • Monitors demand & adjusts engine speed; Save $ & use less fuel
  • Ensures 60 Hz output, even at lower speeds for very clean power
  • 200-Amp Generac Synergy Automatic Transfer Switch
  • DPM technology allows for the smart control of 2 air conditioners
  • Intelligently manage 4 more loads w/ add. PMM Kit/Mods. (Sold Separately)
  • Service Entrance Rated w/ NEMA 3R Aluminum Enclosure
  • Mounts between meter & main service panel; Load & Line breakers
  • Evolution™ Digital Controller
  • Multilingual, 2-Line LCD display for simple, straightforward operation
  • Programmable-exerciser lets you set how often & what time generator will self-test
  • Tough, Durable All-Aluminum Sound Attenuated Enclosure
  • RhinoCoat powder-coated finish keeps enclosure protected from the elements
  • Generac OHVI Air-Cooled Engine
  • Full pressure lubrication system w/ 2 year oil change interval
  • Optimized muffler and resonator for dramatically quieter operation
  • Installation Flexibility*
  • Can be installed within 18" of a building; *Always check local building codes
  • Generac Standby Generators & Engines - Built In The USA*
  • Built in the USA using domestic & foreign parts
  • Additional Features:
  • 12" Flexible fuel line and Direct-To-Dirt composite mounting pad
  • Built-in Battery Charger
  • Product Includes
    • (1) Generac Synergy™ 20kW Variable Speed Standby Generator (200A Service Disc.+ Power Mgmt.) (7040)

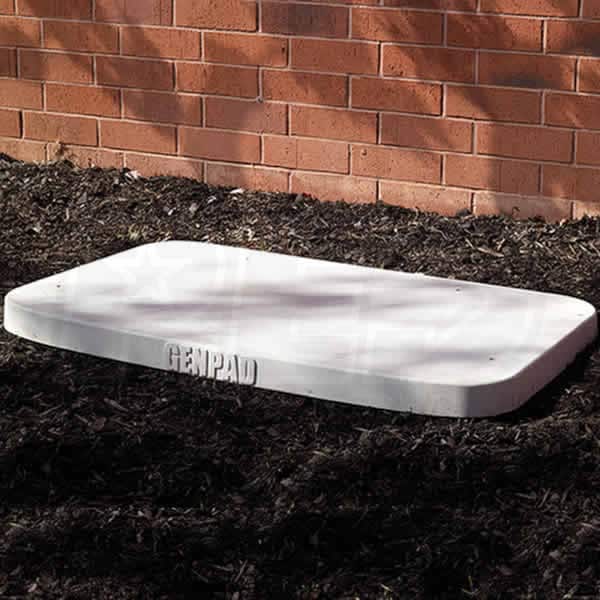

    • (1) GenPad™ Standard 3" Composite Cement Pad for Generac 9kW-26kW (2016+) (10000007852)

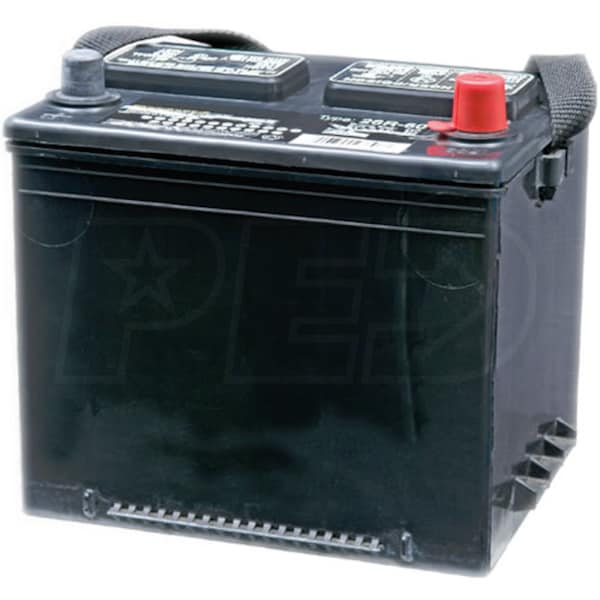

    • (1) UN2794, Battery, Wet, Filled with Acid,8 Emergency 800-424-9300 (5819)

Specifications

Product Includes
  • (1) Generac Synergy™ 20kW Variable Speed Standby Generator (200A Service Disc.+ Power Mgmt.) (7040)
  • (1) GenPad™ Standard 3" Composite Cement Pad for Generac 9kW-26kW (2016+) (10000007852)
  • (1) UN2794, Battery, Wet, Filled with Acid,8 Emergency 800-424-9300 (5819)
EGD-7040KIT
specs product image PID-82024
Overview
Weight
471 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
48 Inches
Product Width
25 Inches
Product Height
29 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
20000 Watts
Surge Watts
20000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
18000 Watts
LP Power Capacity
20000 Watts
NG Fuel Consumption @ 50% Load
200 ft³/hr
NG Fuel Consumption @ 100% Load
282 ft³/hr
LP Fuel Consumption @ 50% Load
1.84 gallons/hr
LP Fuel Consumption @ 100% Load
3.5 gallons/hr
Rated Amps
83.3 Amps
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
63 Run dbA
Idle Control
Yes
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
200-Amps
Battery
Included
Enclosure
Aluminum
A/C Ton Rating
2 x 5-Tons
Mounting Pad
Composite (Included)
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Sold Separately
ATS Load Shedding
Built-In
ATS Poles
2 Poles
ATS Service Disconnect
Yes
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
Generac OHVI
Starting System
12v Auto Start
CC
999 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Low Oil Alert/Shutdown
Yes
Overview
Weight
471 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
48 Inches
Product Width
25 Inches
Product Height
29 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
20000 Watts
Surge Watts
20000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
18000 Watts
LP Power Capacity
20000 Watts
NG Fuel Consumption @ 50% Load
200 ft³/hr
NG Fuel Consumption @ 100% Load
282 ft³/hr
LP Fuel Consumption @ 50% Load
1.84 gallons/hr
LP Fuel Consumption @ 100% Load
3.5 gallons/hr
Rated Amps
83.3 Amps
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
63 Run dbA
Idle Control
Yes
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
200-Amps
Battery
Not Included (540 CCA)
Enclosure
Aluminum
A/C Ton Rating
2 x 5-Tons
Mounting Pad
Composite (Included)
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Sold Separately
ATS Load Shedding
Built-In
ATS Poles
2 Poles
ATS Service Disconnect
Yes
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
Generac OHVI
Starting System
12v Auto Start
CC
999 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Low Oil Alert/Shutdown
Yes
10000007852
General Information
Product Category
Generator Accessories
Overview
Product Category
Generator Accessories
Weight
189 Pounds
Product Length
54 Inches
Product Width
31 Inches
Product Height
3 Inches
Overview
Weight
30 Pounds
Product Length
8.7 Inches
Product Width
6.8 Inches
Product Height
7.6 Inches
Product Specs
Frequency
60 Hertz
