Generac Guardian® 22kW Standby Generator System (200A Service Disconnect + AC Shedding) w/ Wi-Fi + QwikHurricane® Pad + Battery
Model:
EGD-70432KIT-QT8200
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jared, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Emergency
Style
Standby (Air Cooled)
Run Watts
22,000 Rated Watts
Voltage
120/240 Single-Phase
Fuel
LP/Natural Gas
Engine
Generac OHVI
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- 22kW (LPG) / 19.5kW (NG) Guardian Air-Cooled Standby Generator
- Protects your home and family during a power outage
- Digital Power Management (DPM) protects against overload
- Includes Mobile Link™ Wi-Fi Remote Monitoring*
- Monitor generator status on a smart phone, tablet or PC
- *Requires internet connection and wireless router
- Includes 200-Amp Service Entrance Rated Automatic Smart Switch
- Installs between main meter & service panel for faster & less costly installation
- DPM technology allows for the Smart Control of (4) A/C units
- Great for homes with multiple Air conditioners (24 VAC controlled)
- Add Up To (8) Generac Load Managers (Sold Separately)
- Frequency (Hz) monitoring design, no control wire required
- Versatile design, easily prioritize loads & lock-out non-essential loads
- 5-Year Limited Warranty + 24/7-365 Customer Support
- Have your questions answered when it's convenient for you
- Generac's G-Force Engine
- Specifically designed for the demanding environment standby generators endure
- Full pressure lubrication system w/ 2 year oil change interval
- Operates On Clean Burning, Efficient Natural Gas or LP (Vapor)
- Connects to your existing LP or natural gas fuel supply
- True Power Electrical Technology
- Less than 5% Total Harmonic Distortion (THD) for utility grade power
- Automatic Digital Voltage Regulation (+/-1%)
- Allows for faster response time & maximum motor starting ability
- Evolution™ 2.0 Digital Controller
- Multilingual, 2-Line LCD display for simple, straightforward operation
- Programmable-exerciser lets you set how often & what time generator will self-test
- Quiet-Test™ Self-Test Mode
- Low RPM, 5 or 12 minute test for reduced noise and fuel consumption
- Tough, Durable All-Aluminum Sound Attenuated Enclosure
- RhinoCoat™ powder-coated finish keeps enclosure protected from the elements
- Installation Flexibility*
- Can be installed within 18" of a building; *Always check local building codes
- Generac Standby Generators & Engines - Built In The USA*
- Built in the USA using domestic & foreign parts
- Also Includes:
- Flexible fuel line and Built-in Battery Charger
- Automatic Transfer Switch Model # RXSW200A3

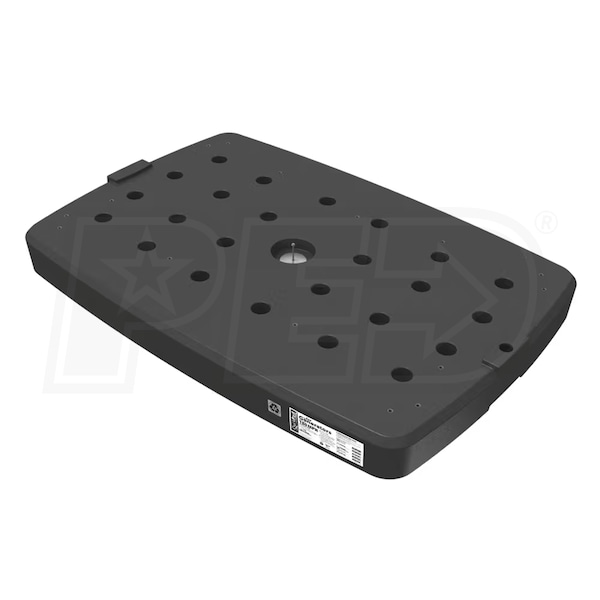

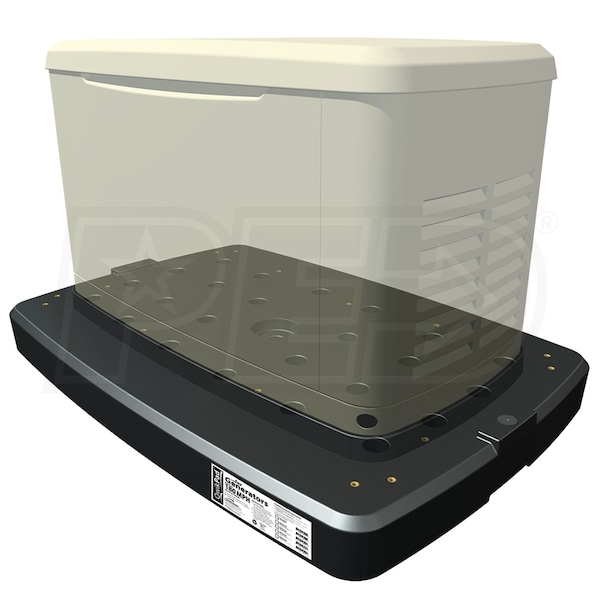

- Includes QwikHurricane® Generac Generator Pad™
- Lightweight, Easy-To-Install Design
- Forms a solidus gel and weighs 330 lbs. when filled
- (1) Generac Guardian® 22kW Standby Generator System (200A Service Disconnect + AC Shedding) w/ Wi-Fi (70432)
- (1) QwikPad® for Generators Hurricane Rated For Generac Air-Cooled Standby Generators (QT8230)
- (1) UN2794, Battery, Wet, Filled with Acid,8 Emergency 800-424-9300 (5819)
****Please Note - Product Shown With Optional Fascia Kit***
Product Includes
California residents see
Warning: This product can expose you to chemicals including Carbon monoxide which is known to the State of California to cause Developmental Harm
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
Product Includes
- (1) Generac Guardian® 22kW Standby Generator System (200A Service Disconnect + AC Shedding) w/ Wi-Fi (70432)
- (1) QwikPad® for Generators Hurricane Rated For Generac Air-Cooled Standby Generators (QT8230)
- (1) UN2794, Battery, Wet, Filled with Acid,8 Emergency 800-424-9300 (5819)
EGD-70432KIT-QT8200
General Information
Product Category
Generator - Standby
Overview
Product Category
Generator - Standby
Weight
466 Pounds
CARB Compliant
Yes
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
48 Inches
Product Width
25 Inches
Product Height
29 Inches
Installation Available
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
22000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
19500 Watts
LP Power Capacity
22000 Watts
NG Fuel Consumption @ 50% Load
203 ft³/hr
NG Fuel Consumption @ 100% Load
306 ft³/hr
LP Fuel Consumption @ 50% Load
2.53 gallons/hr
LP Fuel Consumption @ 100% Load
3.9 gallons/hr
Rated Amps
91.7 Amps
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
67 dbA
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
200-Amps
Battery
Included
Enclosure
Aluminum
Circuit Breaker Size
100 Amps
A/C Ton Rating
2 x 5-Tons
Mounting Pad
Composite (Included)
Transfer Switch Style
Service Disconnect
ATS Load Shedding
Built-In
ATS Service Disconnect
Yes
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Wi-Fi Remote Monitoring
Yes
Engine
Engine Brand
Generac OHVI
Starting System
12v Auto Start
CC
999 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
7043
General Information
Product Category
Generator - Standby
Overview
Product Category
Generator - Standby
Weight
466 Pounds
CARB Compliant
Yes
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
48 Inches
Product Width
25 Inches
Product Height
29 Inches
Installation Available
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
22000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
19500 Watts
LP Power Capacity
22000 Watts
NG Fuel Consumption @ 50% Load
203 ft³/hr
NG Fuel Consumption @ 100% Load
306 ft³/hr
LP Fuel Consumption @ 50% Load
2.53 gallons/hr
LP Fuel Consumption @ 100% Load
3.9 gallons/hr
Rated Amps
91.7 Amps
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
67 dbA
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
200-Amps
Battery
Not Included
Enclosure
Aluminum
Circuit Breaker Size
100 Amps
A/C Ton Rating
2 x 5-Tons
Mounting Pad
Composite (Included)
Transfer Switch Style
Service Disconnect
ATS Load Shedding
Built-In
ATS Service Disconnect
Yes
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Wi-Fi Remote Monitoring
Yes
Engine
Engine Brand
Generac OHVI
Starting System
12v Auto Start
CC
999 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
QT8230
General Information
Product Category
Generator Accessories
Overview
Product Category
Generator Accessories
Product Length
56.5 Inches
Product Width
38 Inches
Product Height
5 Inches
5819
Overview
Weight
30 Pounds
Product Length
8.7 Inches
Product Width
6.8 Inches
Product Height
7.6 Inches
Product Specs
Frequency
60 Hertz
